Inflatable Restraint Side Impact Module

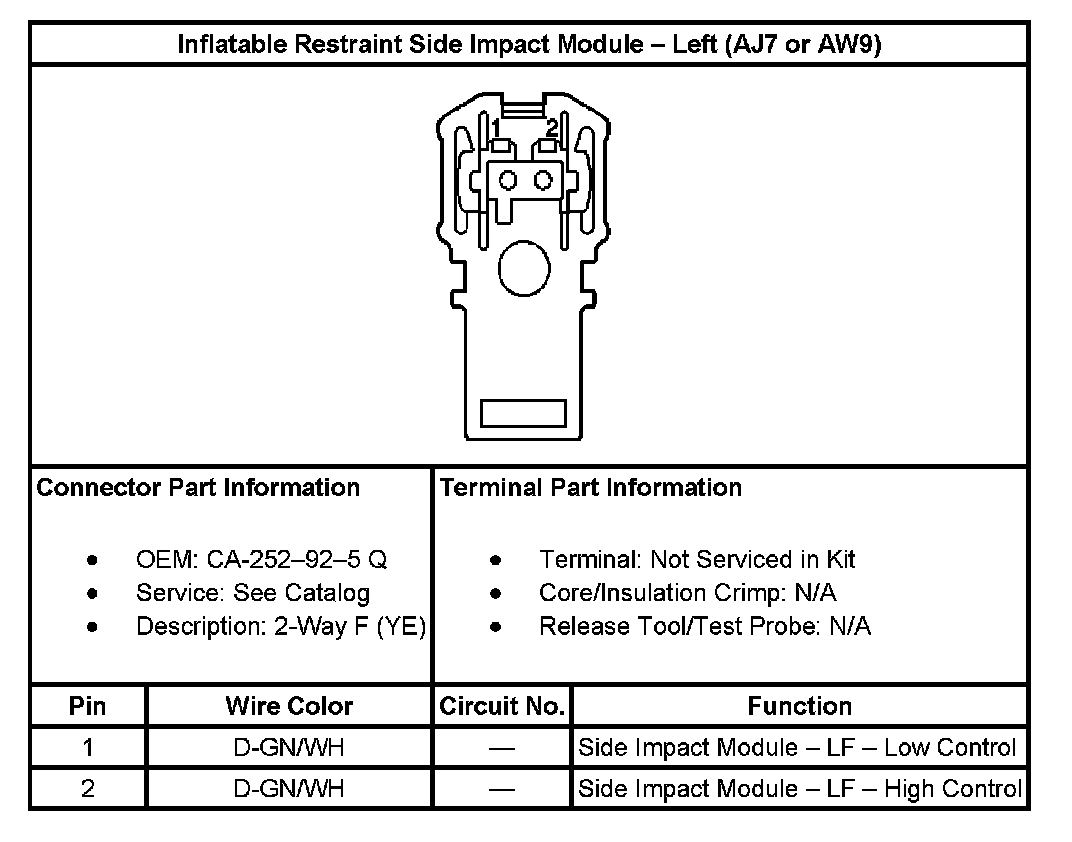

Inflatable Restraint Side Impact Module - Left (with RPO Code AJ7 Or AW9):

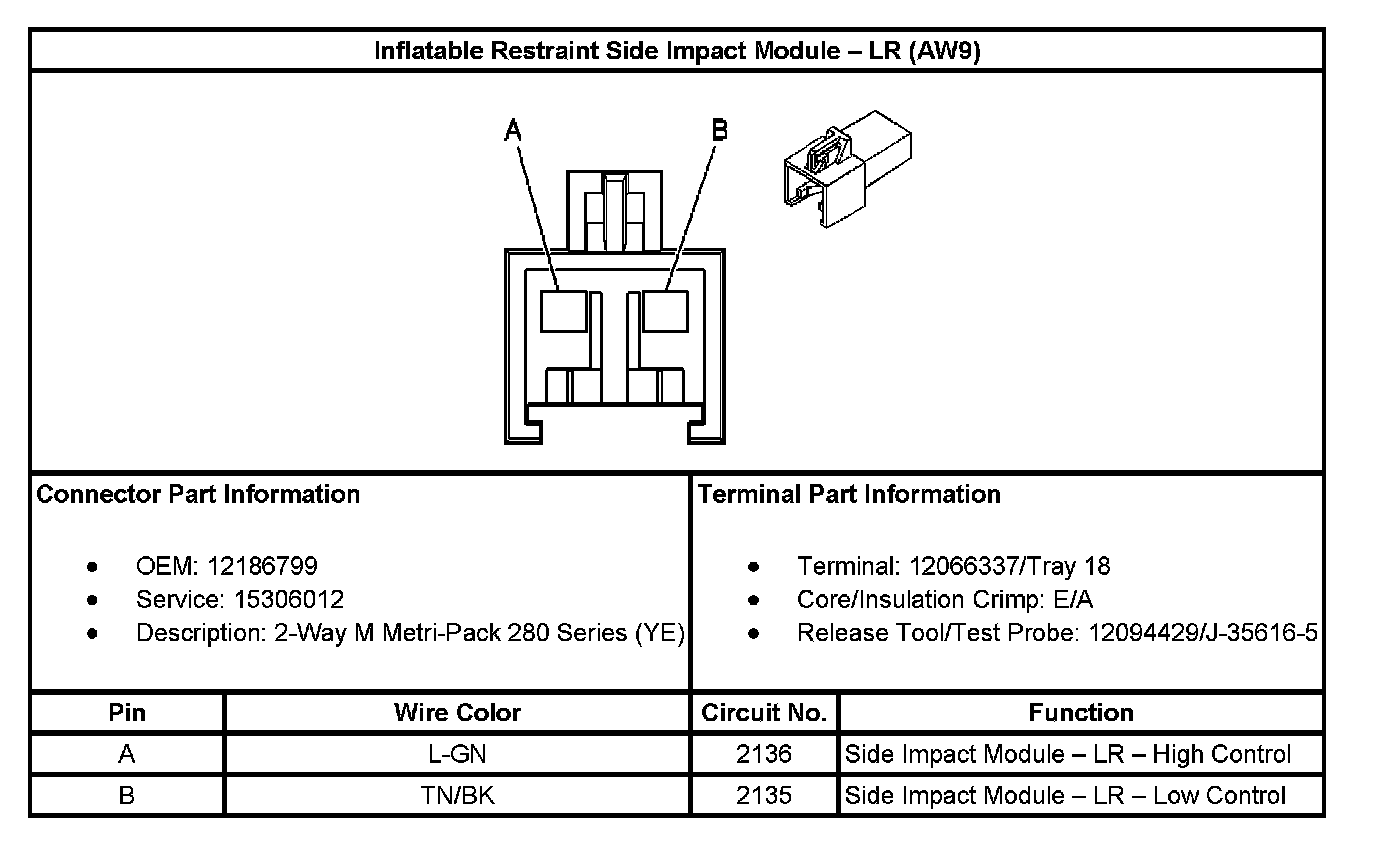

Inflatable Restraint Side Impact Module - LR (with RPO Code AW9):

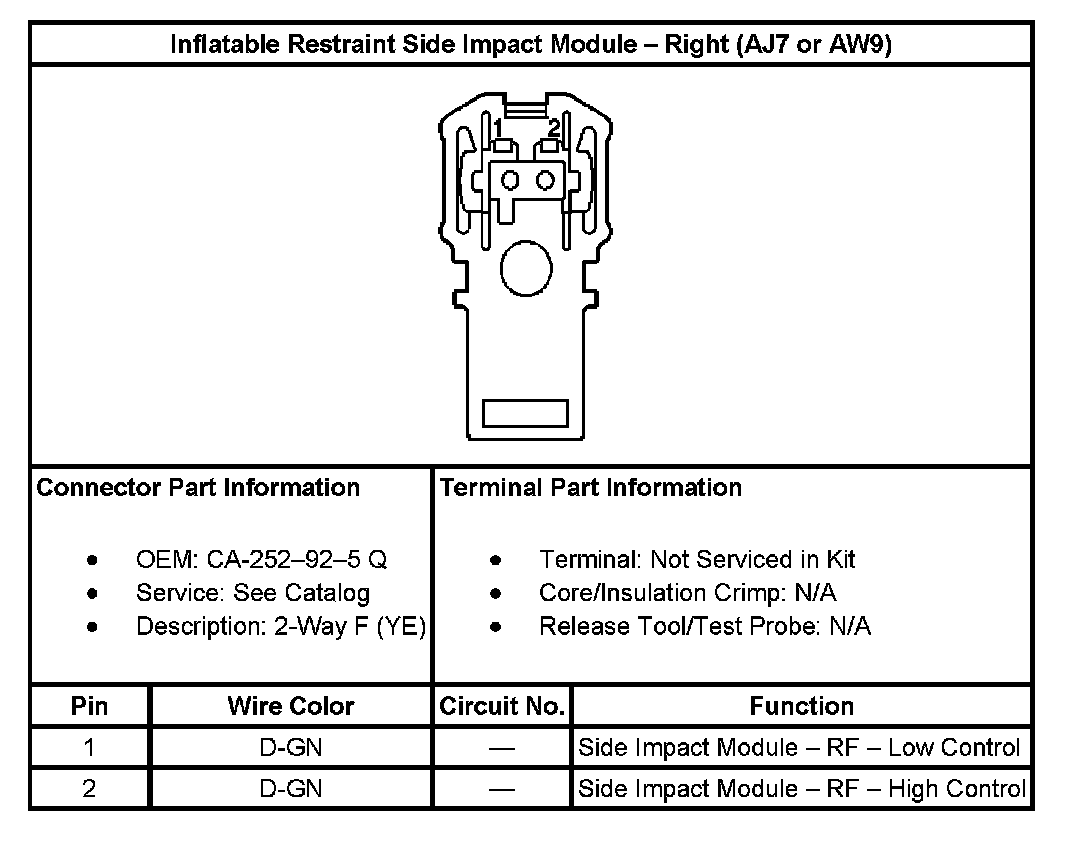

Inflatable Restraint Side Impact Module - Right (with RPO Code AJ7 Or With RPO Code AW9):

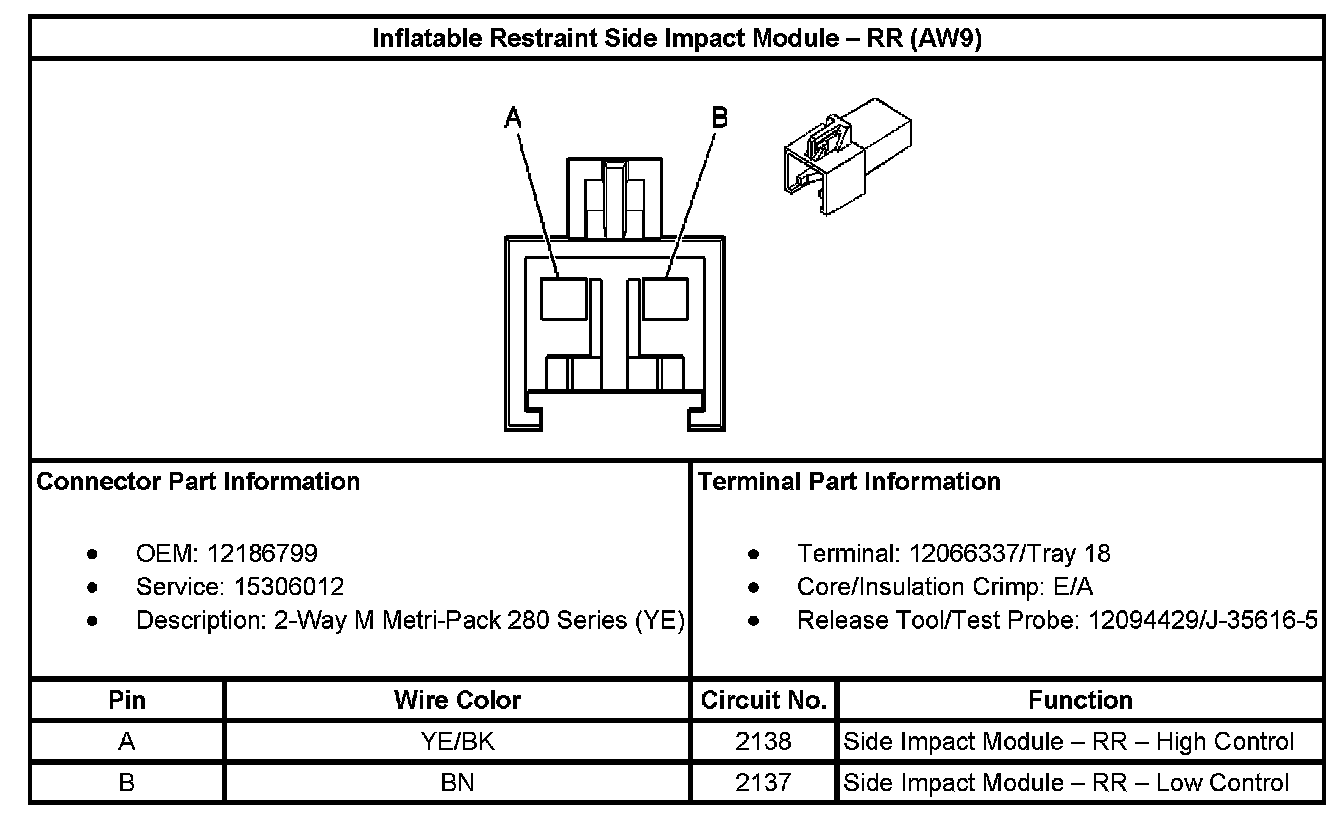

Inflatable Restraint Side Impact Module - RR (with RPO Code AW9):
