Saturn
>>
2006
>>
RELAY AWD V6-3.5L VIN L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Antitheft and Alarm Systems
>>
System Diagram
System Diagram

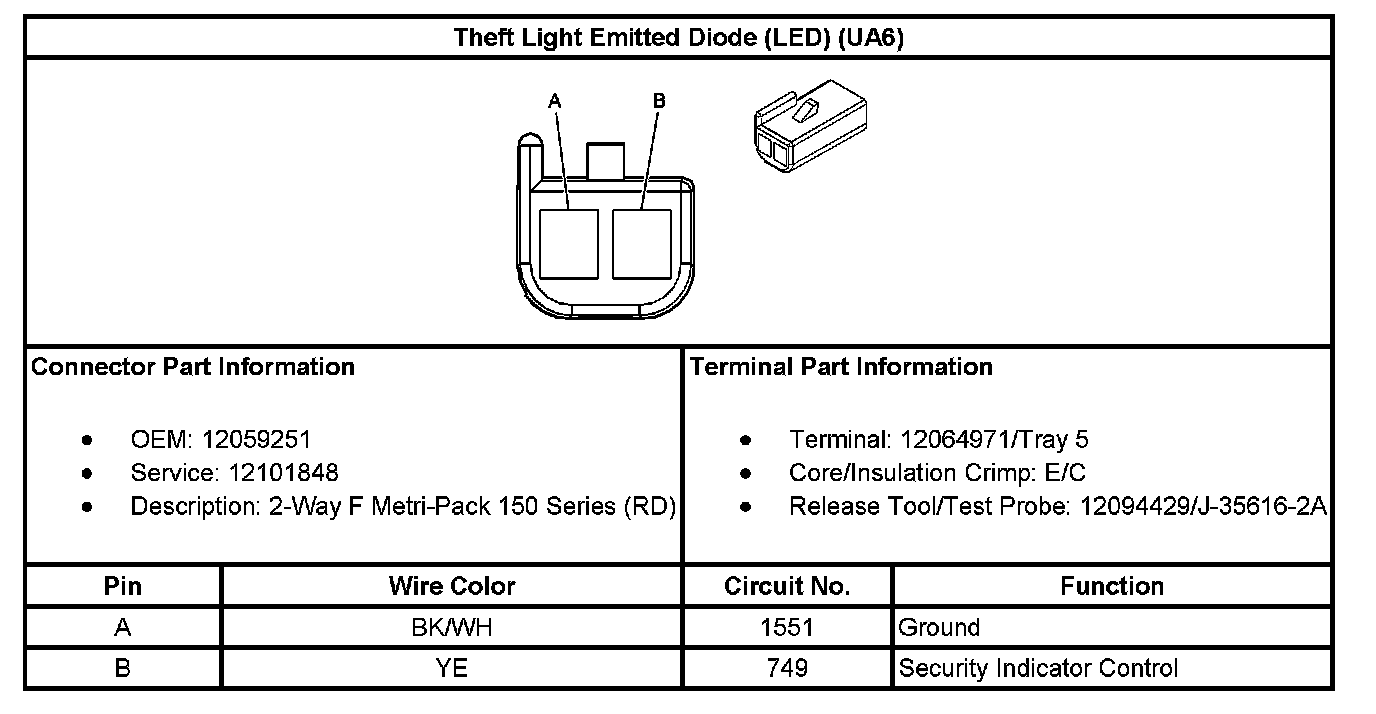

Theft Light Emitted Diode (LED) (With RPO Code UA6):
