Transmission Mode Switch, A/T
Automatic Transmission Internal Connector End Views

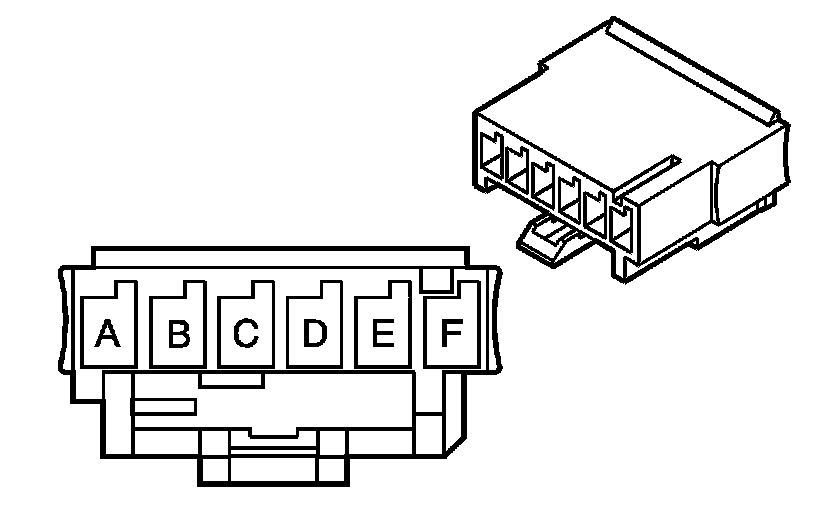

Internal Mode Switch (IMS):

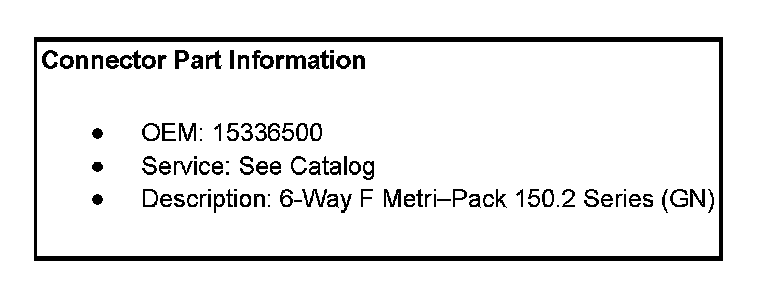

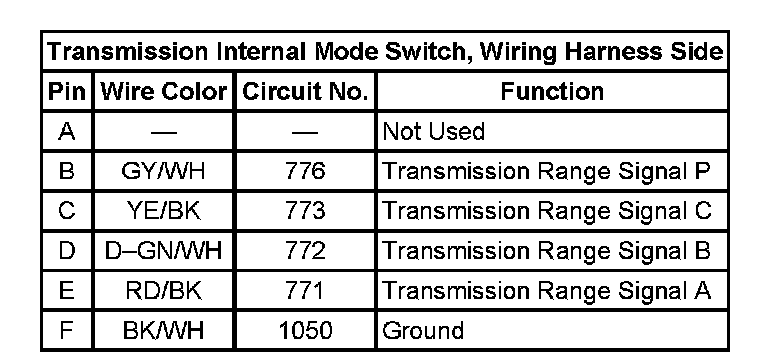

Transmission Internal Mode Switch, Wiring Harness Side:
