Transmission Speed Sensor, A/T

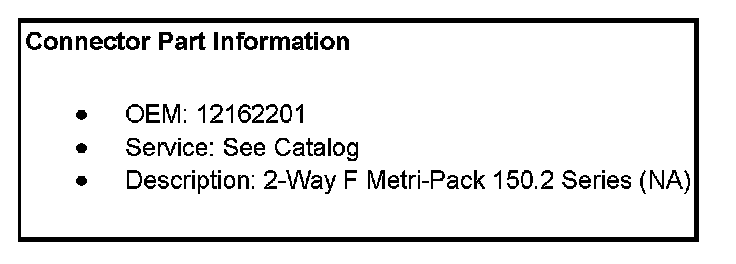

Automatic Transmission Internal Connector End Views

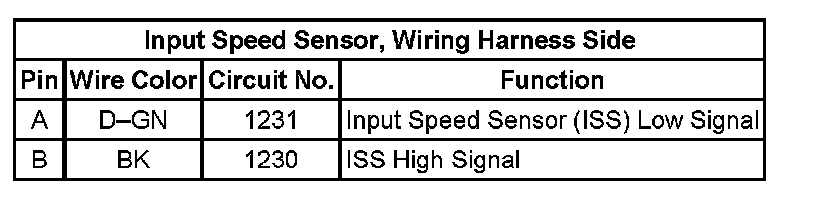

Input Speed Sensor, Wiring Harness Side







Input Speed Sensor, Wiring Harness Side:
