RELAY AWD V6-3.5L VIN L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Differential Clutch
Differential Clutch

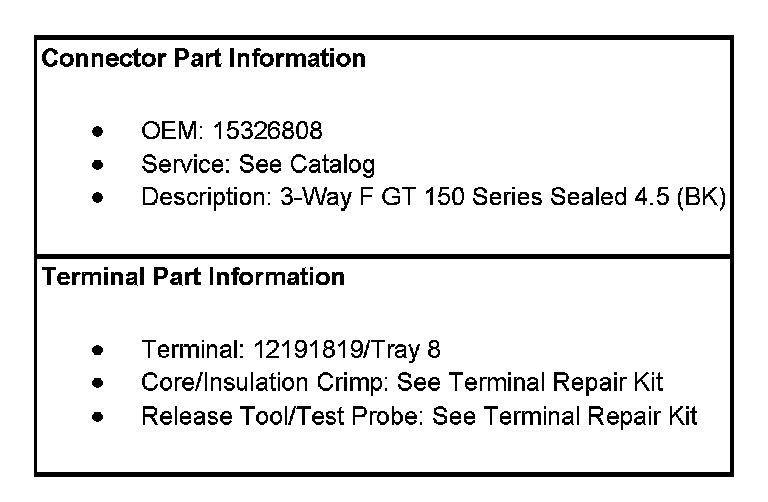

Rear Axle Connector End Views

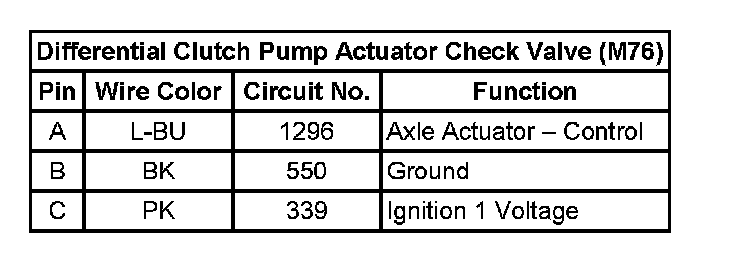

Differential Clutch Pump Actuator Check Valve (M76):
