RELAY AWD V6-3.5L VIN L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Door Switch
Door Switch

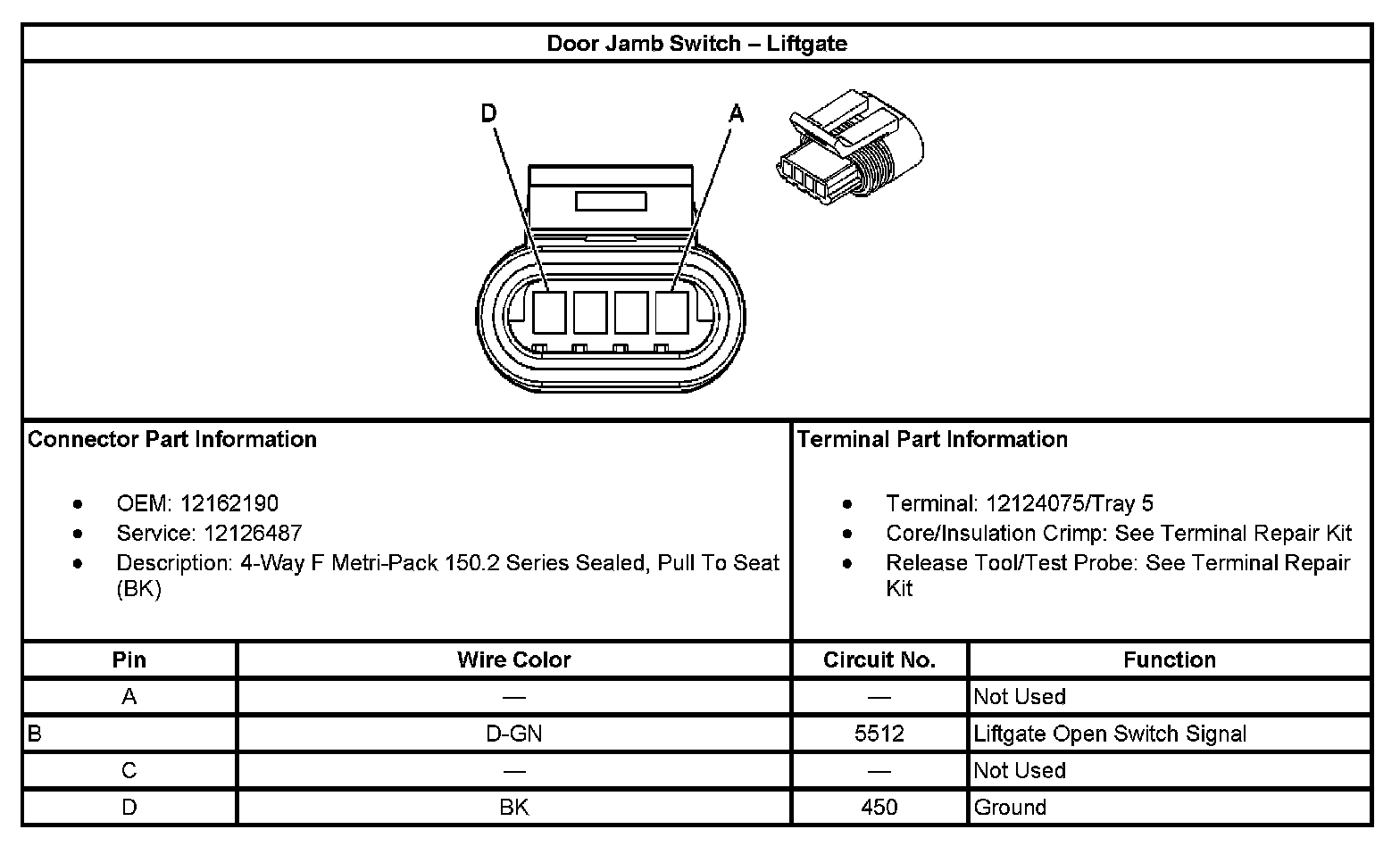

Door Jamb Switch - Liftgate:

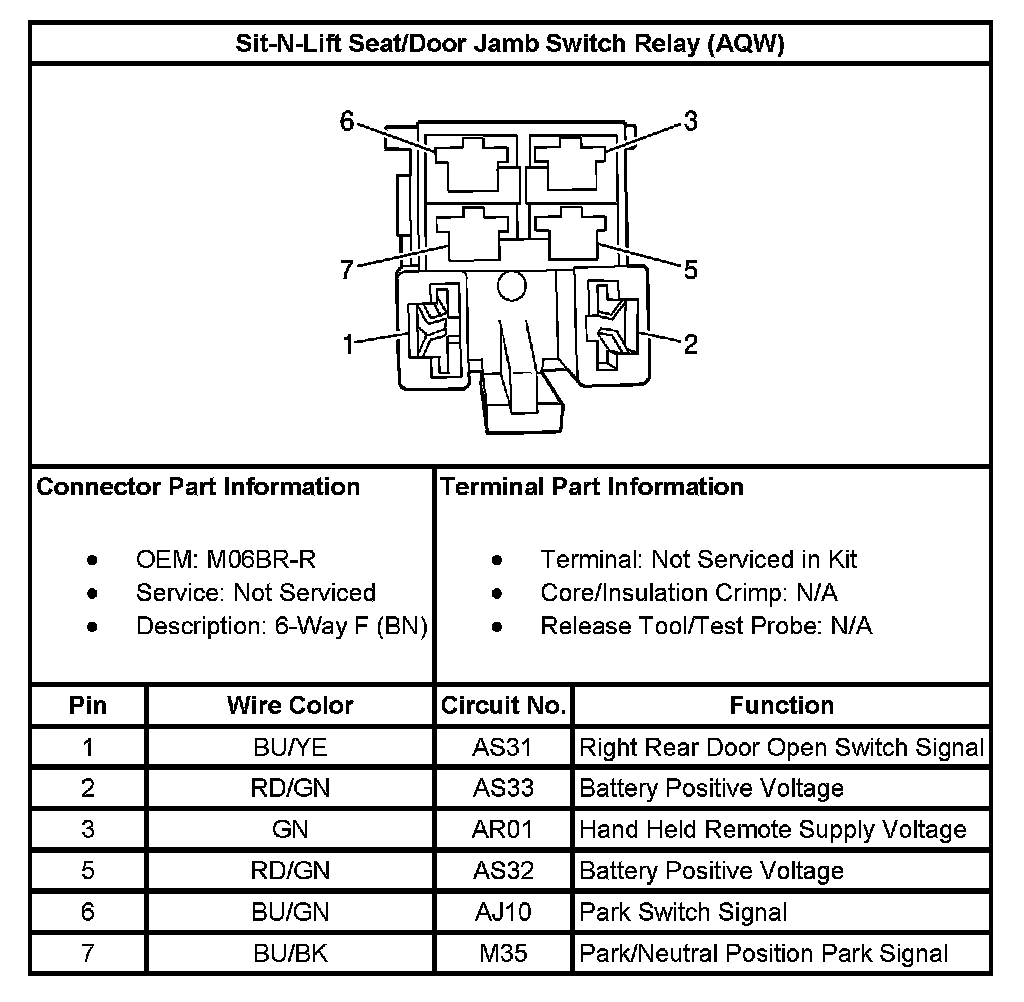

Sit-N-Lift Seat/Door Jamb Switch Relay (With RPO Code AQW):
