Front Door Latch
Front Door Latch
Door Latch Assembly - Driver C1:

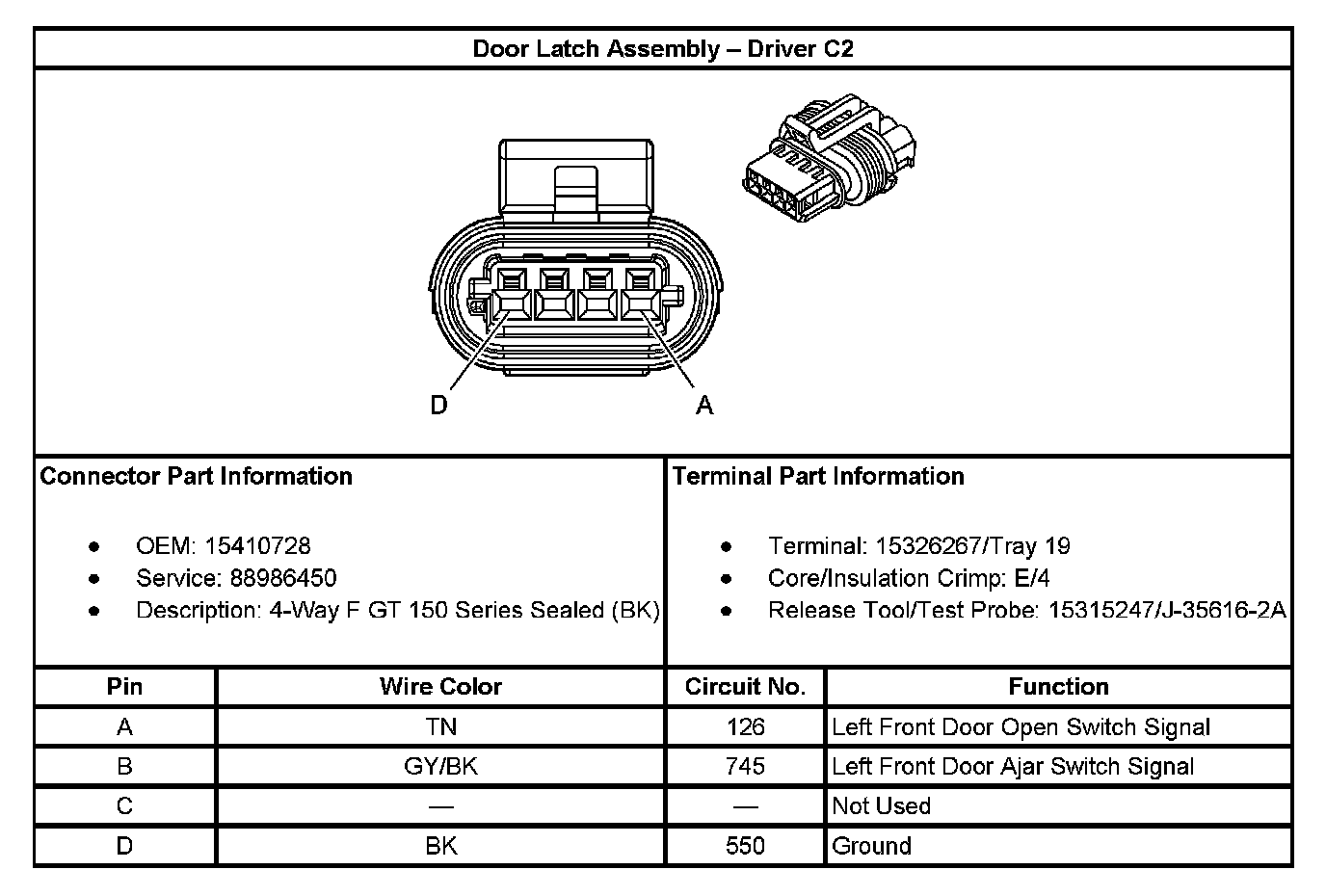

Door Latch Assembly - Driver C2:

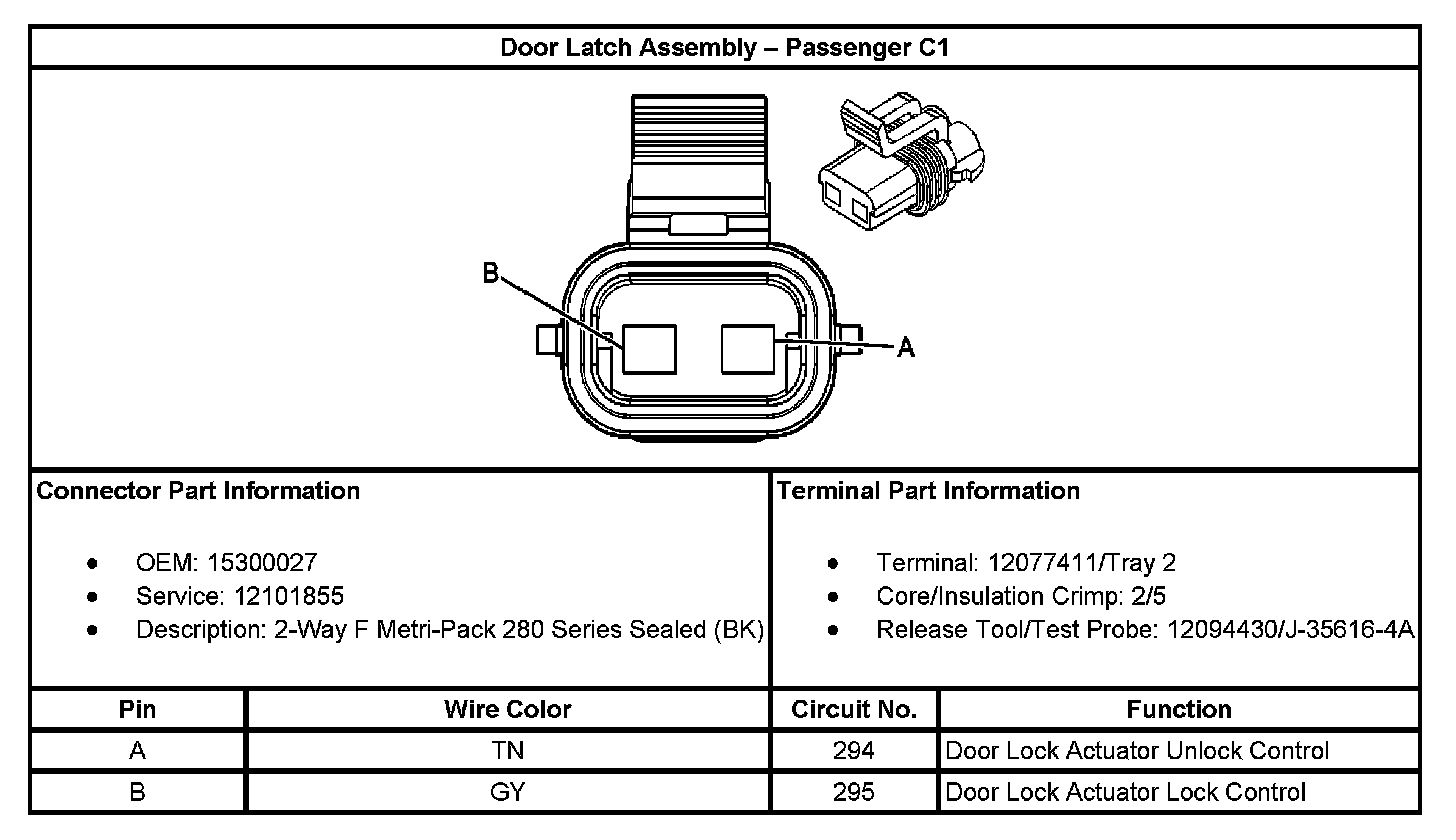

Door Latch Assembly - Passenger C1:
Door Latch Assembly - Passenger C2:
