Ride Height Sensor, Suspension Control

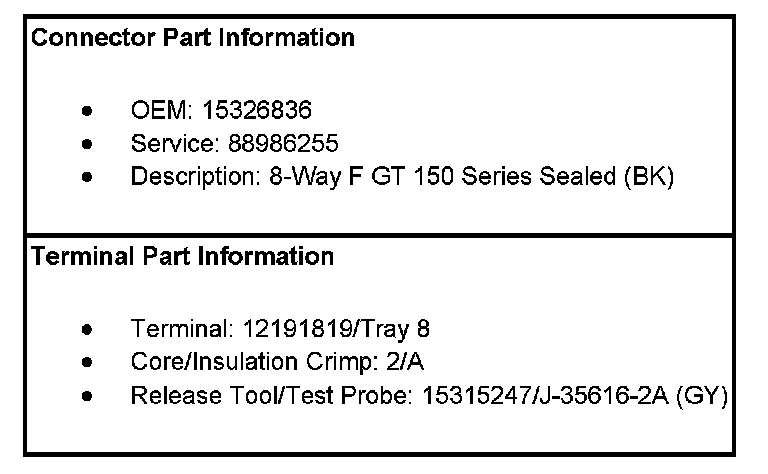

Automatic Level Control Connector End Views

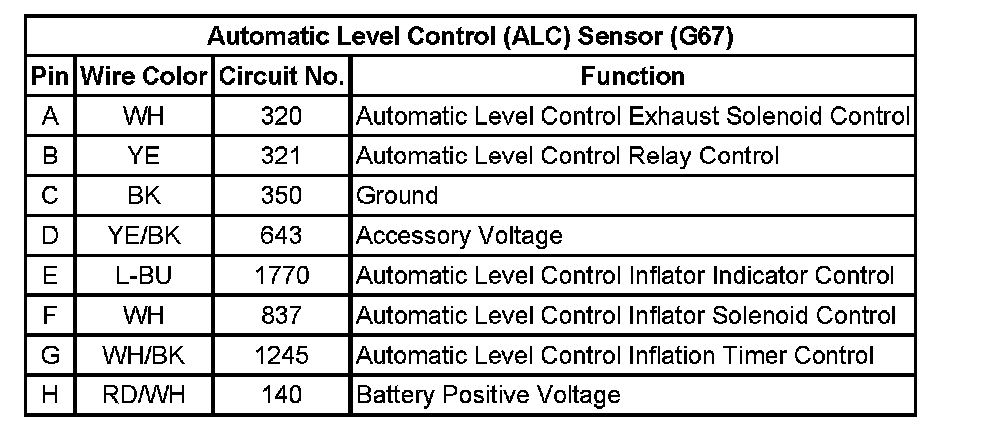

Automatic Level Control (ALC) Sensor:
