Operation CHARM: Car repair manuals for everyone.
Home >> Saturn >> 2006 >> RELAY AWD V6-3.5L VIN L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Seats >> System Diagram >> Swivel Motor

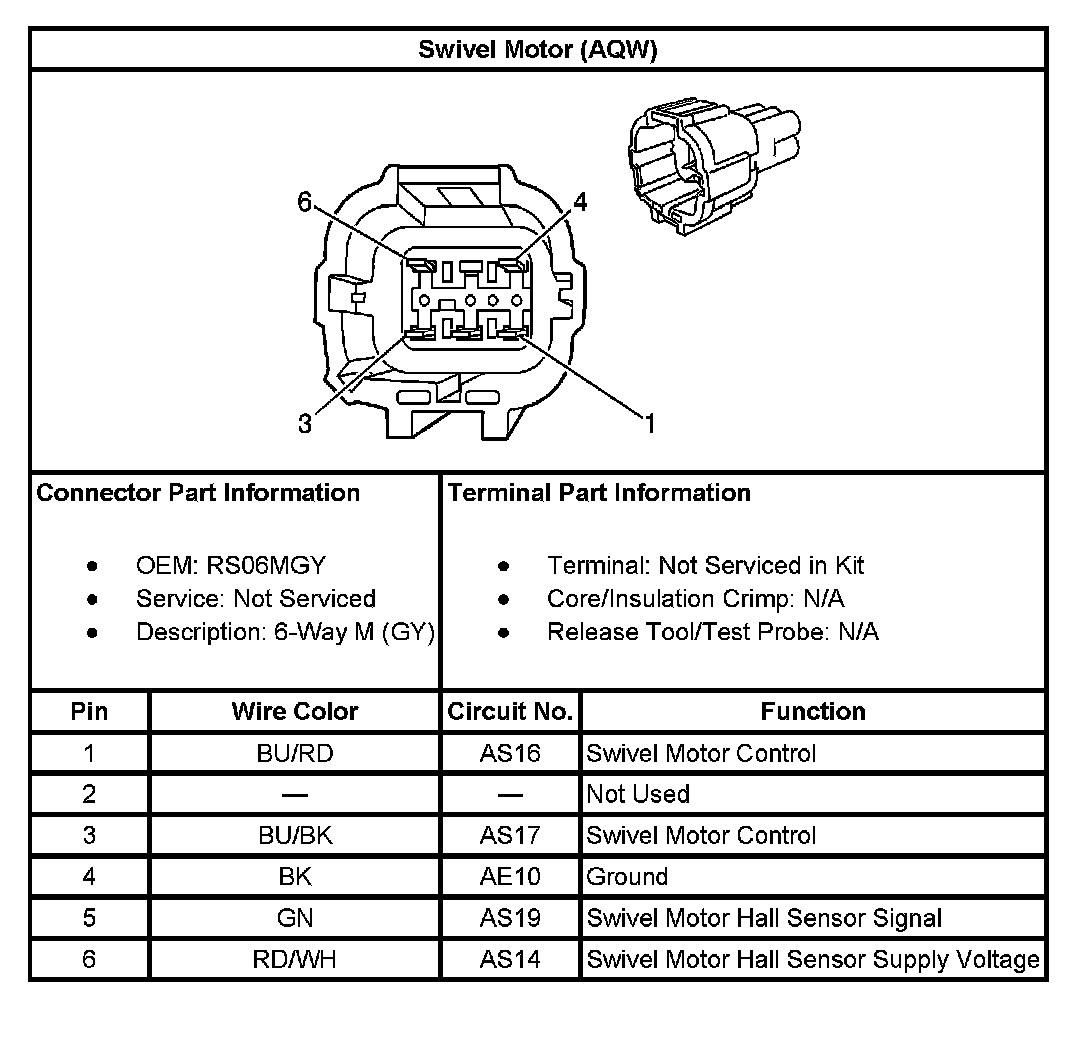

Swivel Motor

Swivel Motor (With RPO Code AQW):
