Home
>>
Saturn
>>
2006
>>
RELAY AWD V6-3.5L VIN L
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Blower Motor
>>
Diagrams
>>
Connector Views
Connector Views

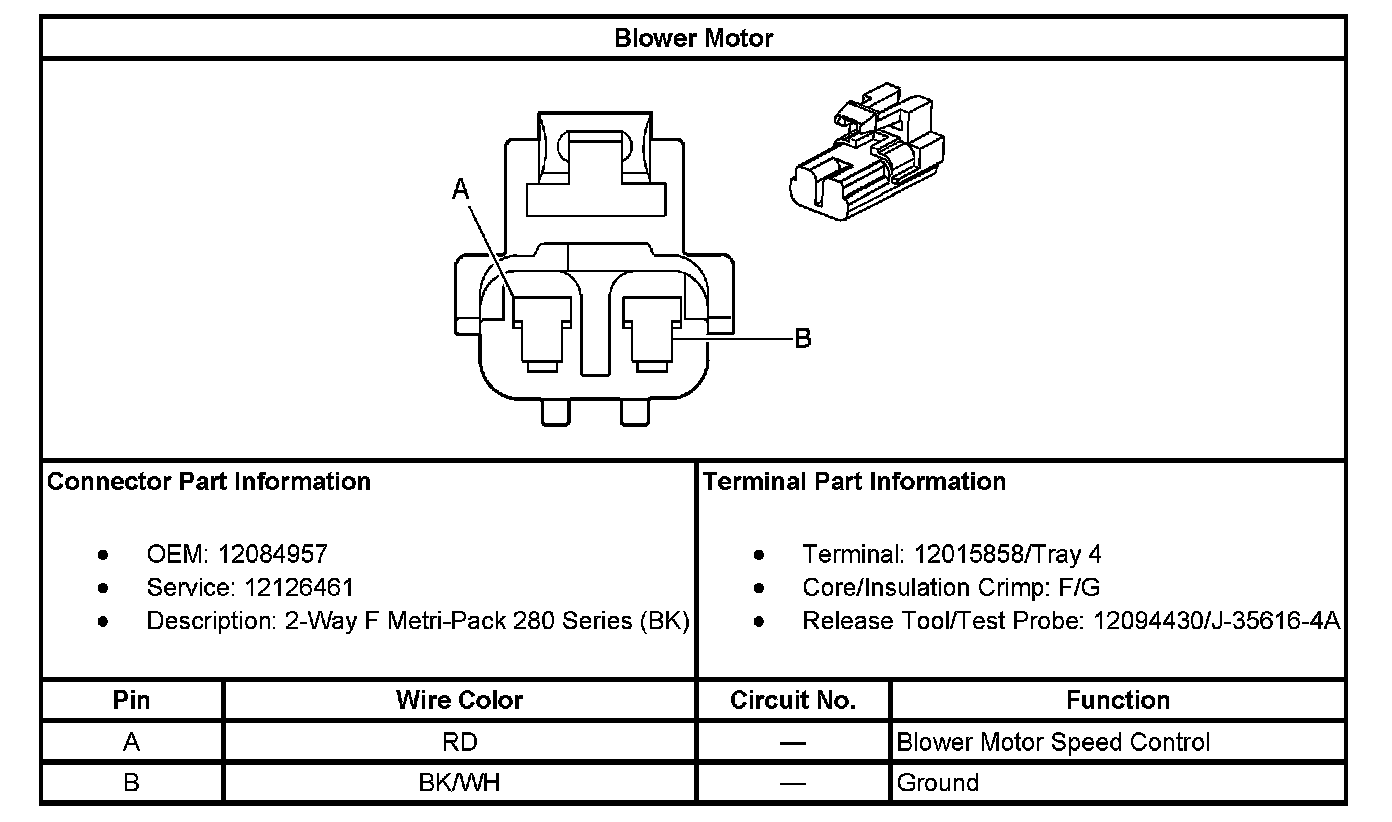

Blower Motor:

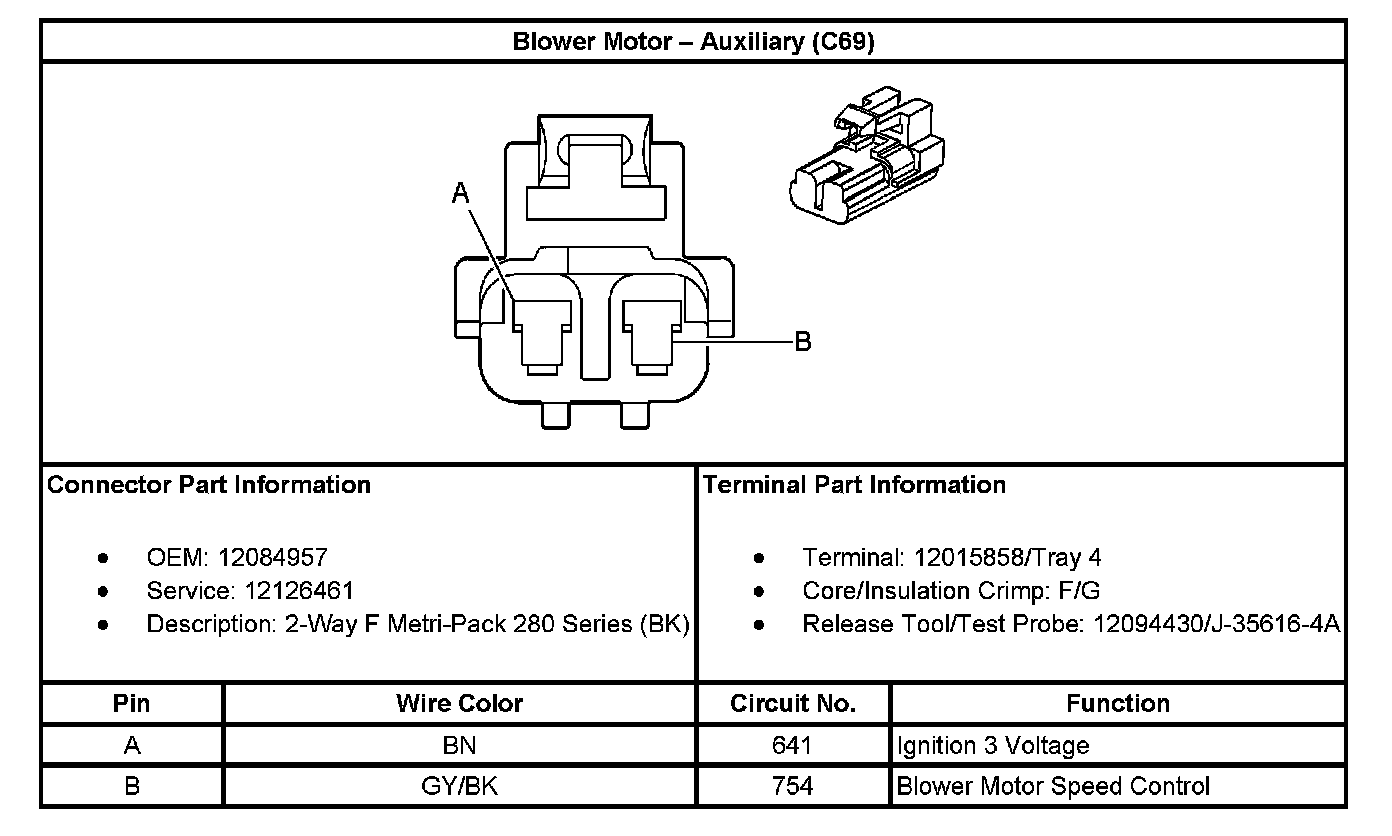

Blower Motor - Auxiliary (with RPO Code C69):
