RELAY AWD V6-3.5L VIN L
>>
Repair and Diagnosis
>>
Locations
>>
Harness Locations
>>
Body Views
>>
Body Harness Components
Body Harness Components

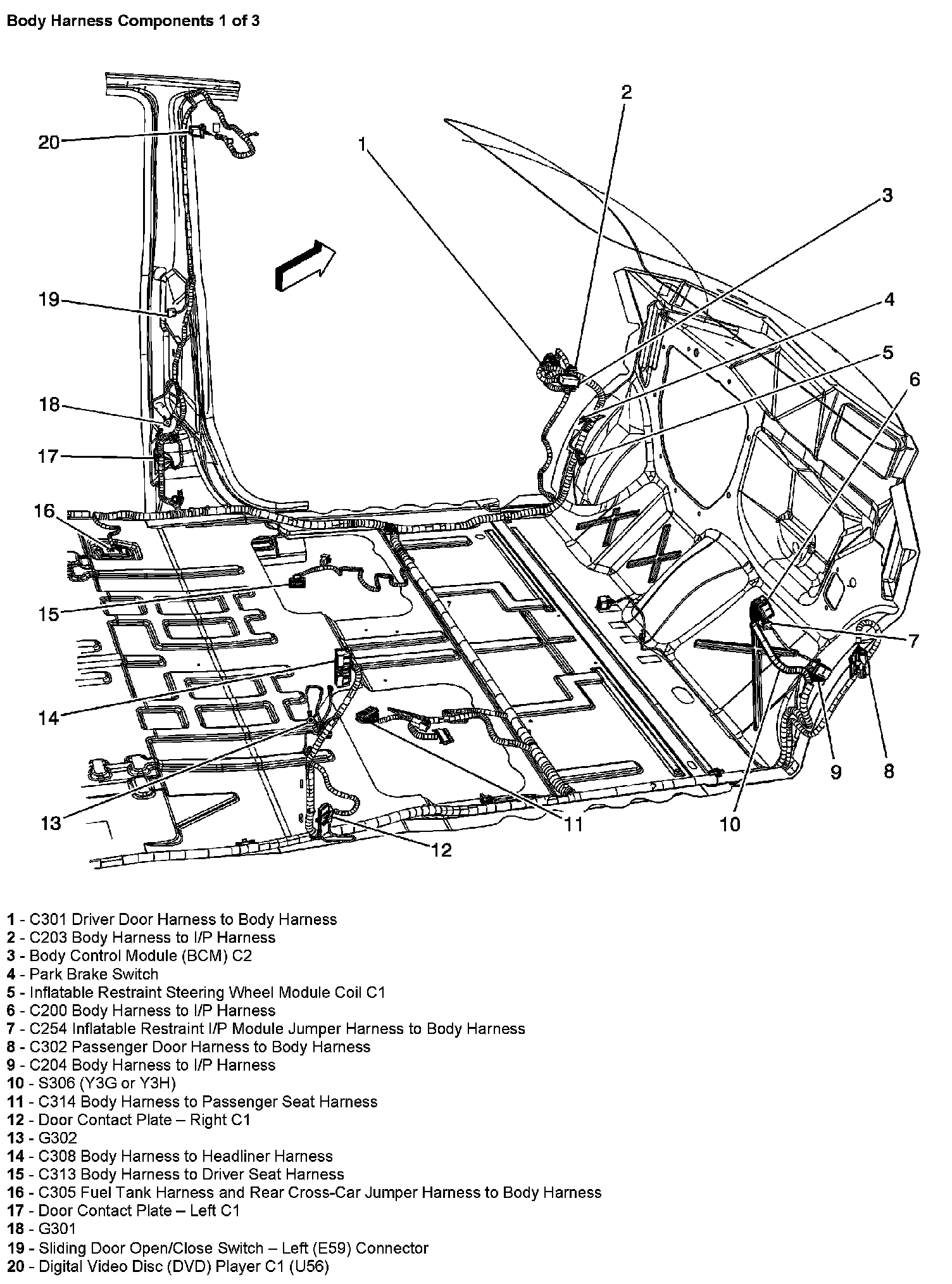

Body Harness Components (Part 1):

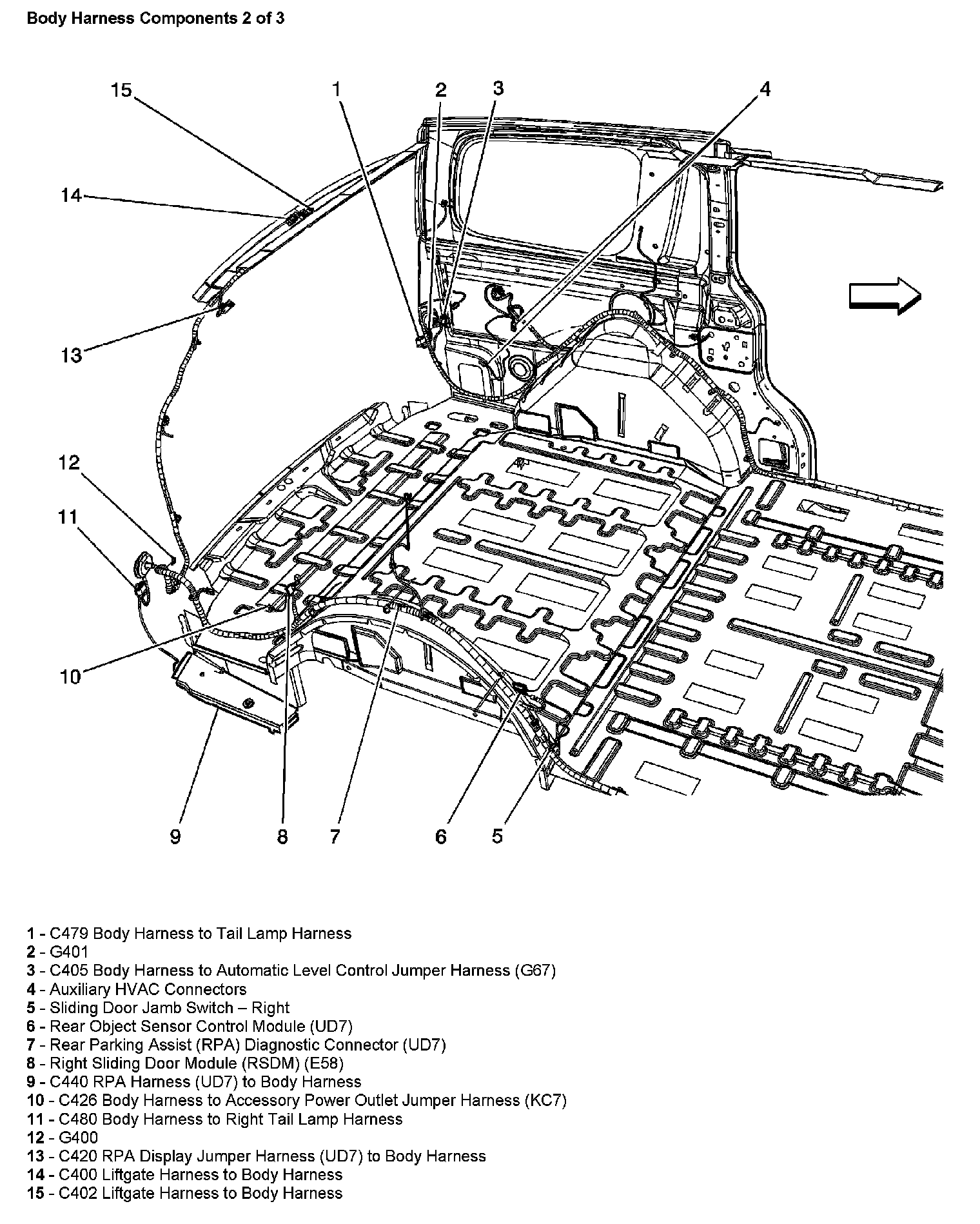

Body Harness Components (Part 2):

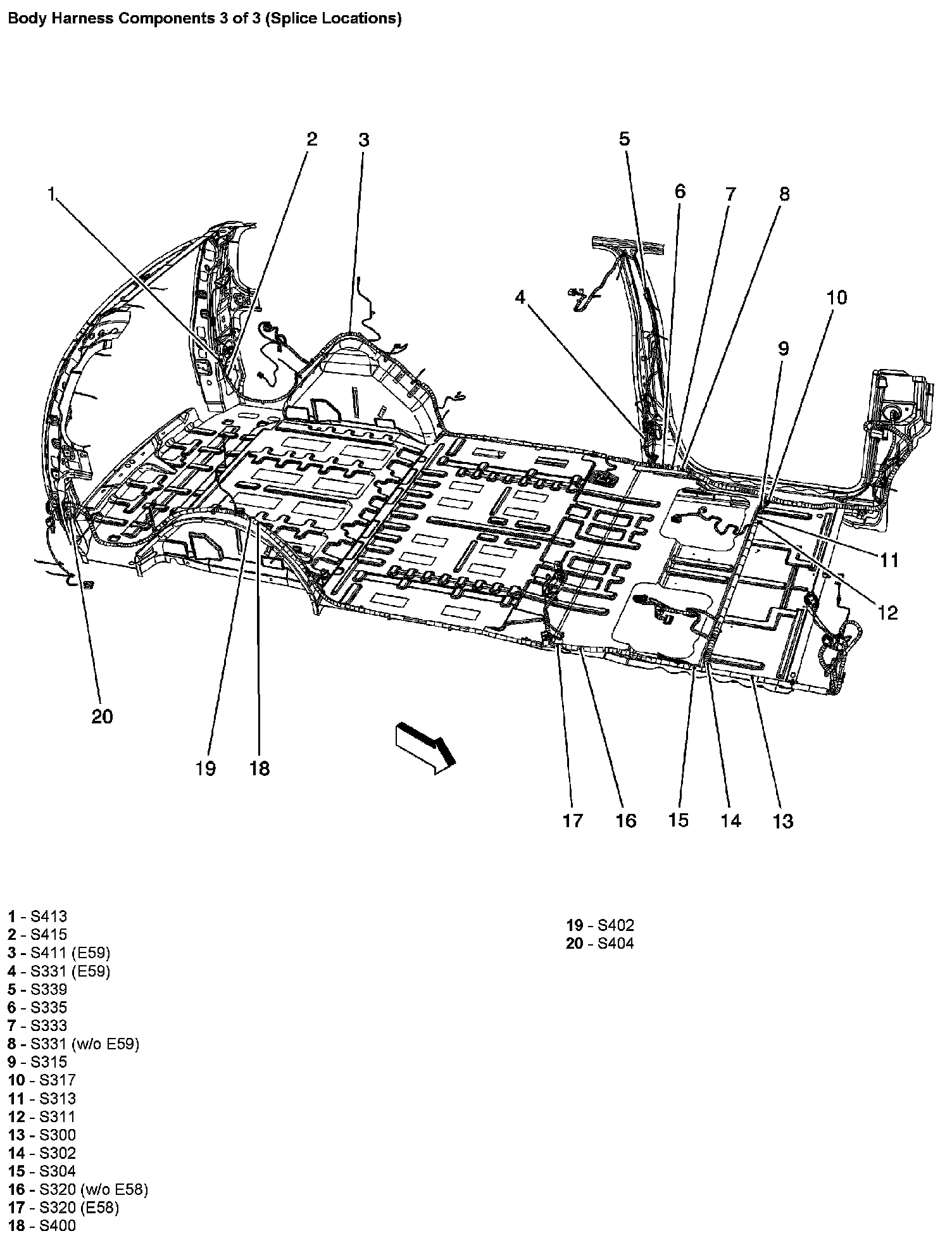

Body Harness Components (Part 3) (Splice Locations):
