Power and Ground Distribution
>>
Locations
>>
Engine Compartment Views
>>

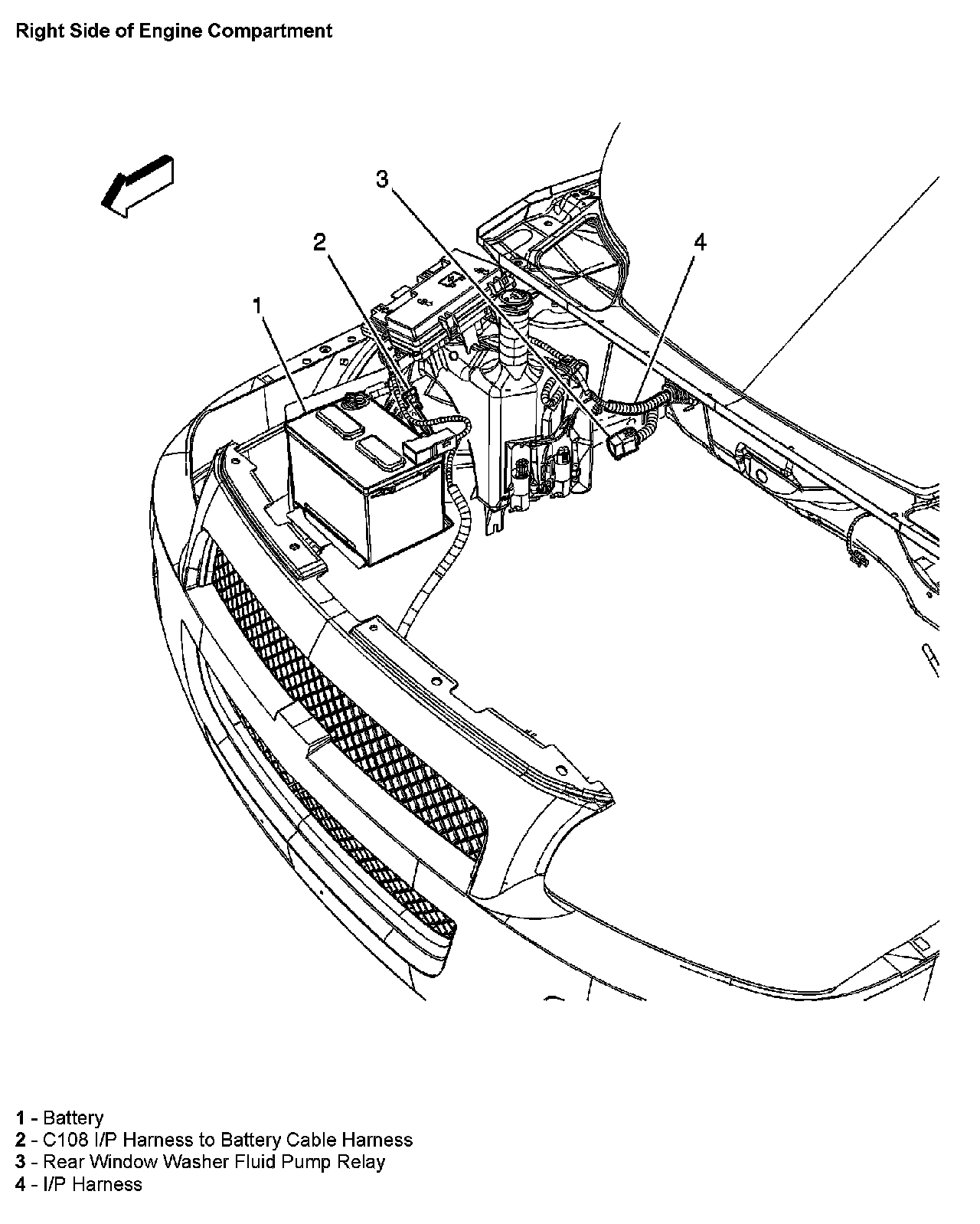

Right Side of Engine Compartment
Right Side of Engine Compartment
Right Side Of Engine Compartment:
