Electrical Diagrams

Automatic Transmission Controls Diagrams (LX9)

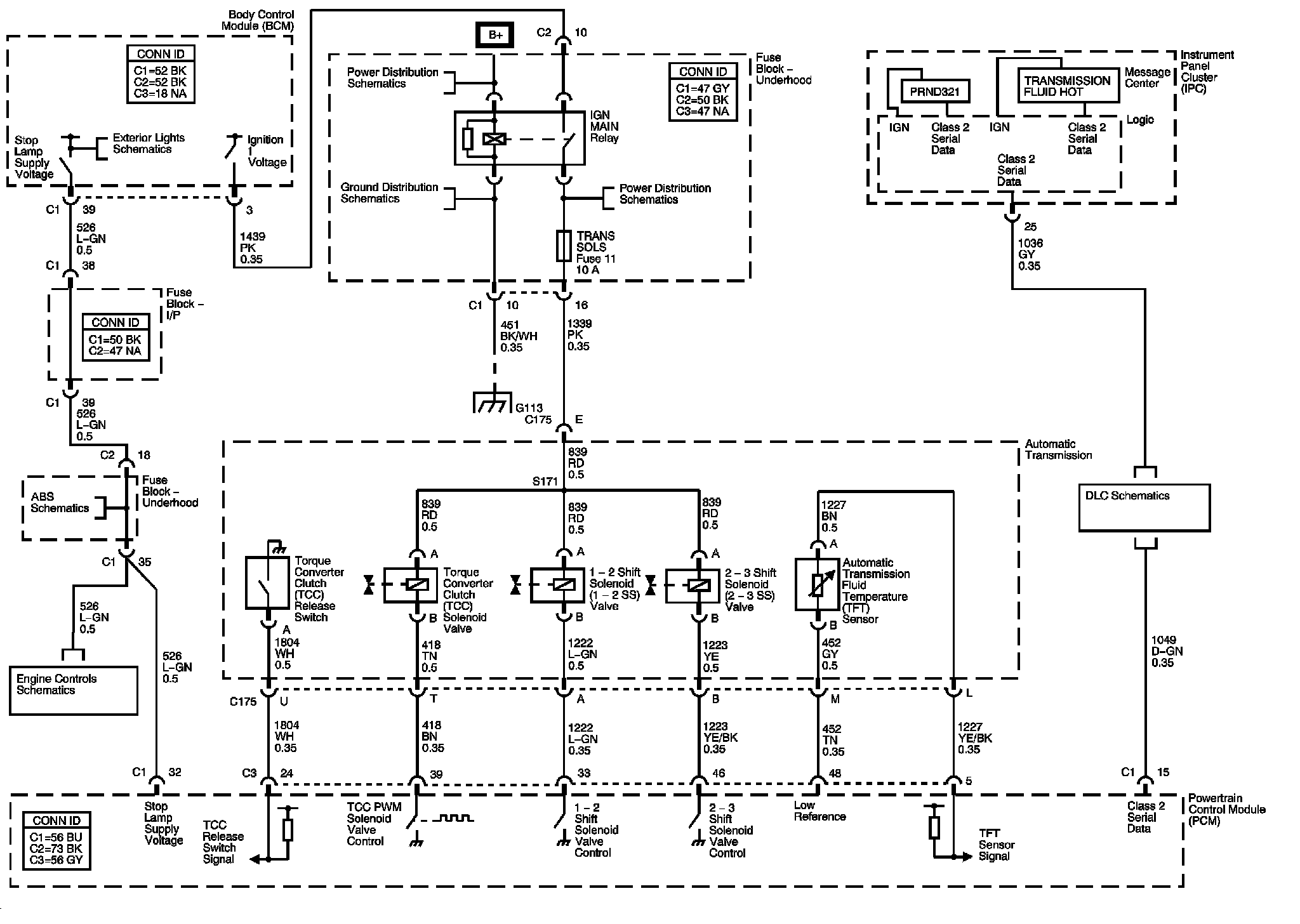

Automatic Transmission Controls Diagrams (LX9) 1:

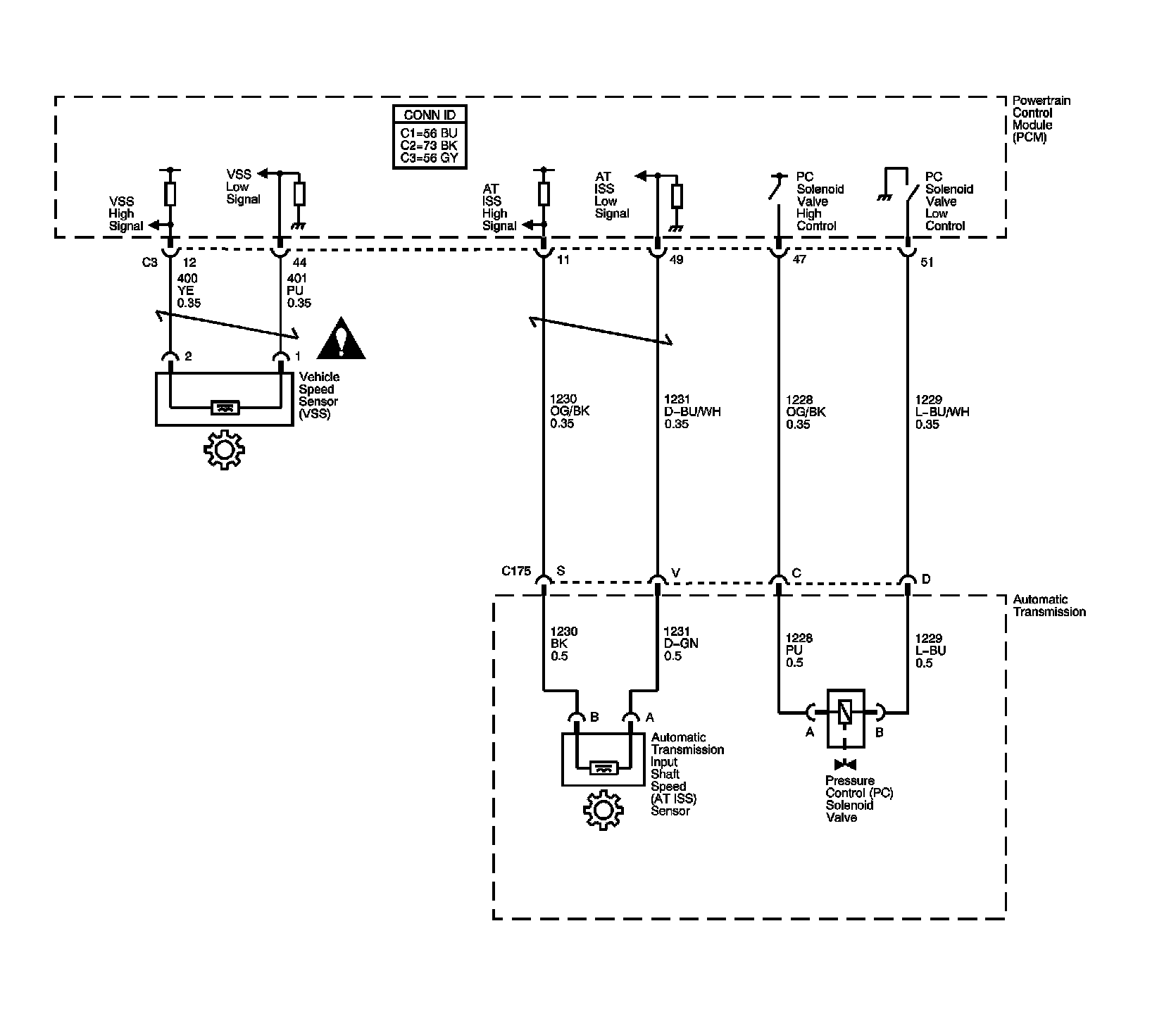

Automatic Transmission Controls Diagrams (LX9) 2:

Automatic Transmission Controls Diagrams (LX9) 3:

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
