Air Bag Control Module
>>
Locations
Air Bag Control Module: Locations

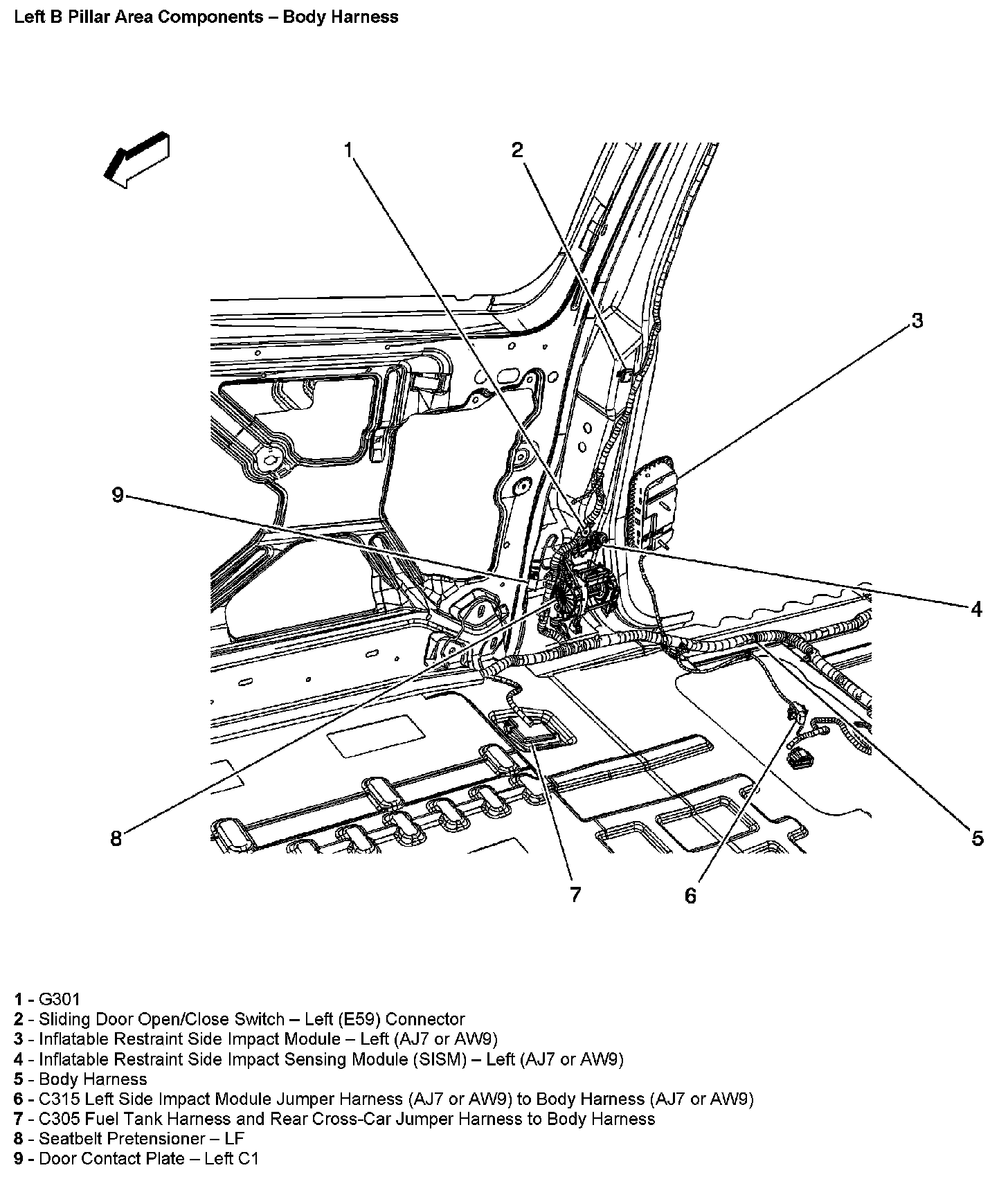

Left B Pillar Area Components - Body Harness:

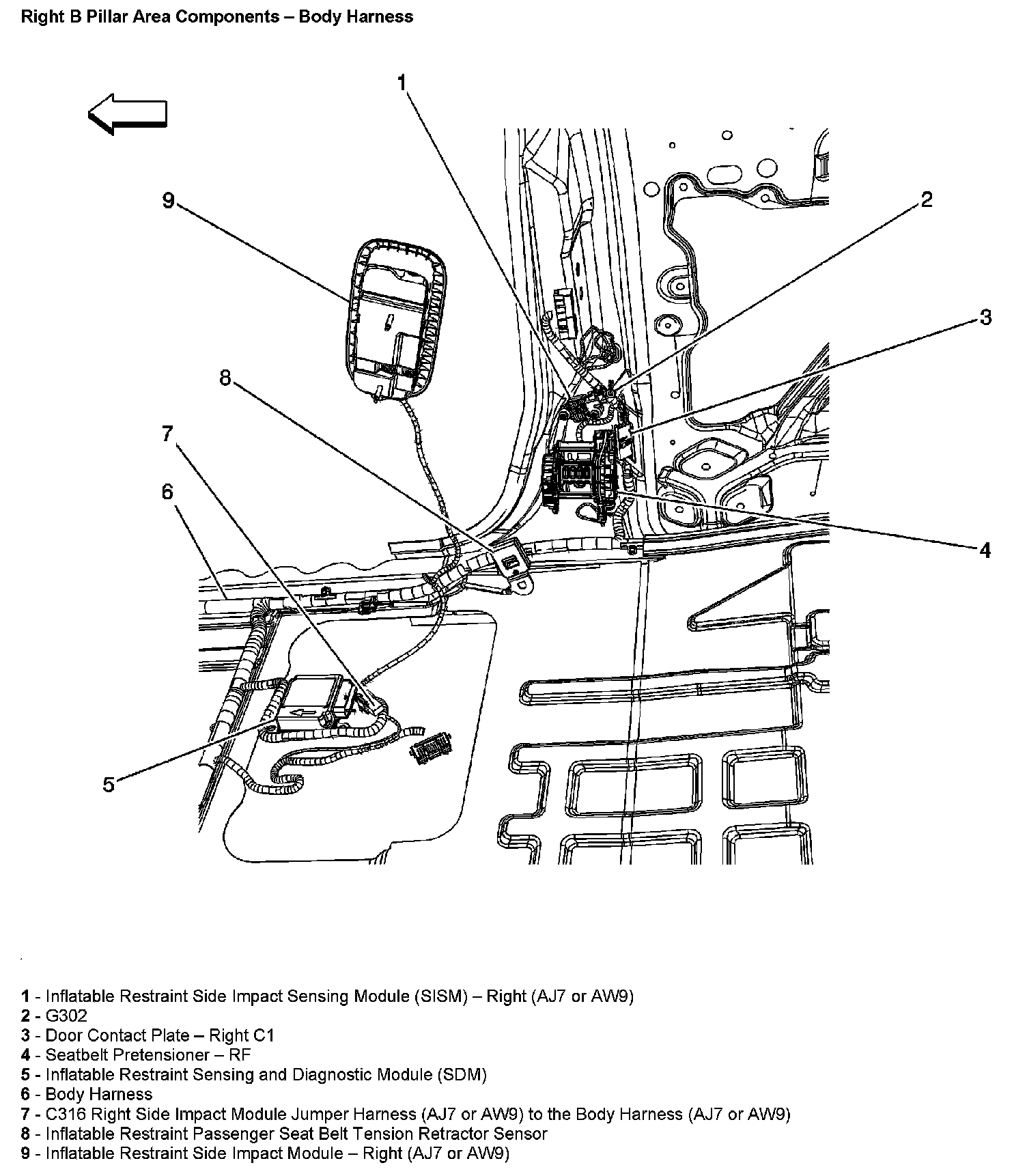

Right B Pillar Area Components - Body Harness:
