Generator Bracket Replacement

GENERATOR BRACKET REPLACEMENT

REMOVAL PROCEDURE




1. Remove the generator.
2. Remove the drive belt tensioner.

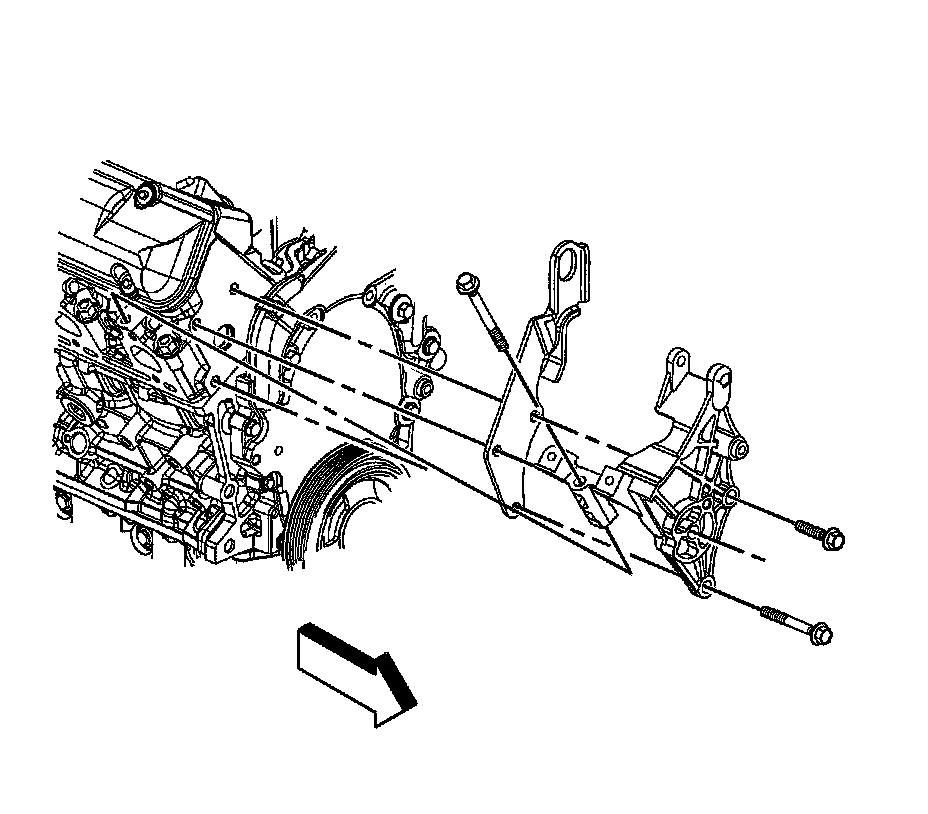

3. Remove the generator bracket bolts.
4. Remove the generator bracket and engine lift bracket.

INSTALLATION PROCEDURE




1. Position the engine lift bracket and generator bracket to the engine.
2. Install the generator bracket bolts.

NOTE: Refer to Fastener Notice.

Tighten the to 50 N.m (37 lb ft).

3. Install the drive belt tensioner.
4. Install the generator.
