Windshield Washer Motor: Locations

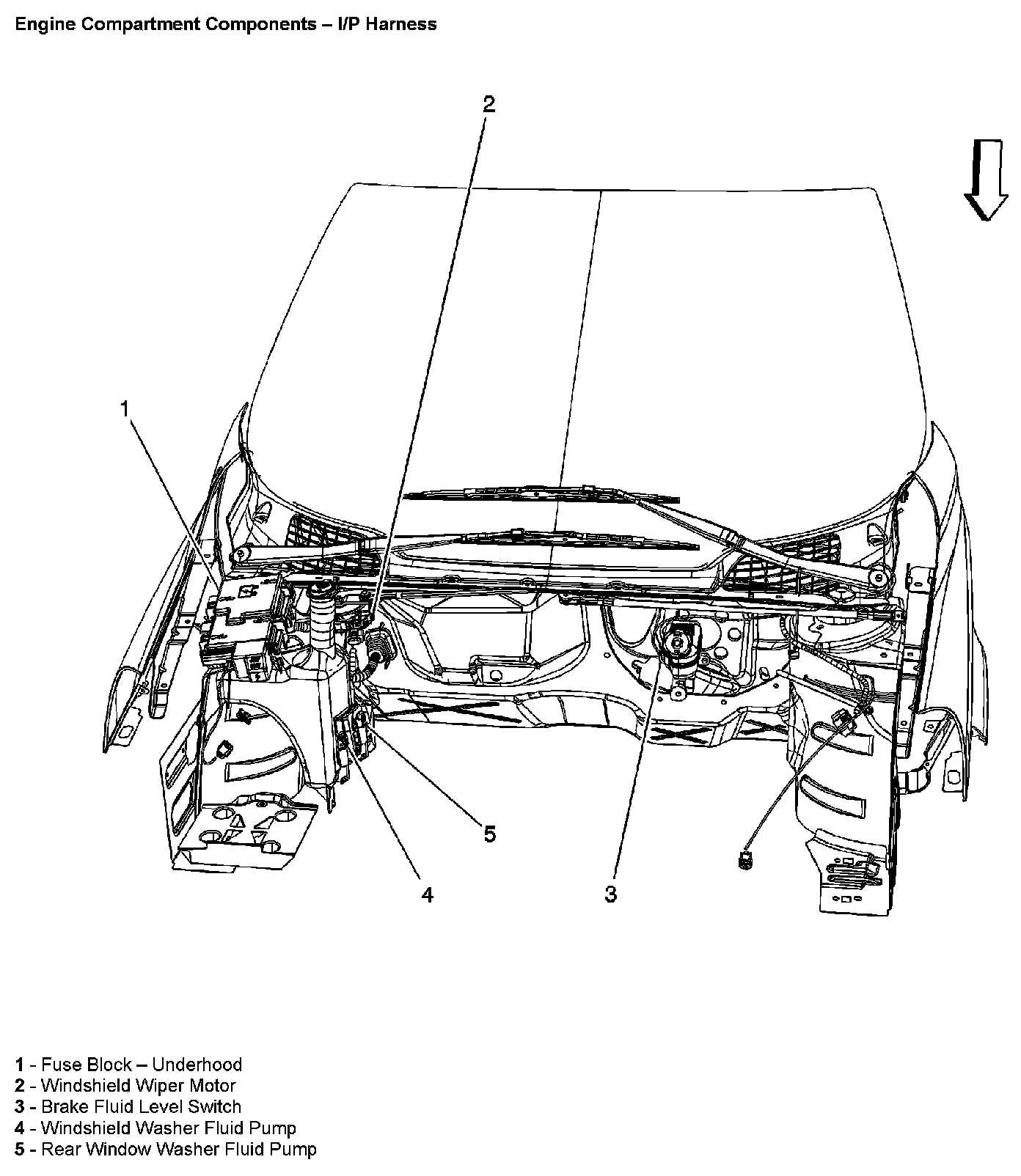

Engine Compartment Components - I/P Harness:

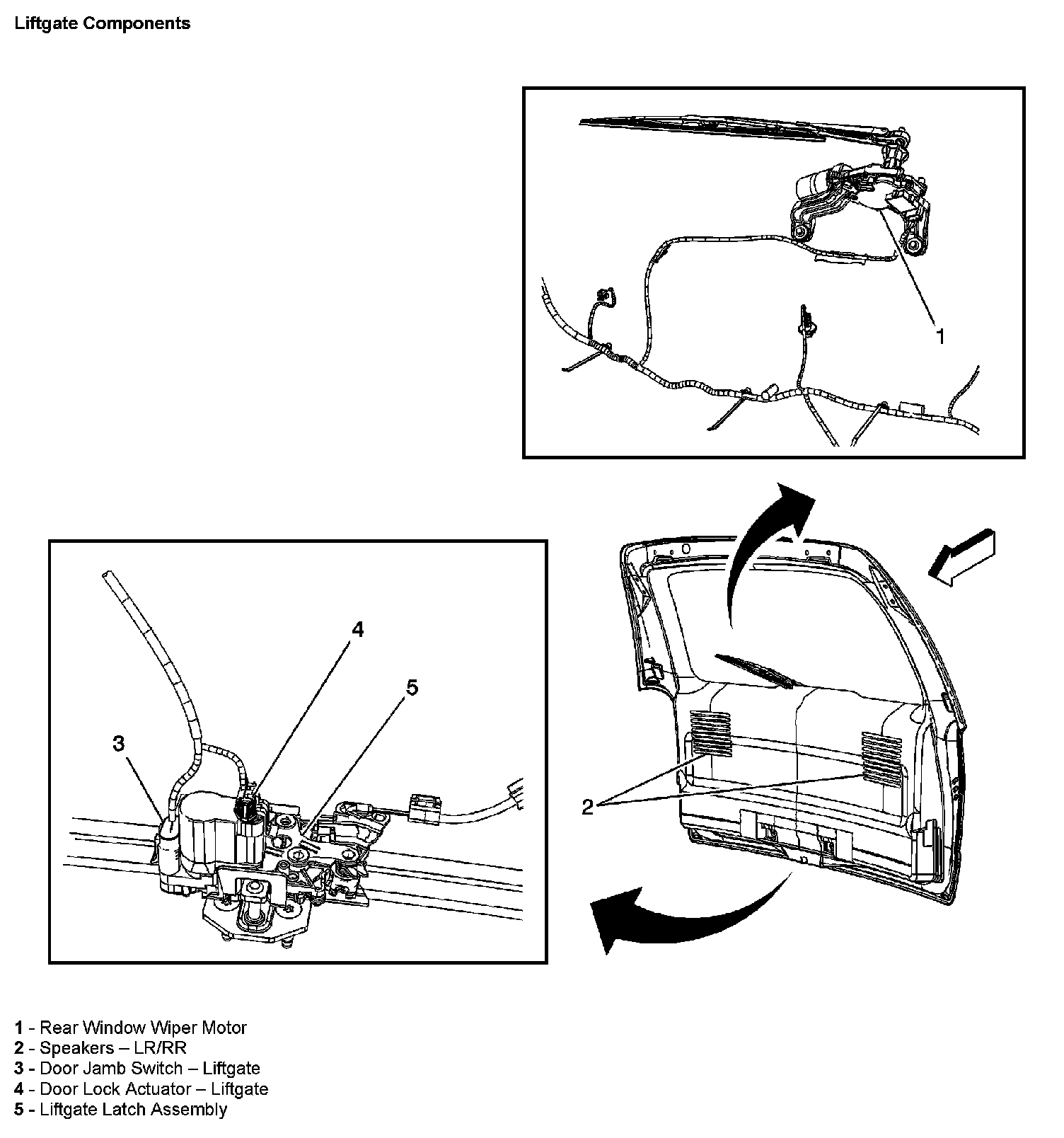

Liftgate Components:
