Applique Replacement - Windshield Frame

Applique Replacement - Windshield Frame

Removal Procedure

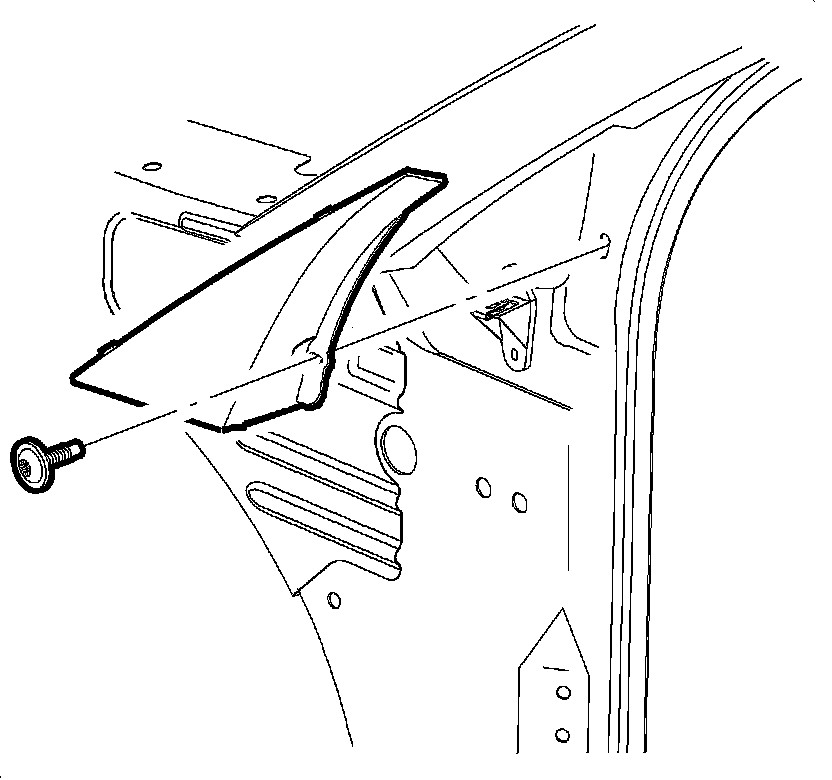

1. Remove the windshield frame filler panel to body screw.
2. Remove the windshield frame filler panel by sliding up and out to remove.

Installation Procedure




1. Align the windshield frame filler panel tabs with slots into the windshield frame trim panel.

Notice: Refer to Fastener Notice .

2. Install the windshield frame filler panel retaining screw.

Tighten the screw to 2 Nm (18 lb in).
