Front Fender Liner: Service and Repair

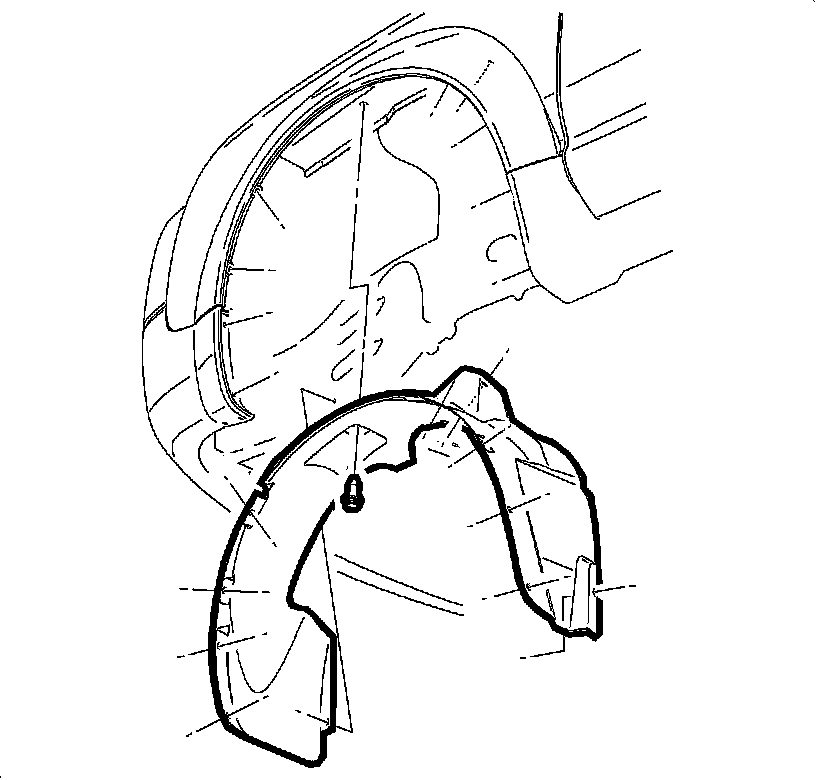

Wheelhouse Liner Replacement - Front

Removal Procedure




1. Remove the push-in retainers from the front wheelhouse liner.
2. Remove the wheelhouse liner from the vehicle.

Installation Procedure




1. Position the front wheelhouse liner to the vehicle.
2. Install the push-in retainers.
