Connector Views

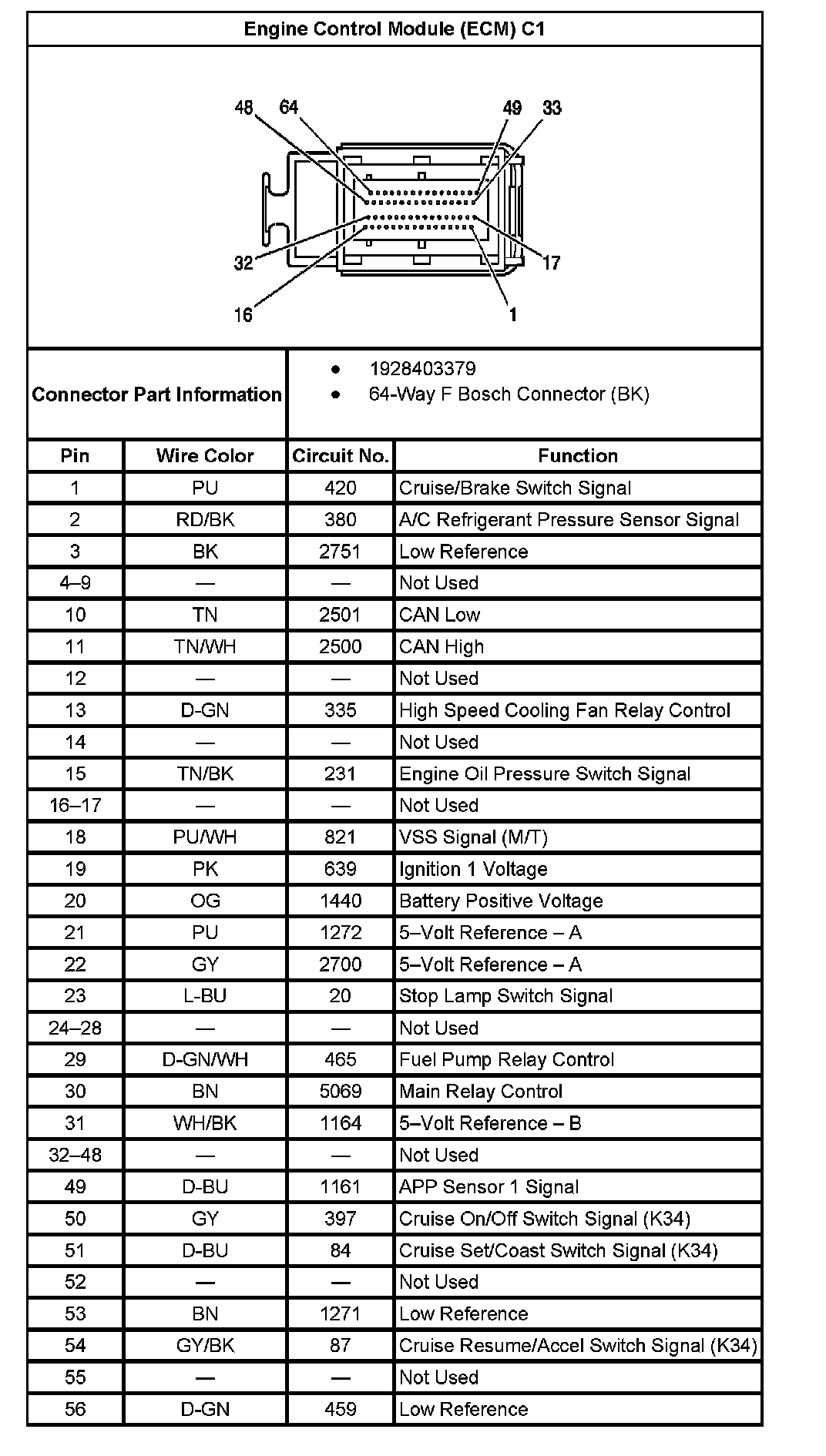

Engine Control Module (ECM) C1 (Part 1):

Engine Control Module (ECM) C1 (Part 2):

Engine Control Module (ECM) C2 (Part 1):

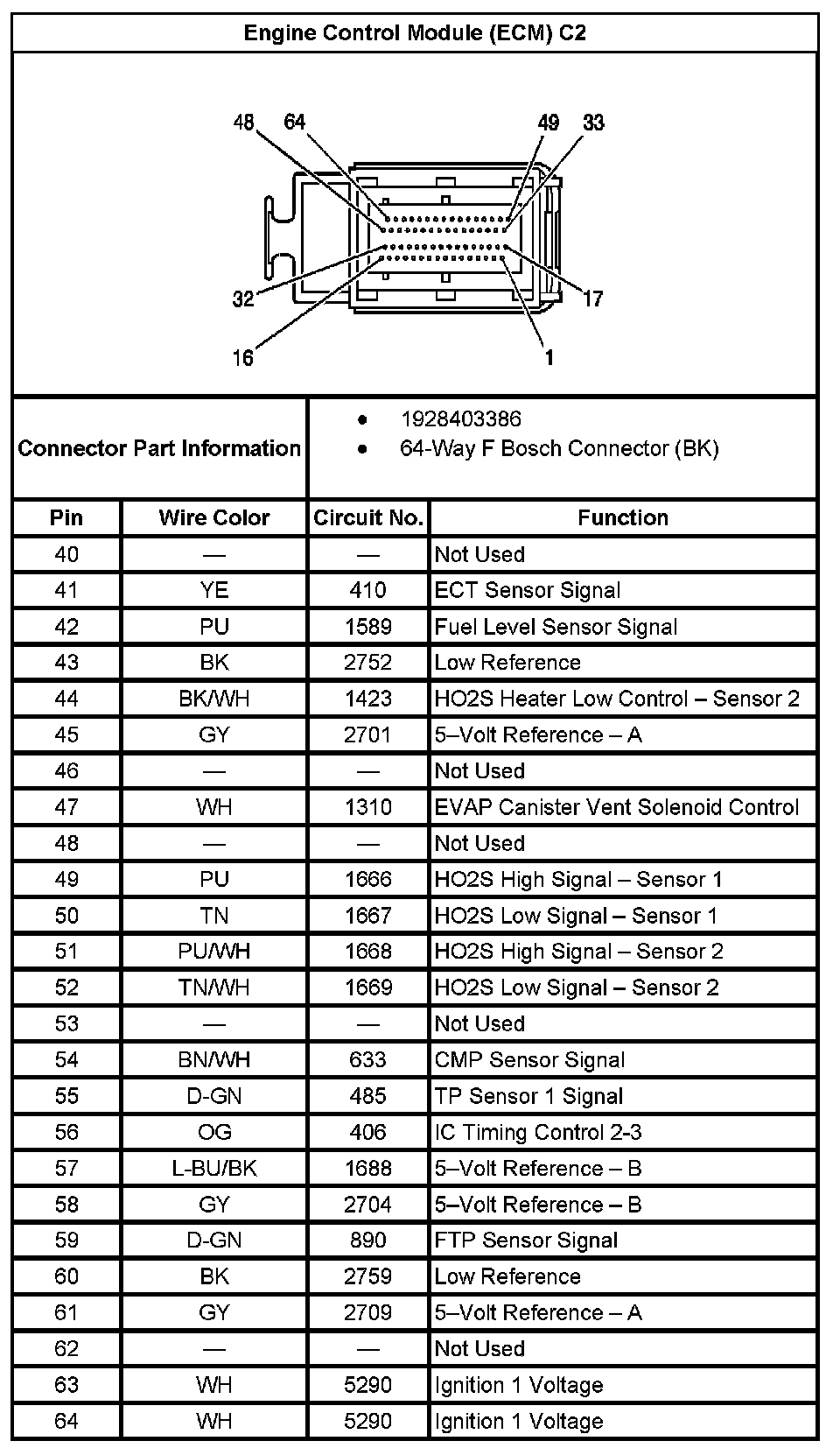

Engine Control Module (ECM) C2 (Part 2):
