Electrical Diagrams

ENGINE CONTROLS SCHEMATICS

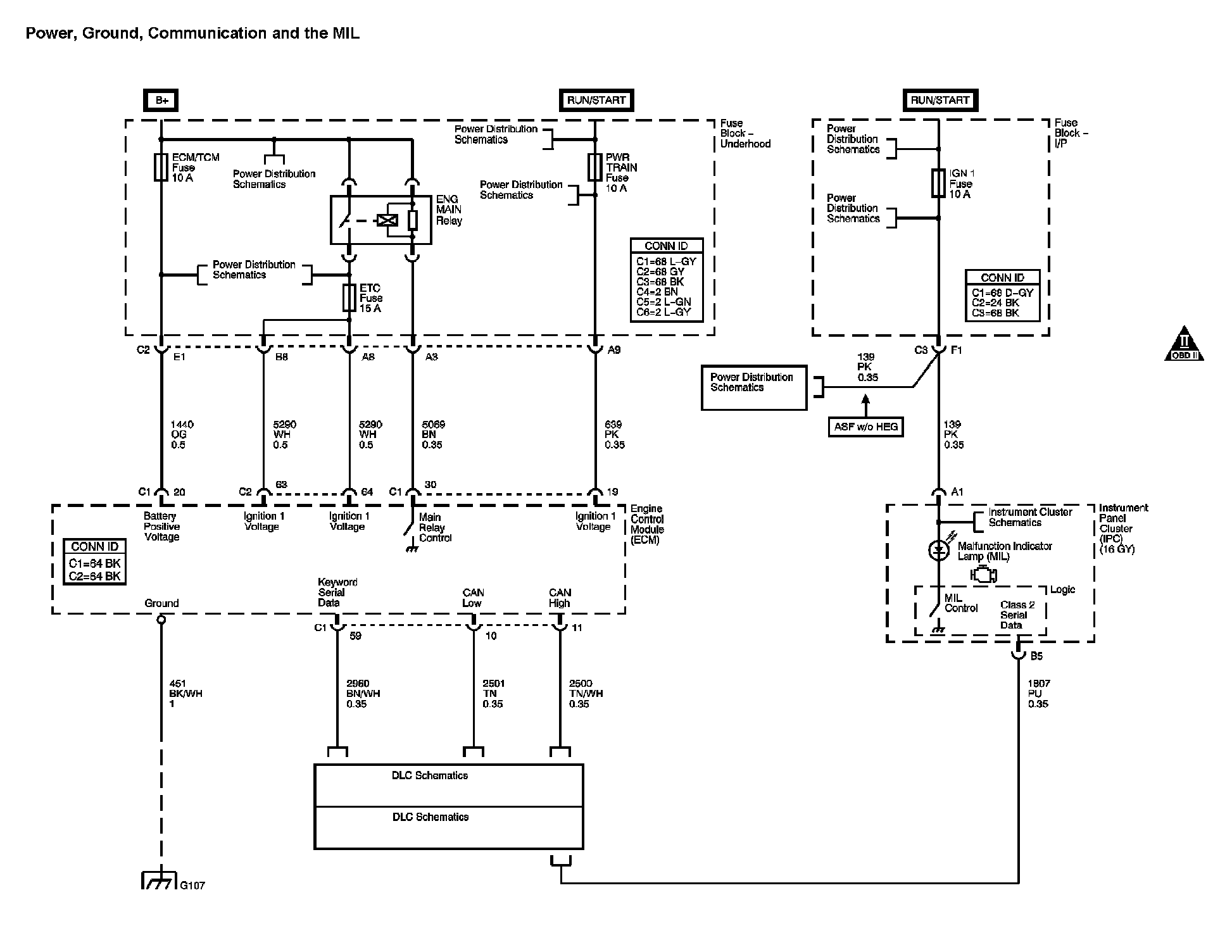

Power, Ground, Communication and the MIL

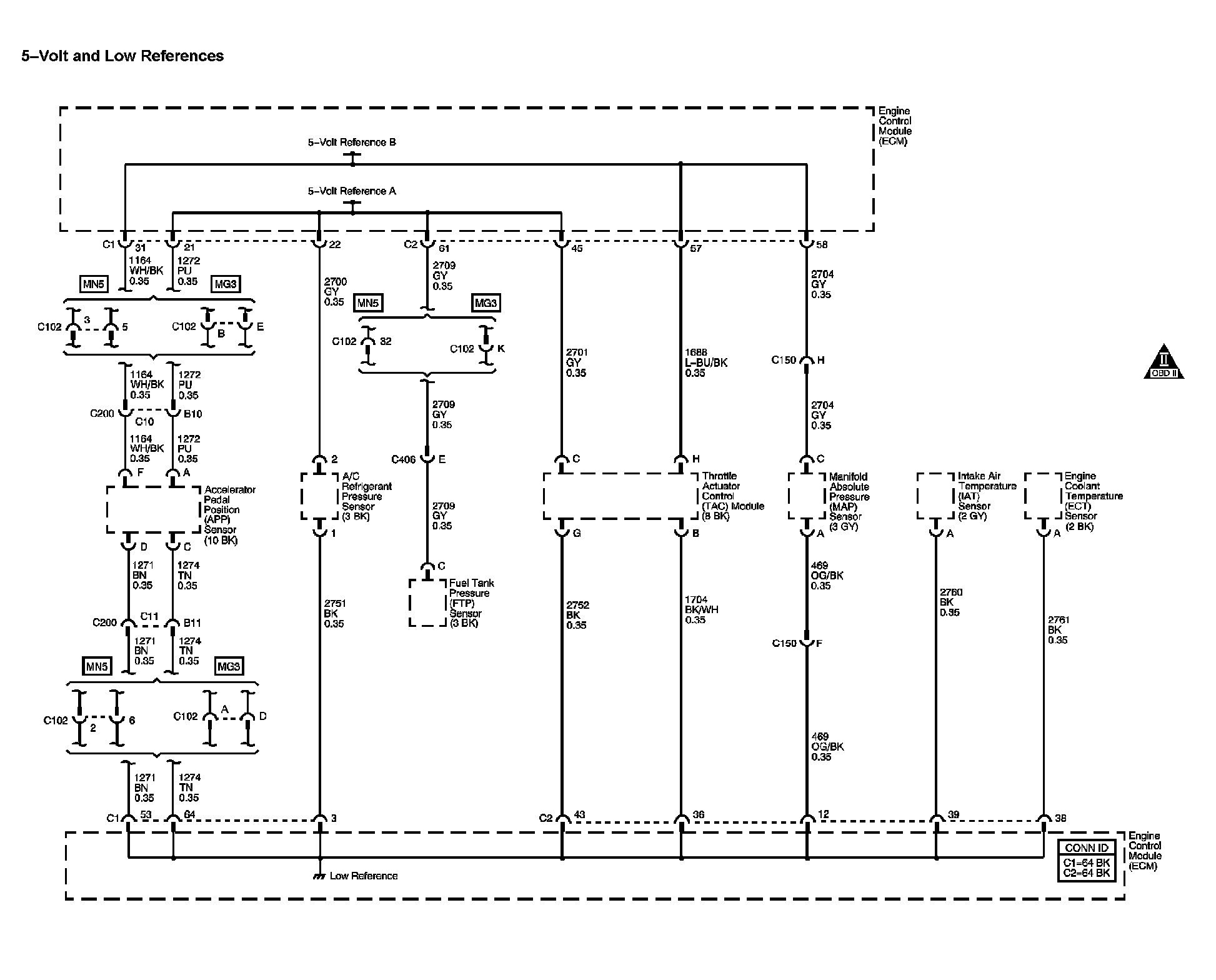

5-Volt and Low References

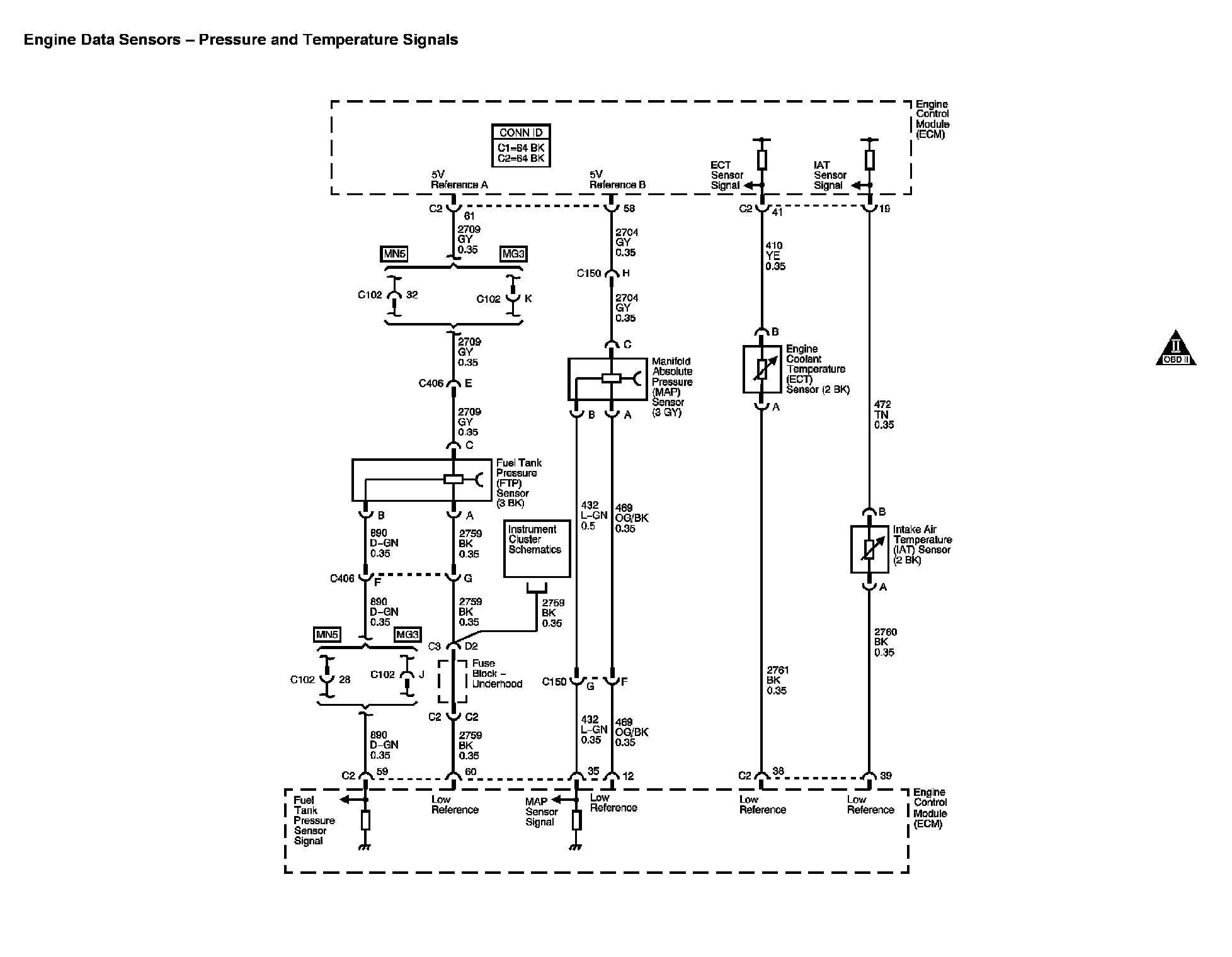

Engine Data Sensors - Pressure and Temperature Sensors

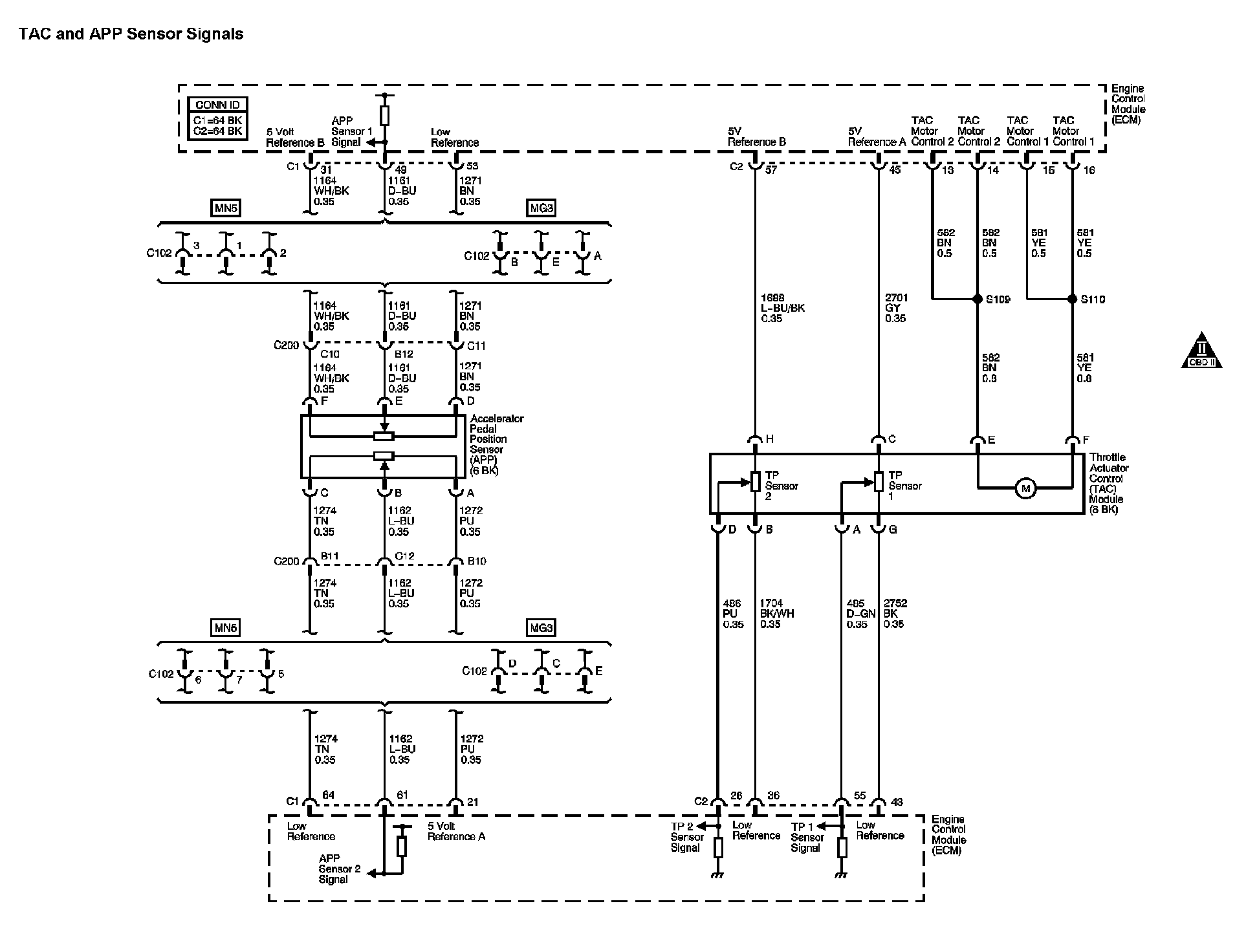

TAC and APP Sensor Signals

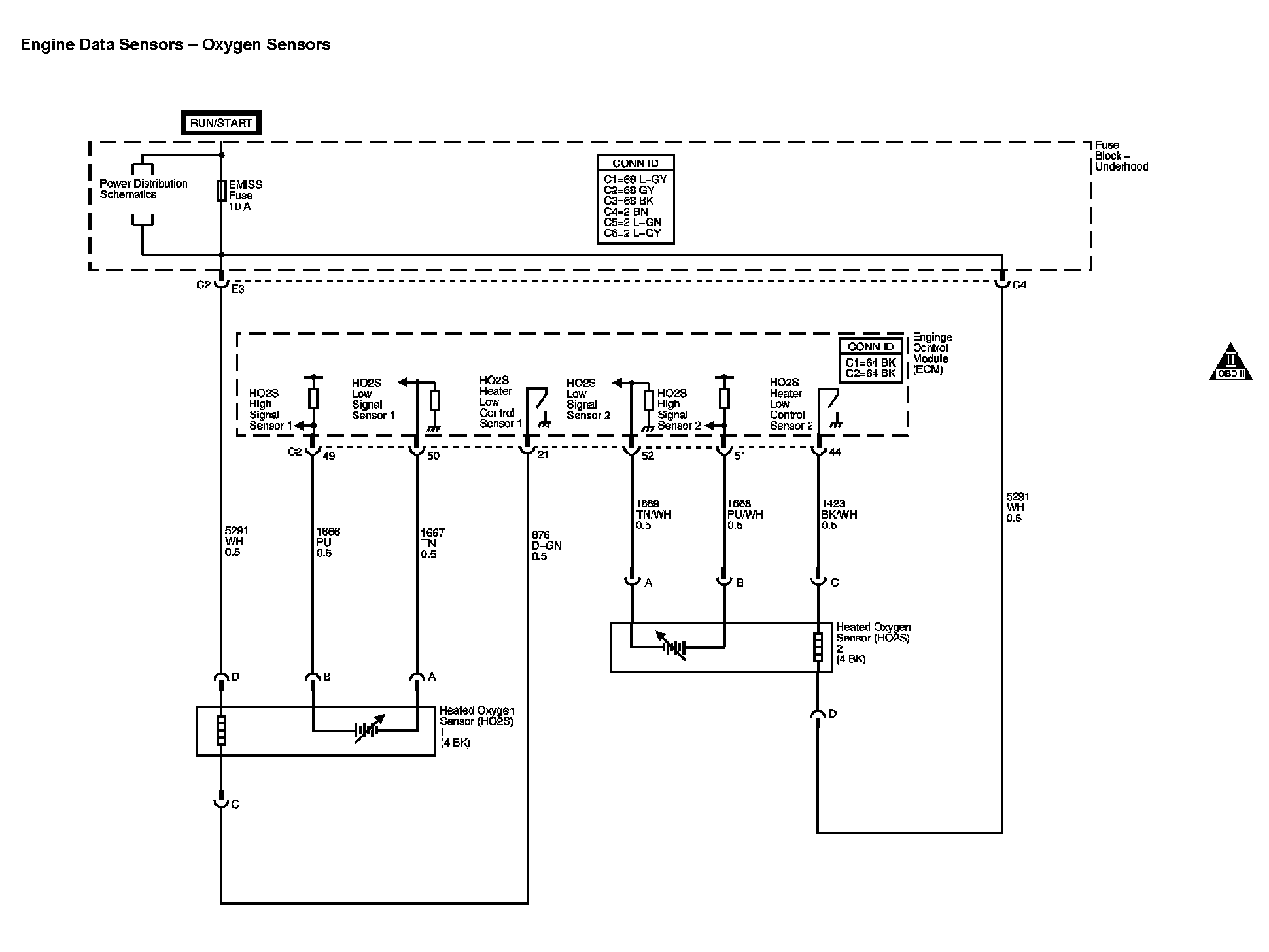

Engine Data Sensors - Oxygen Sensors







Ignition Controls

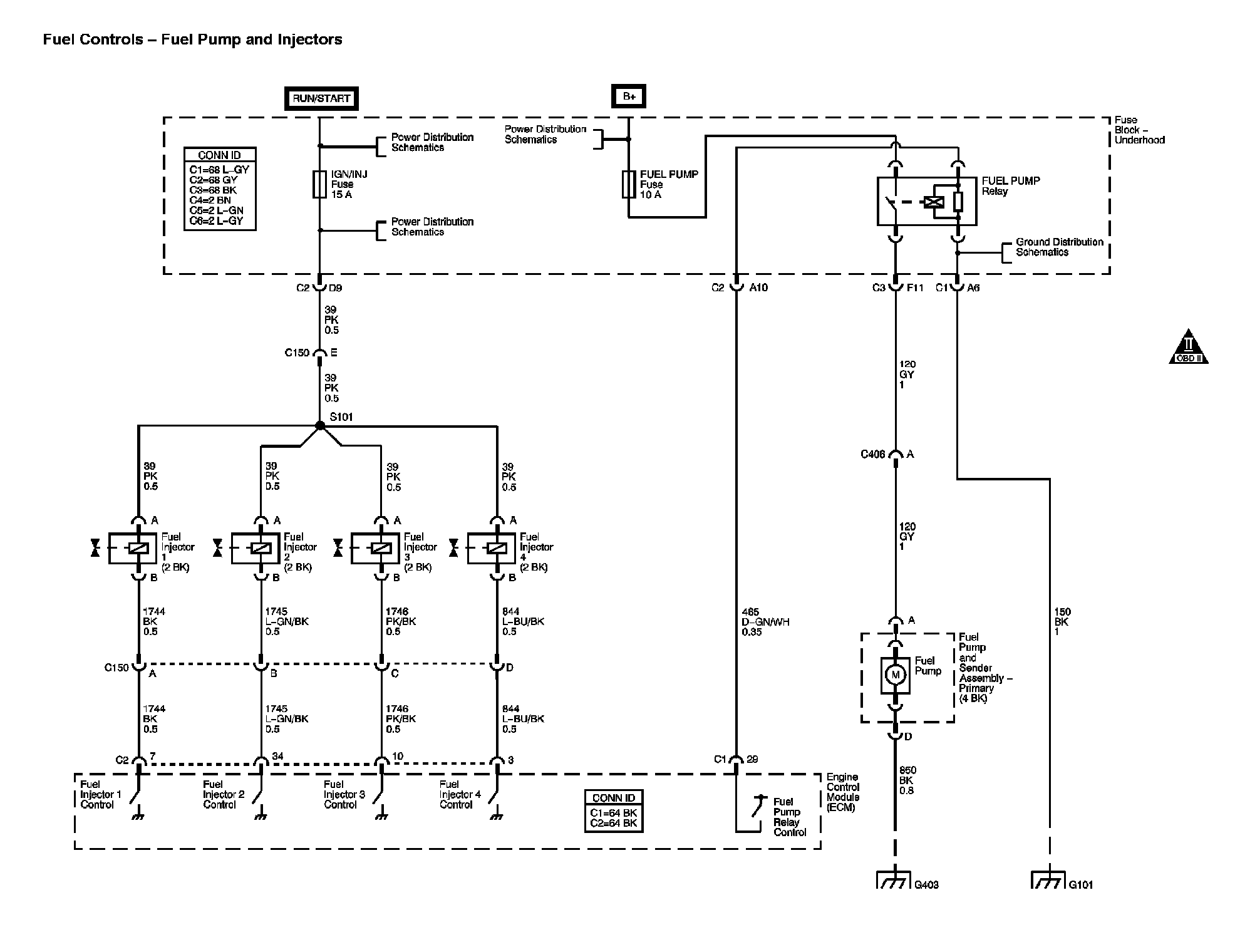

Fuel Controls - Fuel Pump and Injectors

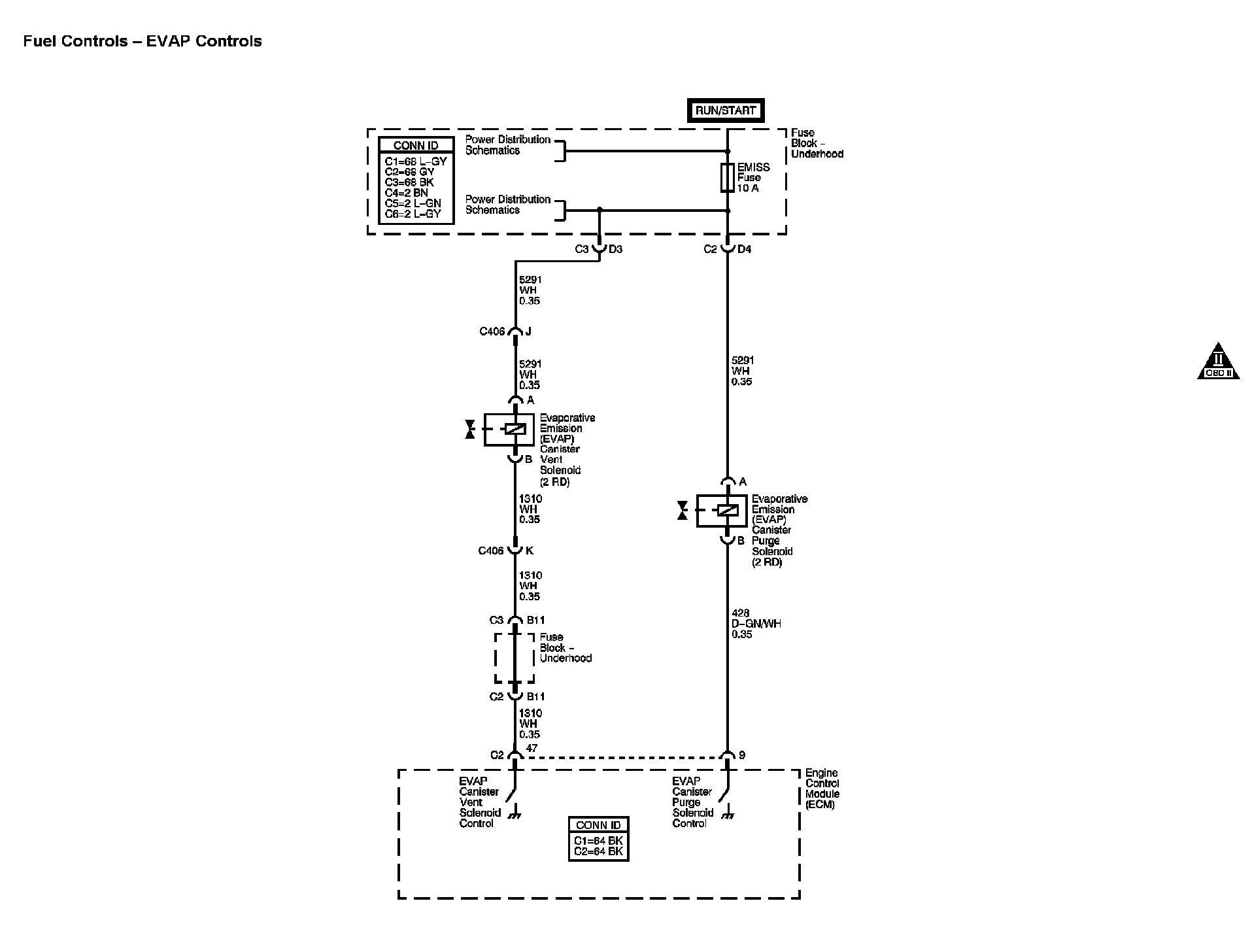

Fuel Controls - EVAP Controls

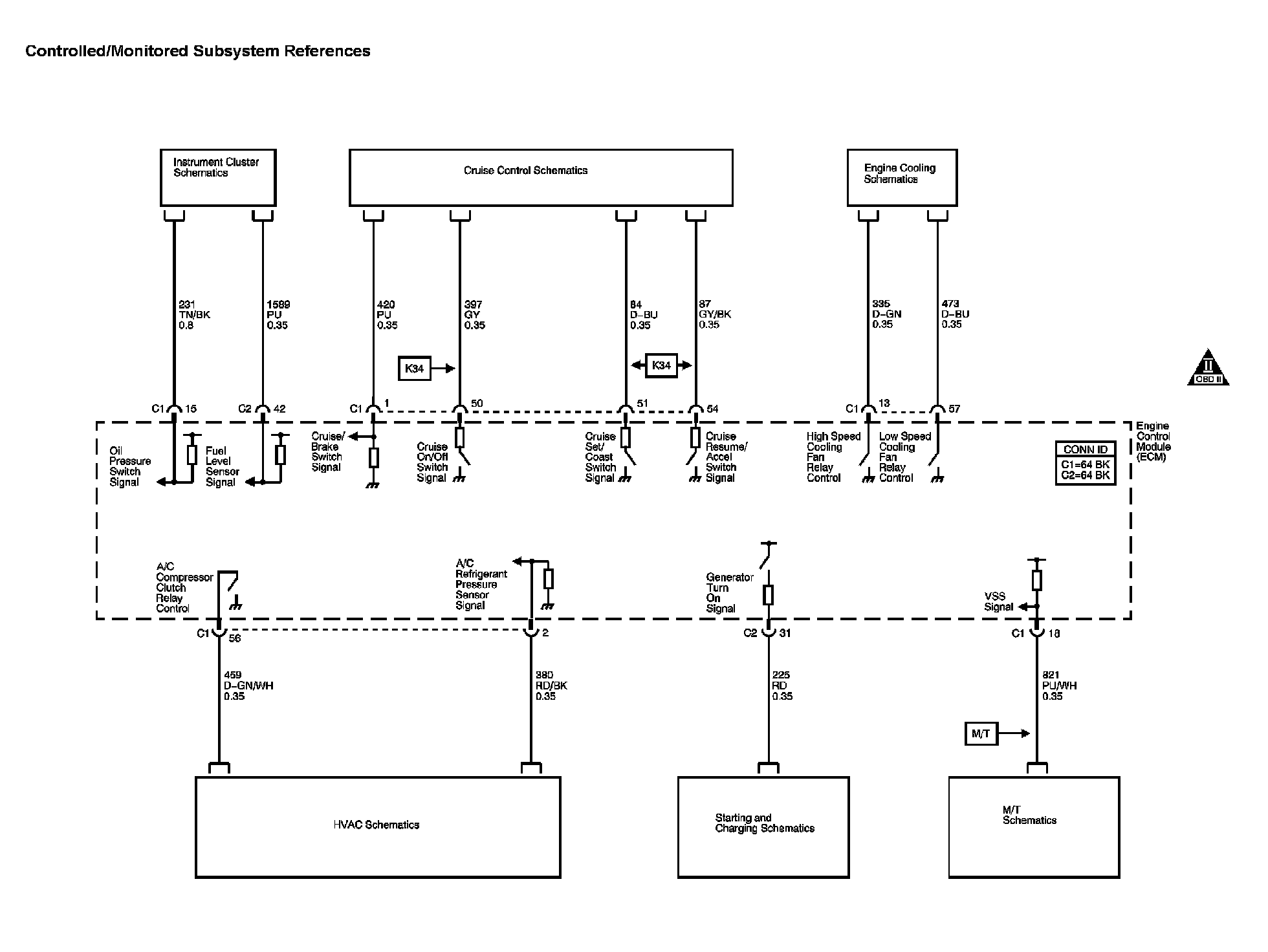

Controlled/Monitored Subsystem References







Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
