System Diagram



Hybrid Cooling Connector End Views

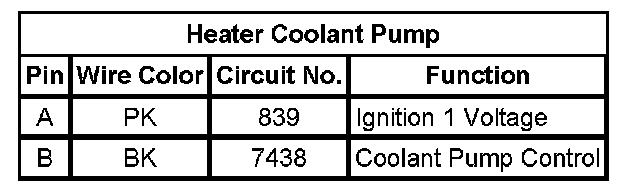

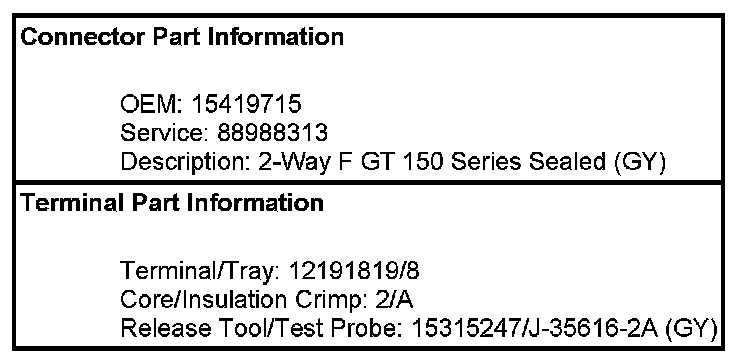

Heater Coolant Pump














Pump Driver

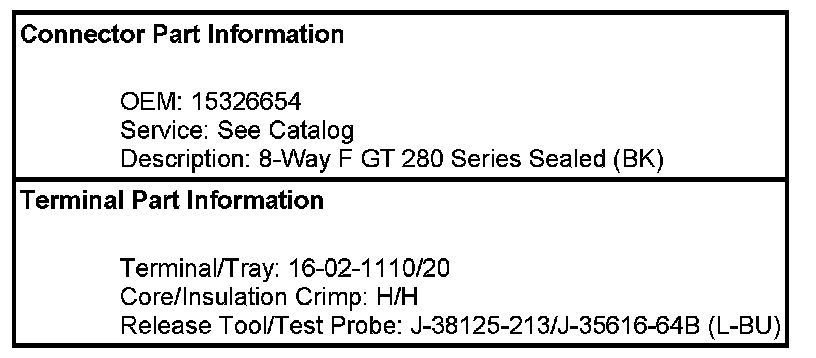

Starter Generator Control Module (SGCM) Coolant Pump

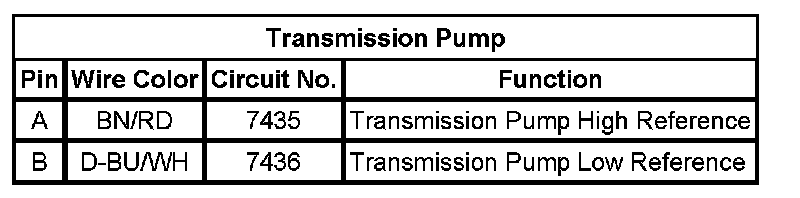

Transmission Pump
