Ignition Coil



Engine Controls Connector End Views

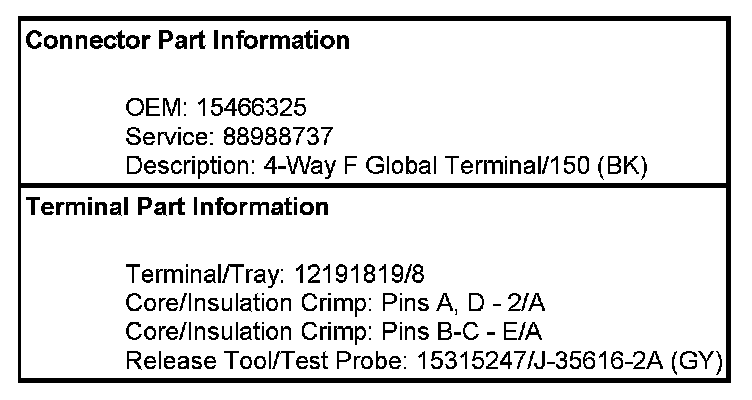

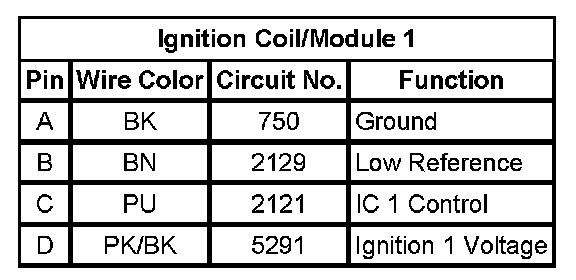

Ignition Coil/Module 1

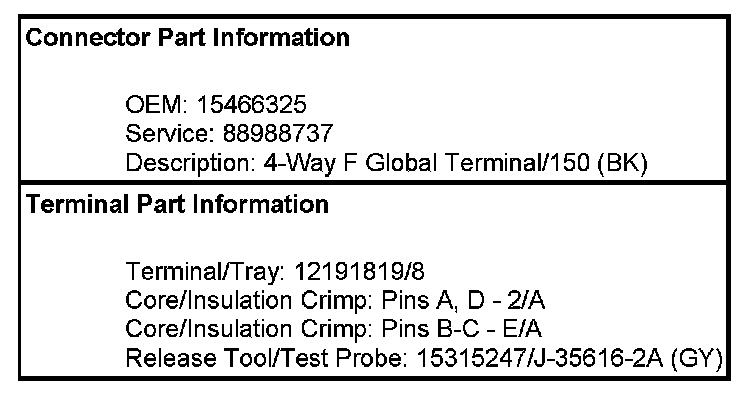

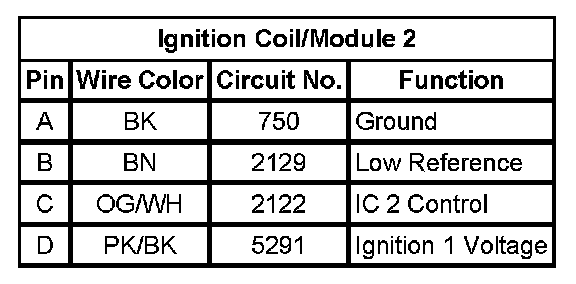

Ignition Coil/Module 2

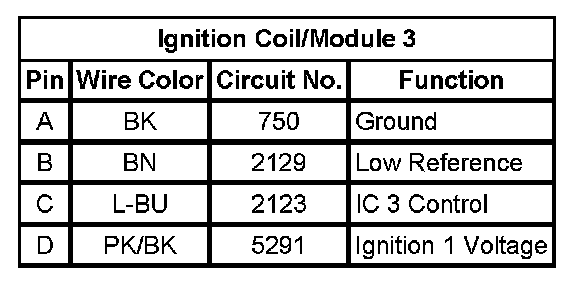

Ignition Coil/Module 3

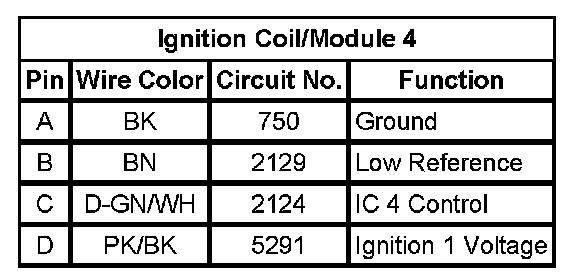

Ignition Coil/Module 4
