Drive Motor Control Module



Hybrid Controls Connector End Views

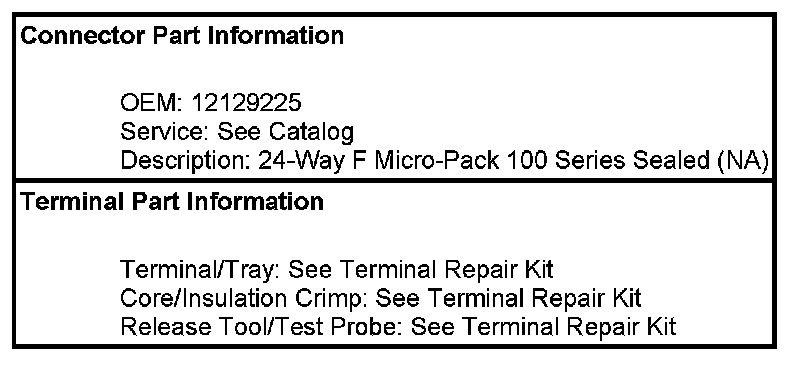

Starter Generator Control Module (SGCM) C1

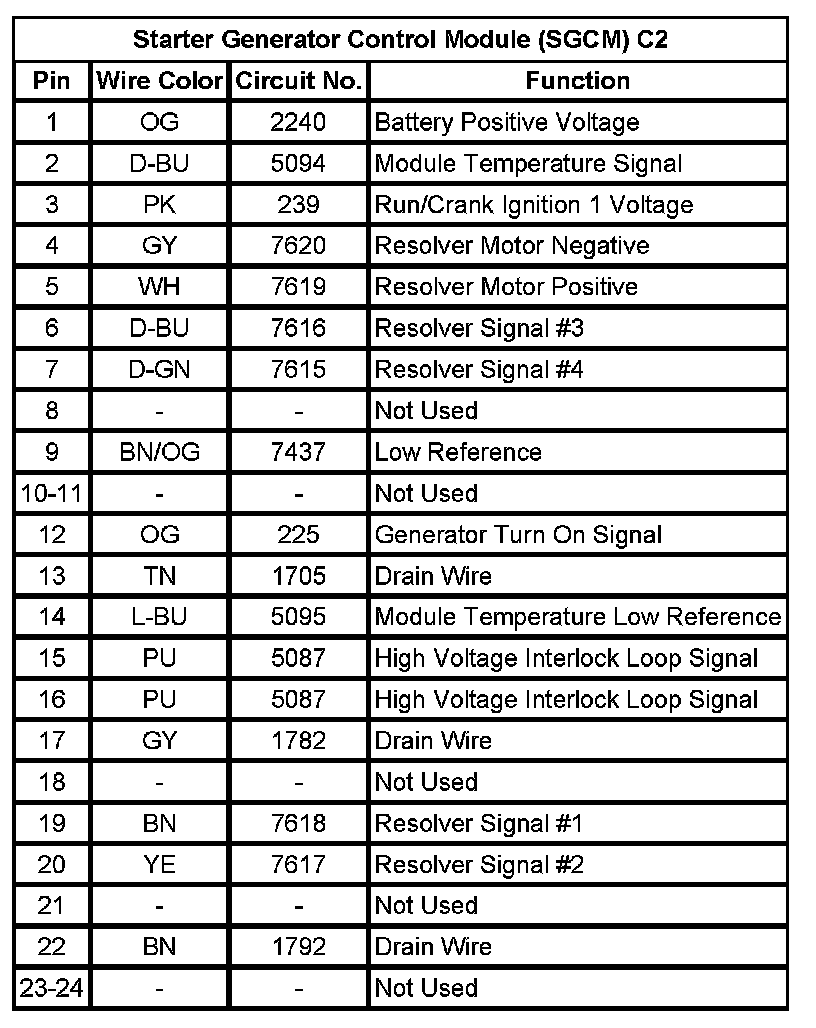

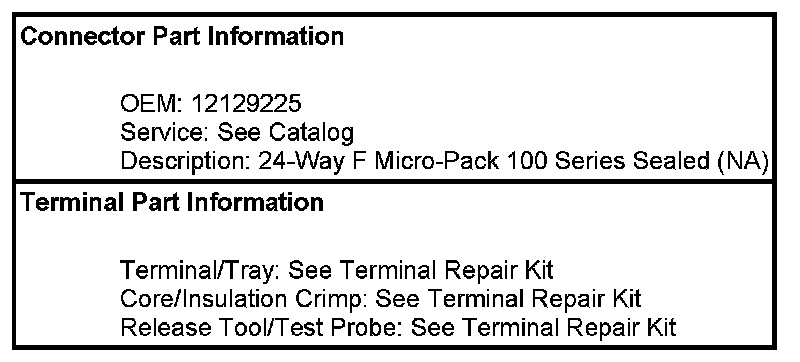

Starter Generator Control Module (SGCM) C2
