Drive Motor/Generator: Diagrams



Hybrid Controls Connector End Views

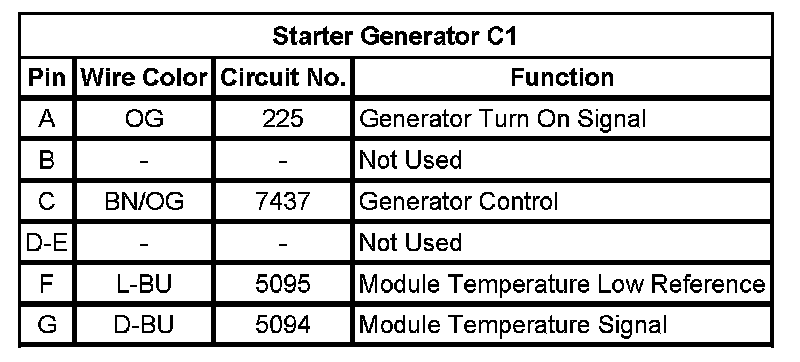

Starter Generator C1

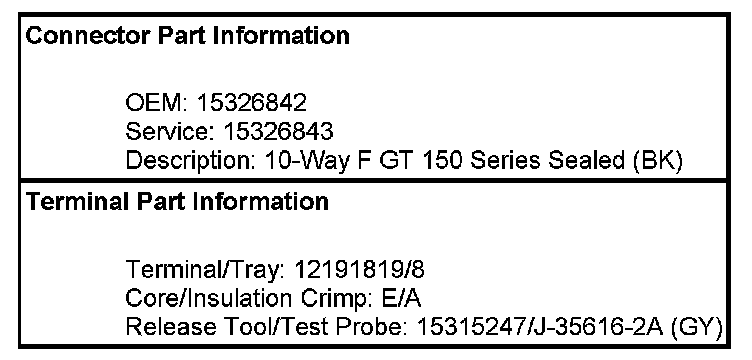

Starter Generator C2
