Home >> Saturn >> 2007 >> Aura V6-3.6L >> Repair and Diagnosis >> Specifications >> Electrical Specifications >> Automatic Transmission/Transaxle >> System Specifications >> 4T45-E Automatic Transaxle >> Transmission Fluid Pressure Manual Valve Position Switch Logic

Transmission Fluid Pressure Manual Valve Position Switch Logic



Transmission Fluid Pressure Manual Valve Position Switch Logic

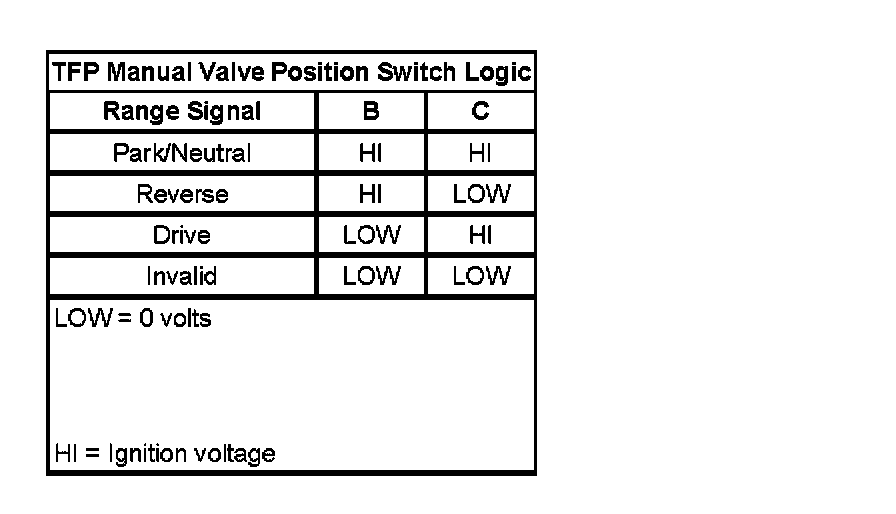

Transmission Fluid Pressure Manual Valve Position Switch Logic:
