Home >> Saturn >> 2007 >> Aura V6-3.6L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Service and Repair >> Overhaul >> 6T70/6T75 - Automatic Transaxle >> Assemble, Disassemble, and Installation >> Case Cover Assembly Assemble

Case Cover Assembly Assemble

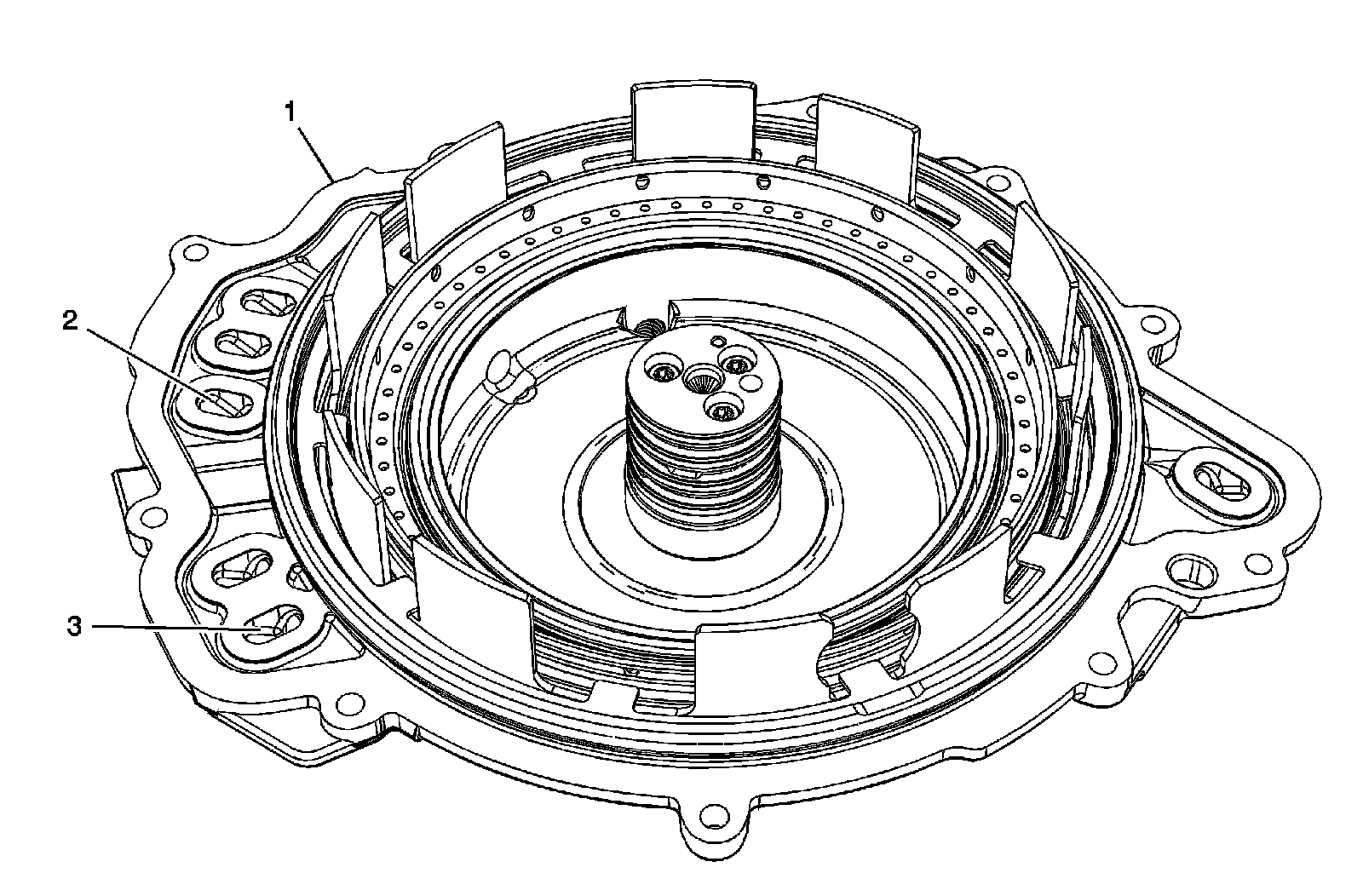

Case Cover Assembly Assemble

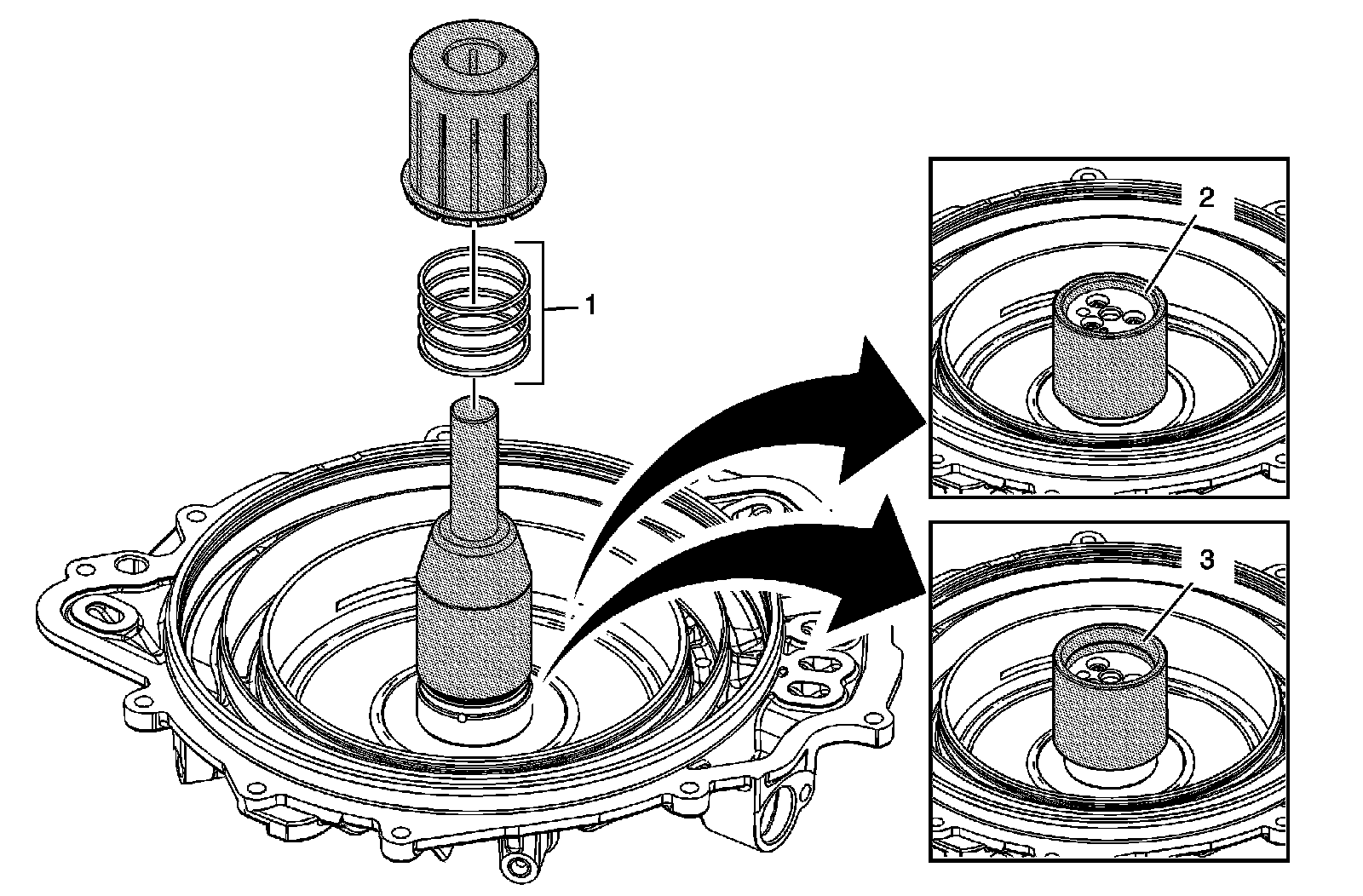

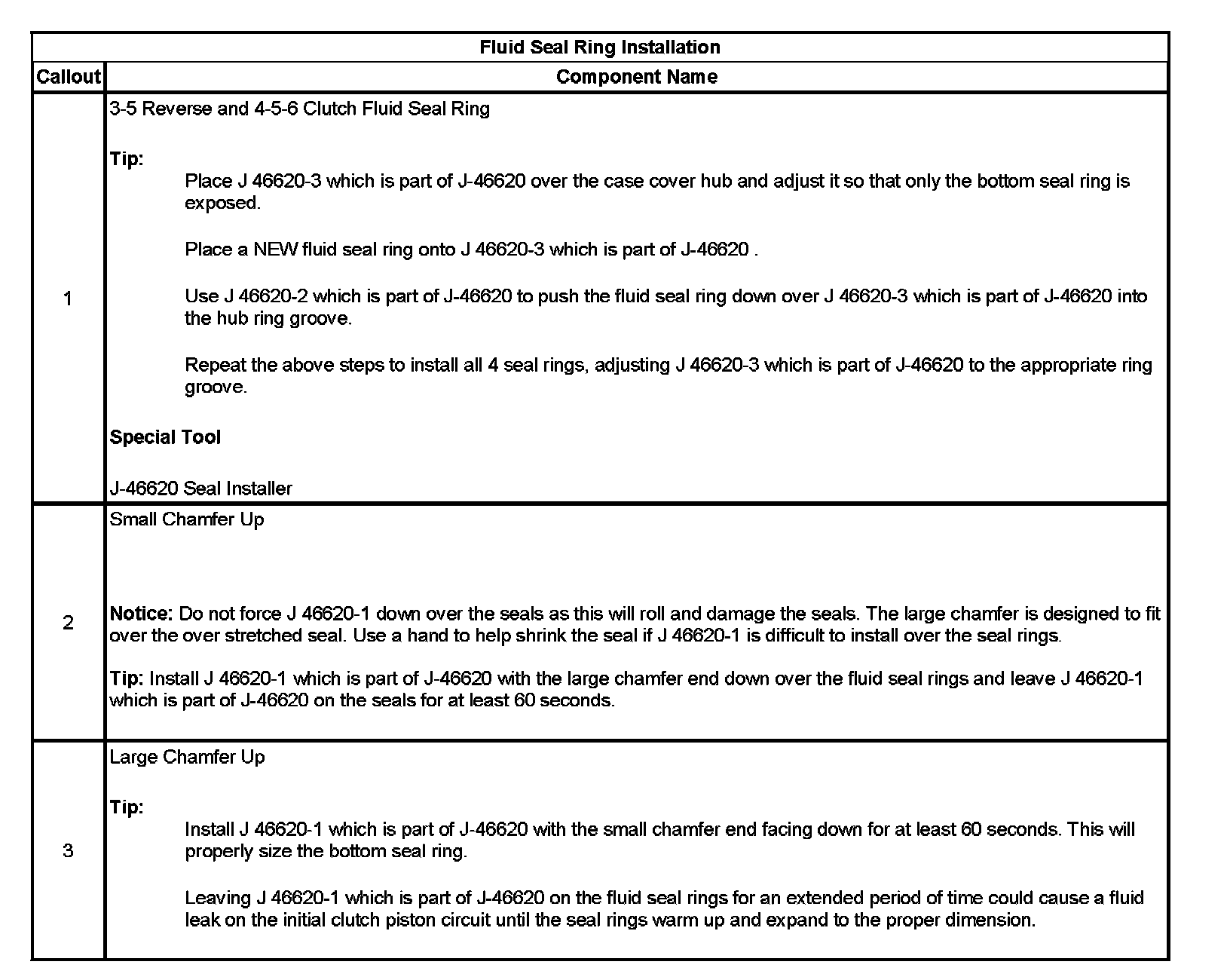

Fluid Seal Ring Installation








2-6 Clutch Piston Installation








Low and Reverse Clutch Piston Installation








2-6 and Low-Reverse Piston Function Inspection








Input Speed Sensor Installation
