Control Valve Body Assembly Installation



Control Valve Body Assembly Installation

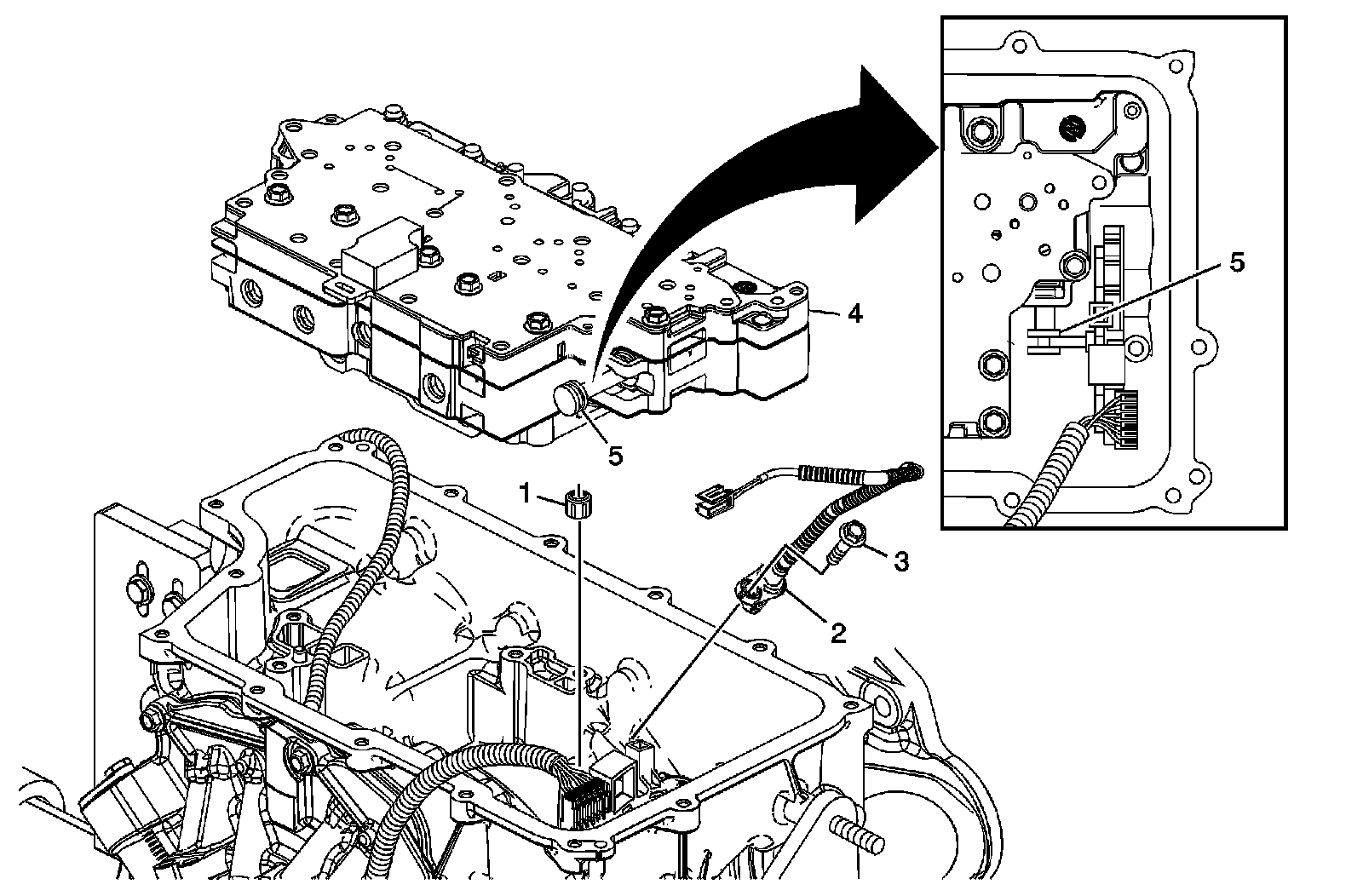

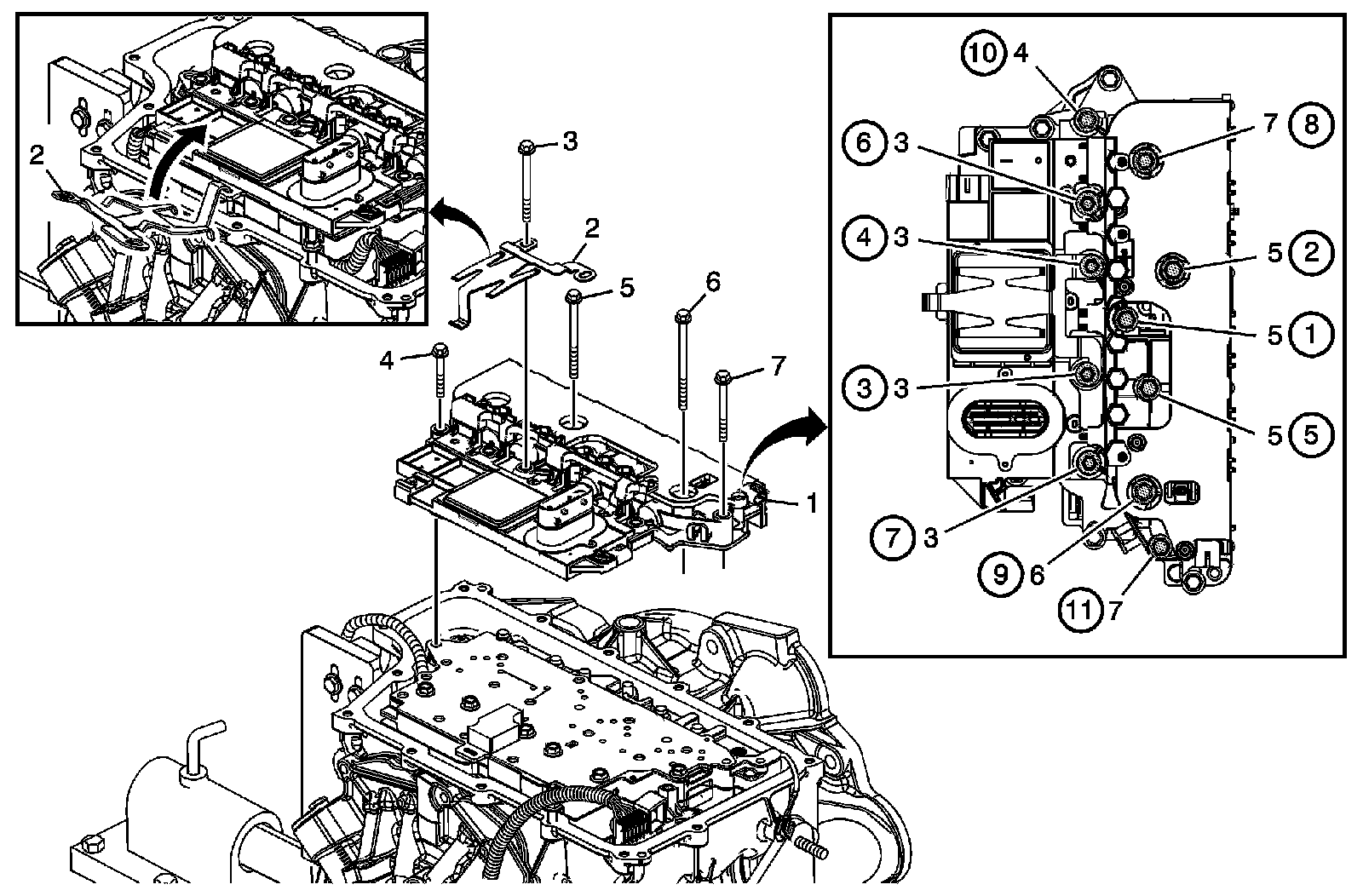

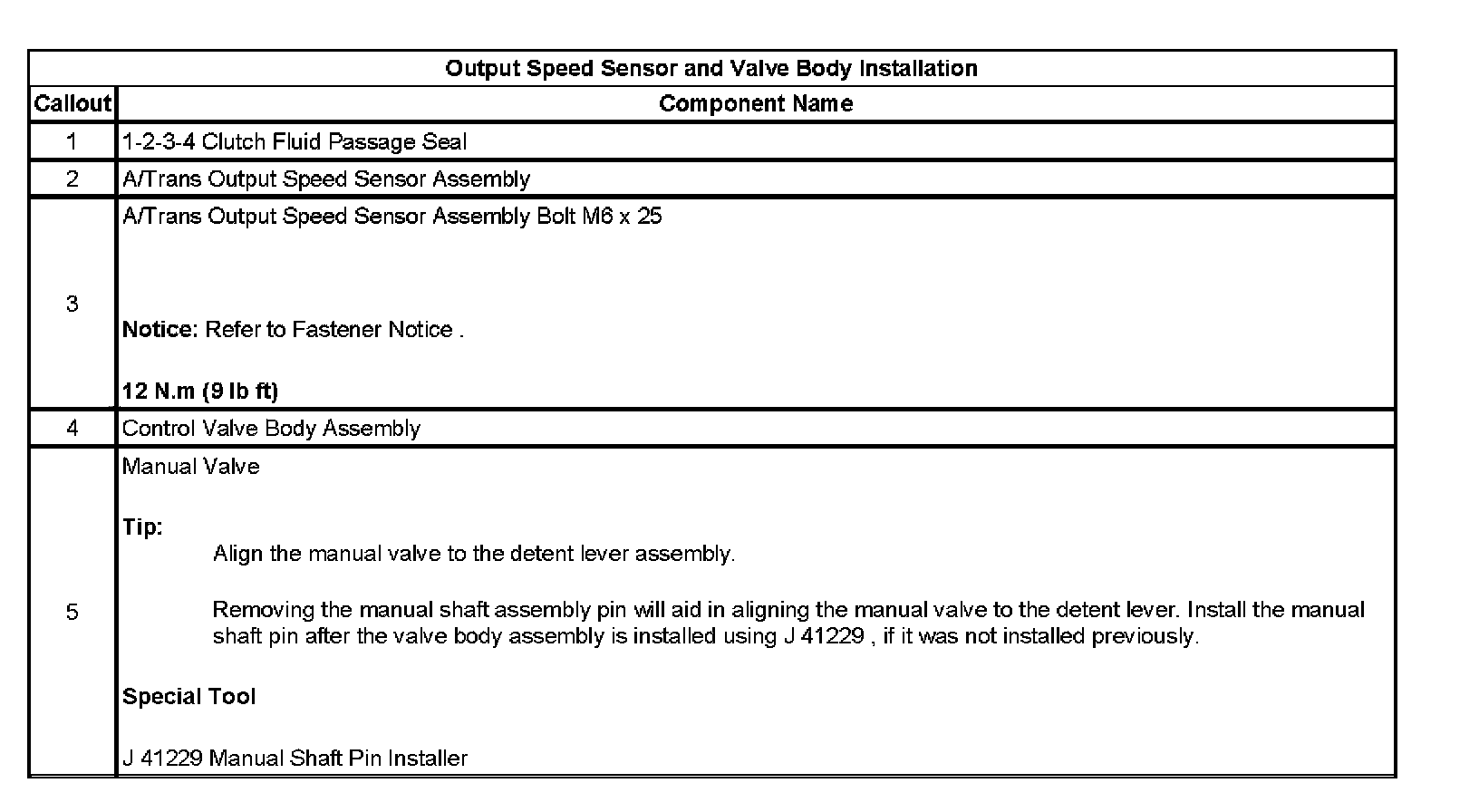

Output Speed Sensor and Valve Body Installation

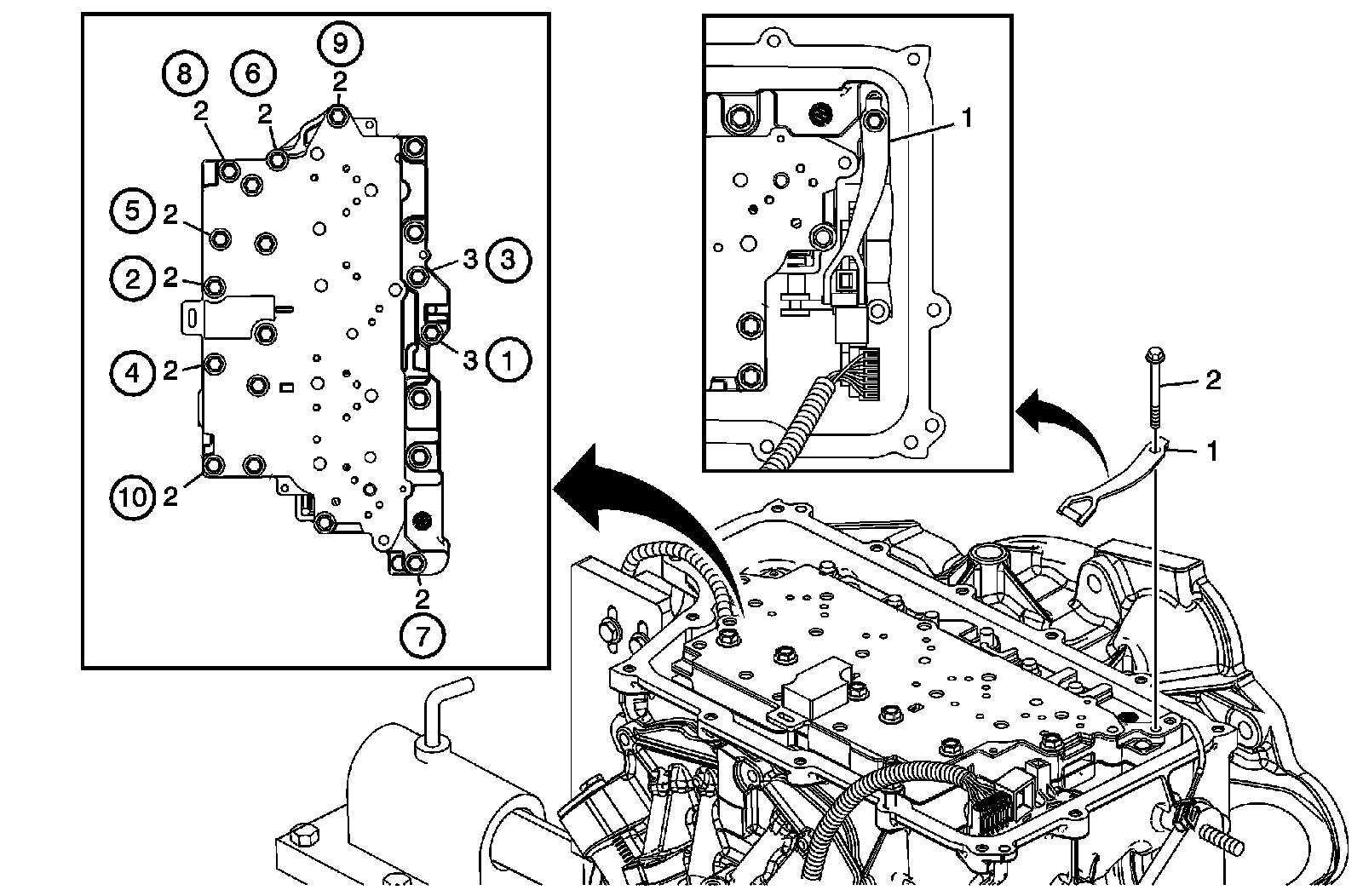

Control Valve Body Bolts Installation

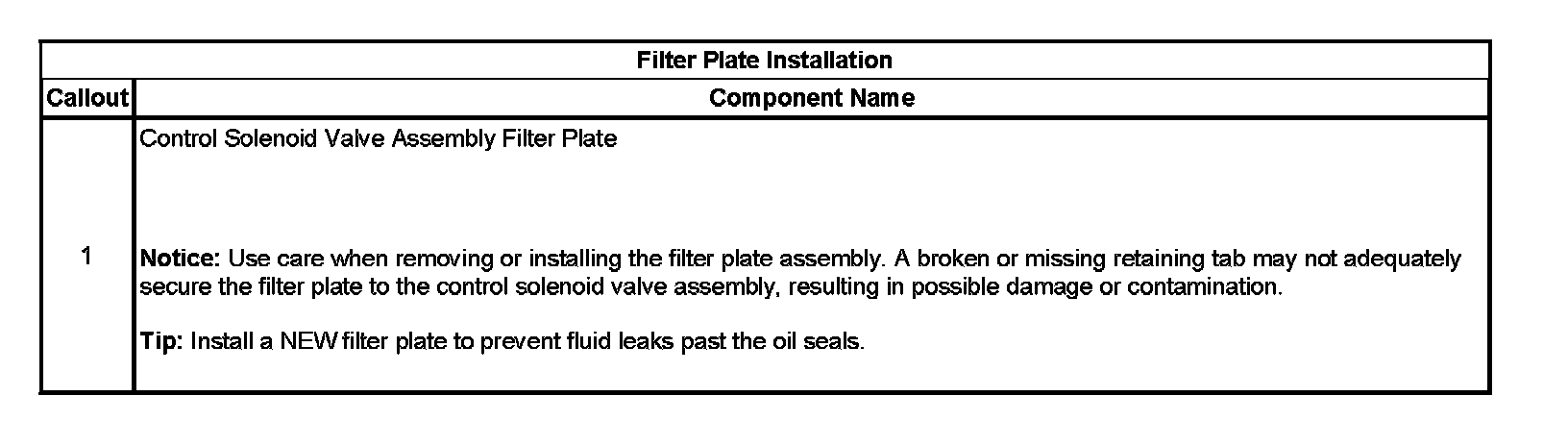

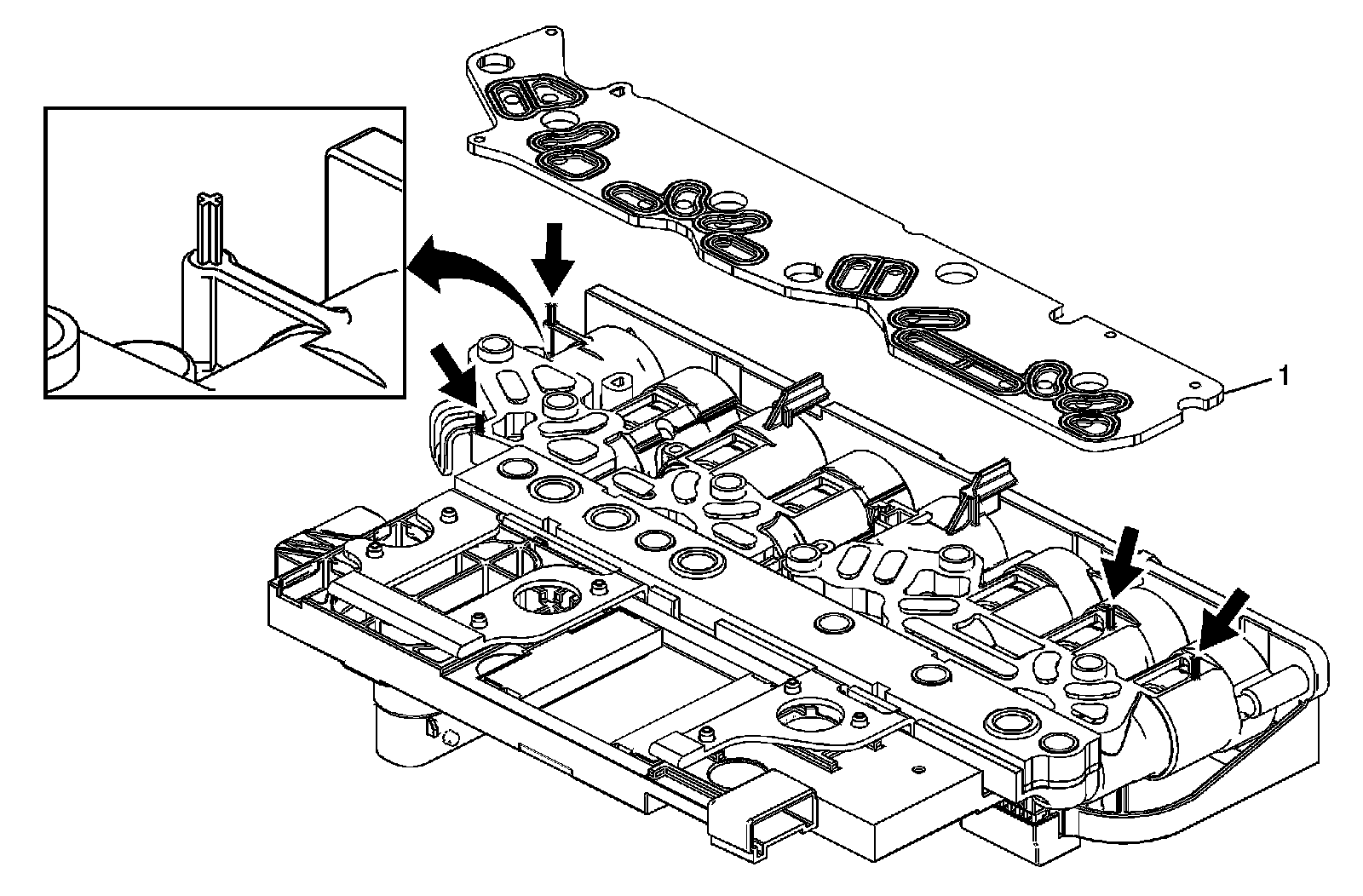

Filter Plate Installation

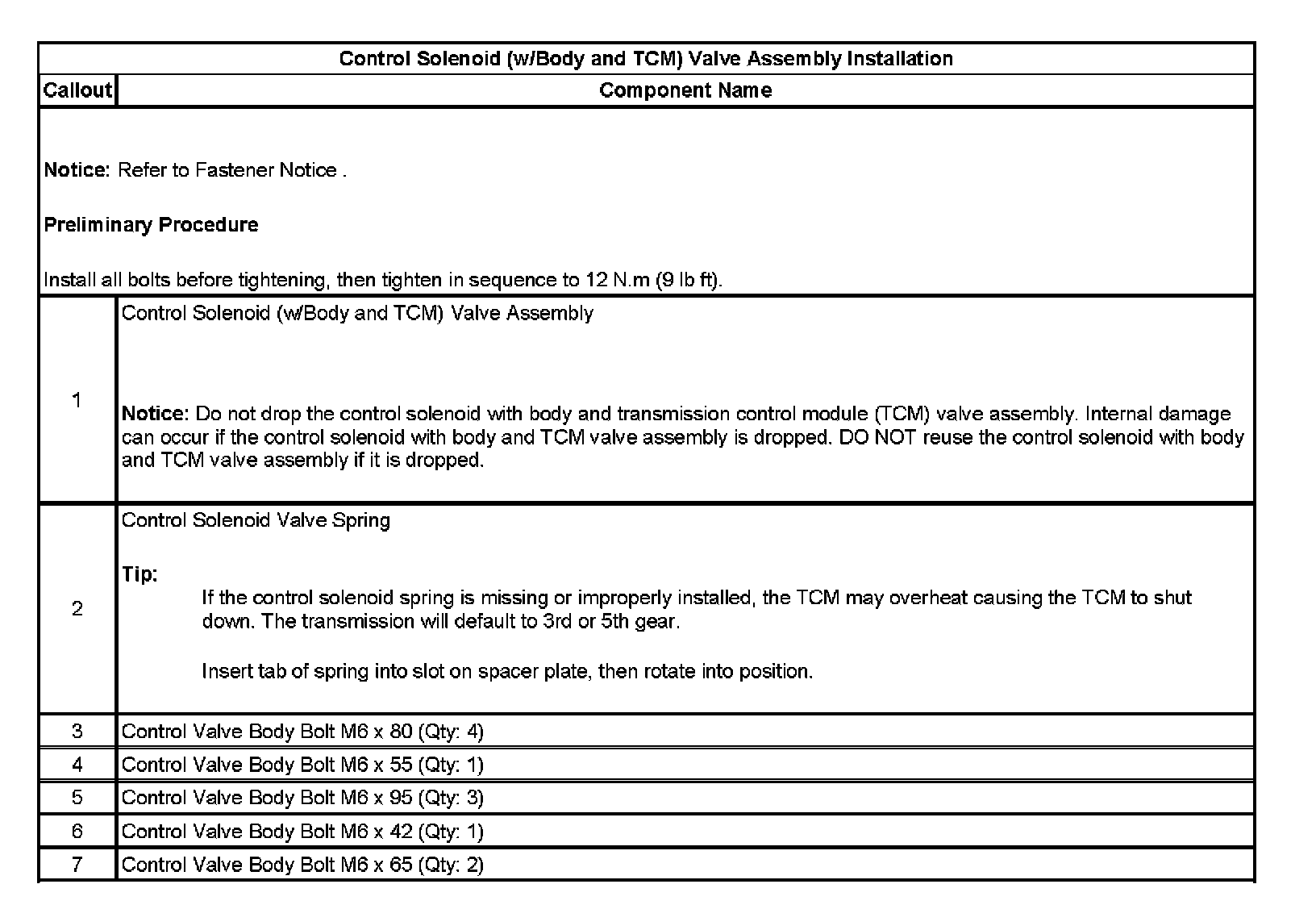

Control Solenoid (w/Body and TCM) Valve Assembly Installation

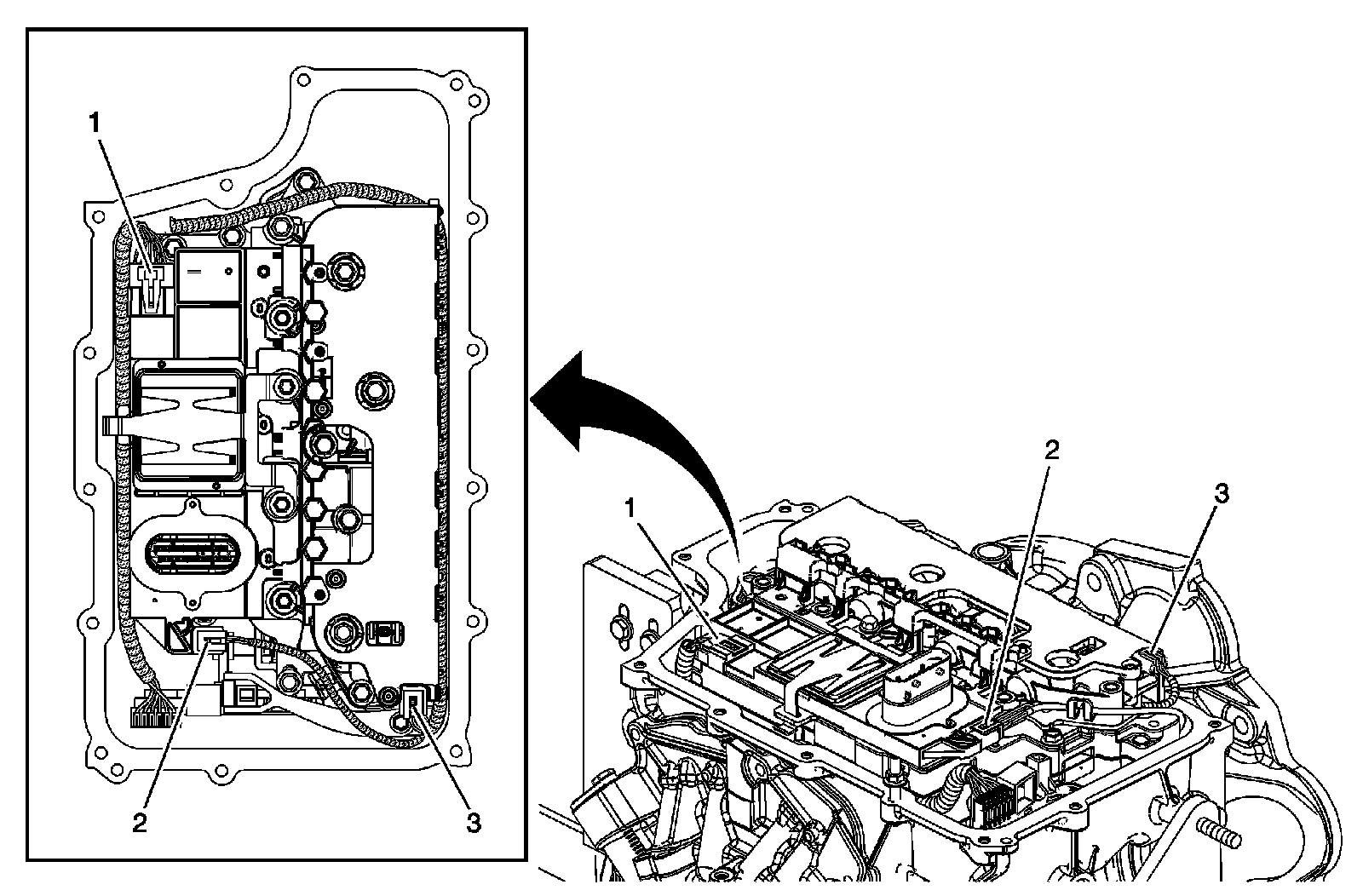

Wire Routing and Connector Locations

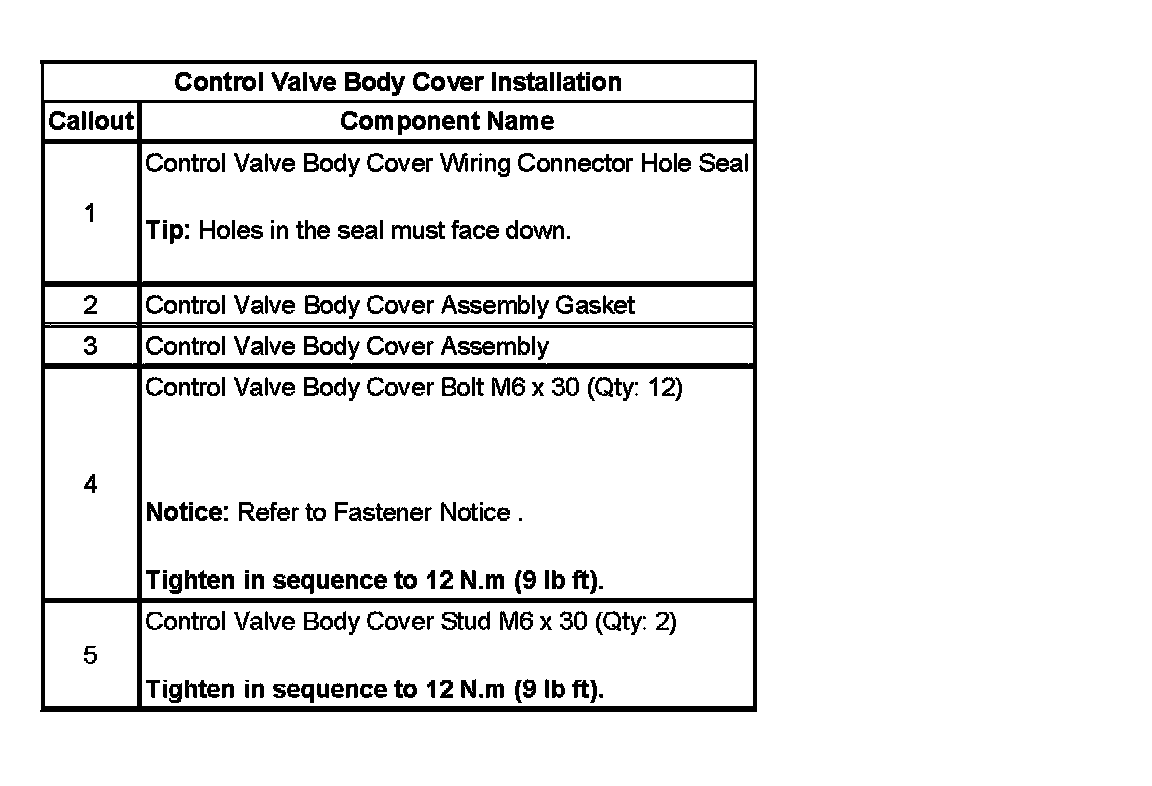

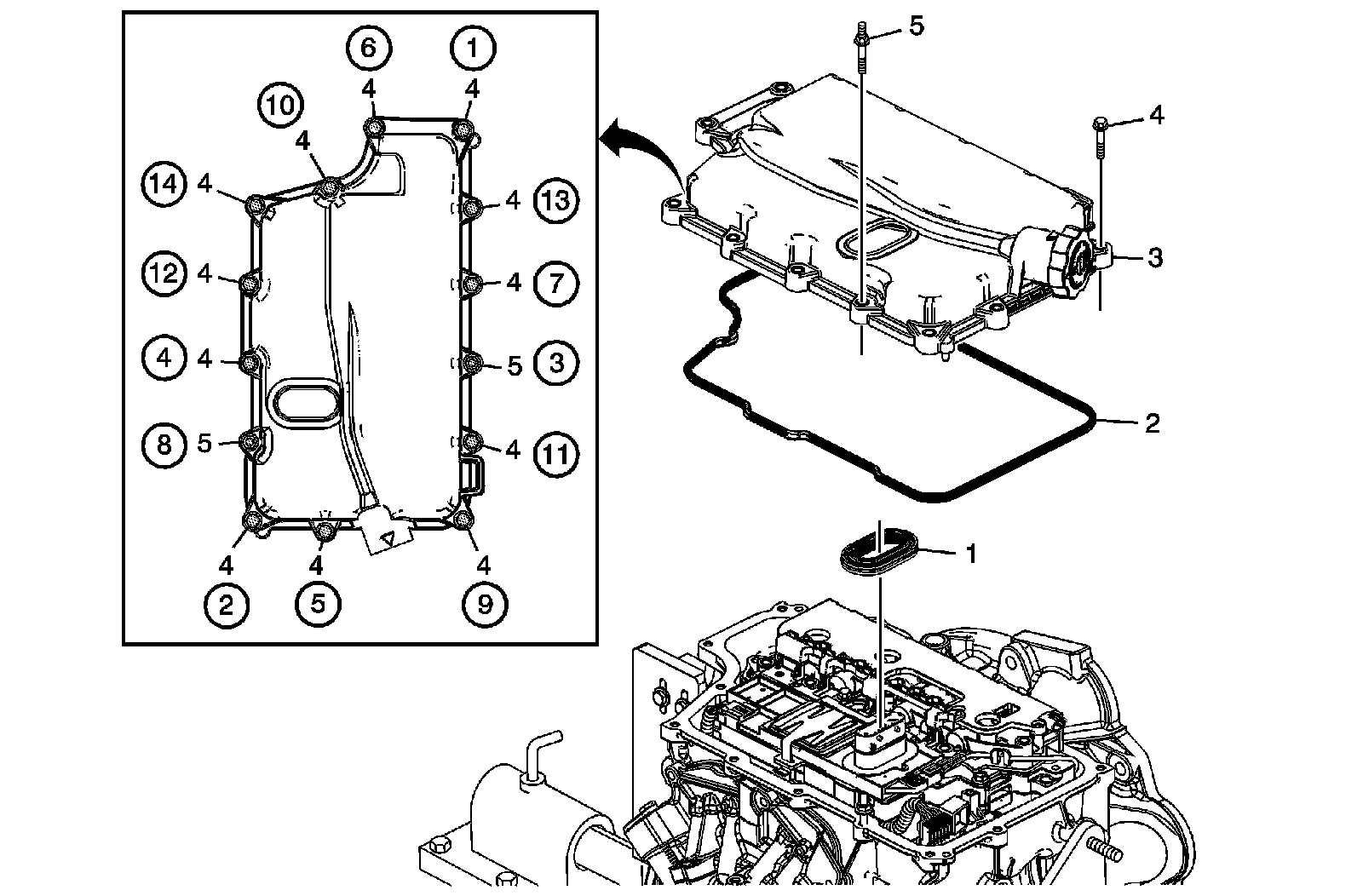

Control Valve Body Cover Installation
