Home >> Saturn >> 2007 >> Aura V6-3.6L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Service and Repair >> Overhaul >> 6T70/6T75 - Automatic Transaxle >> Assemble, Disassemble, and Installation >> Front Differential Transfer Drive Gear Support Assembly Assemble

Front Differential Transfer Drive Gear Support Assembly Assemble



Front Differential Transfer Drive Gear Support Assembly Assemble

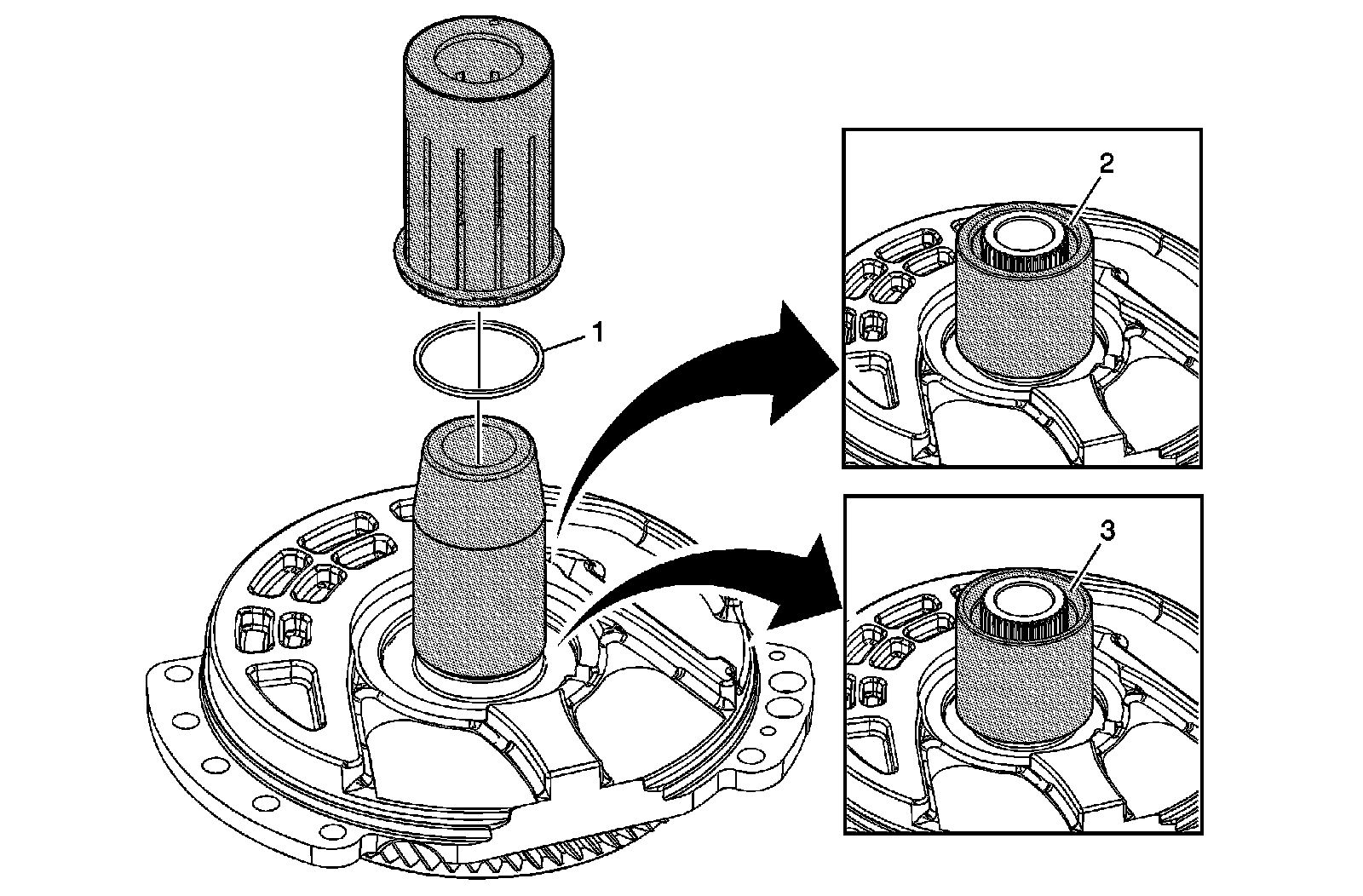

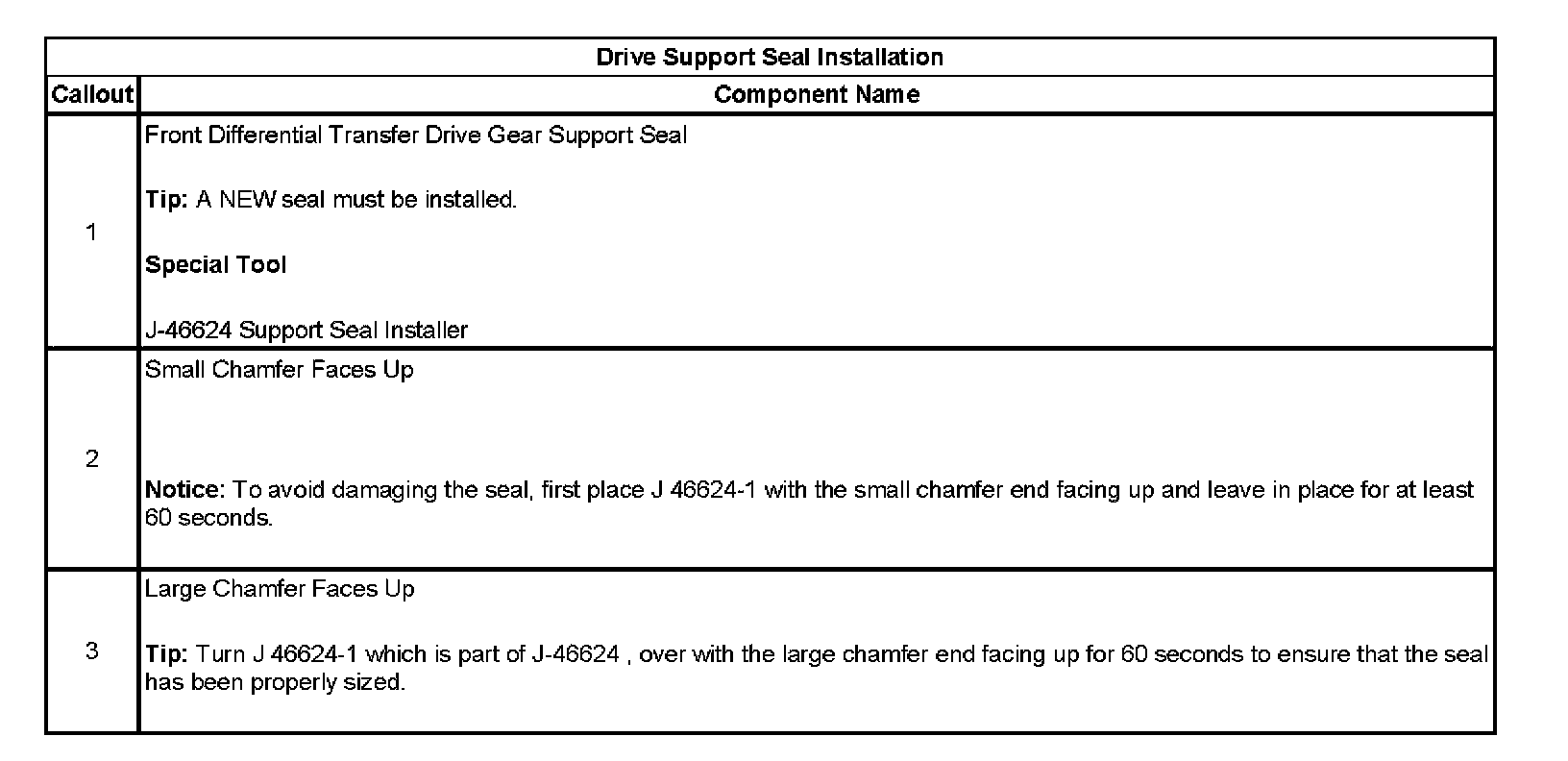

Drive Support Seal Installation

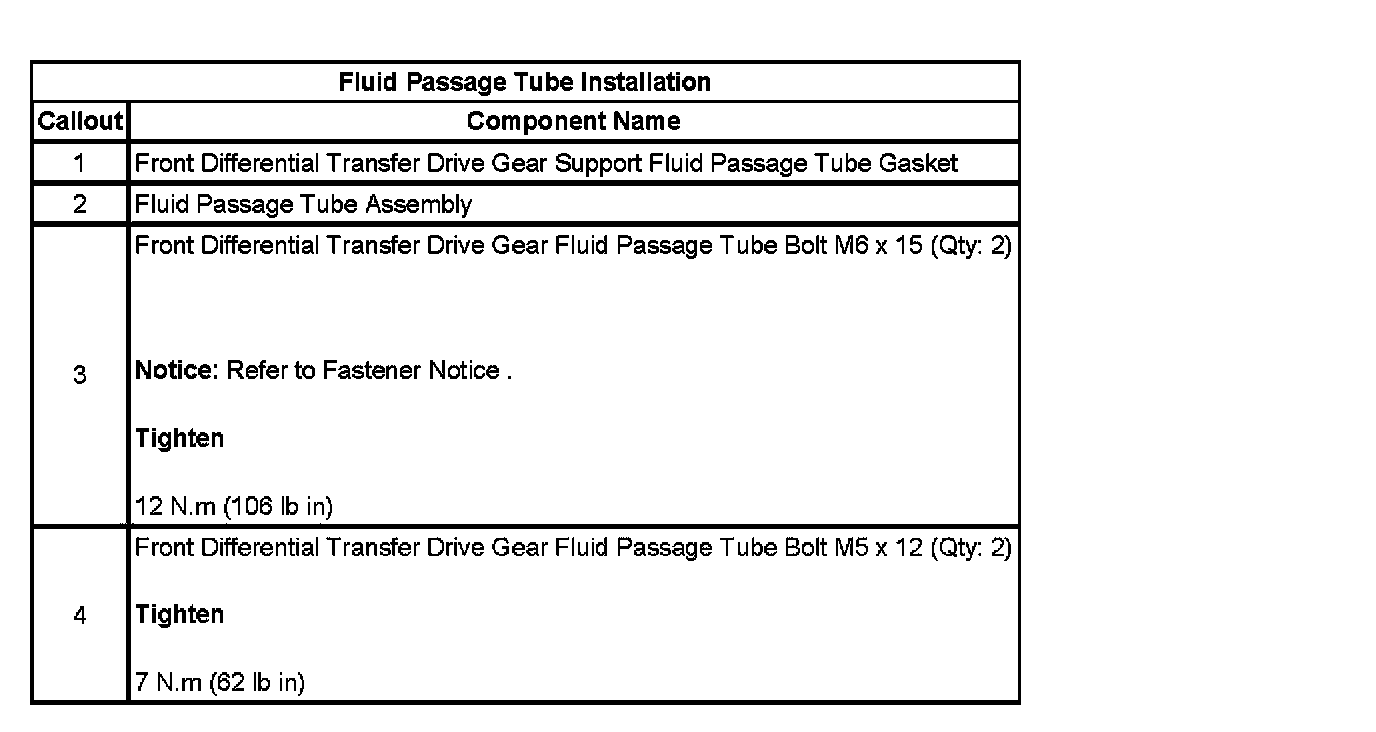

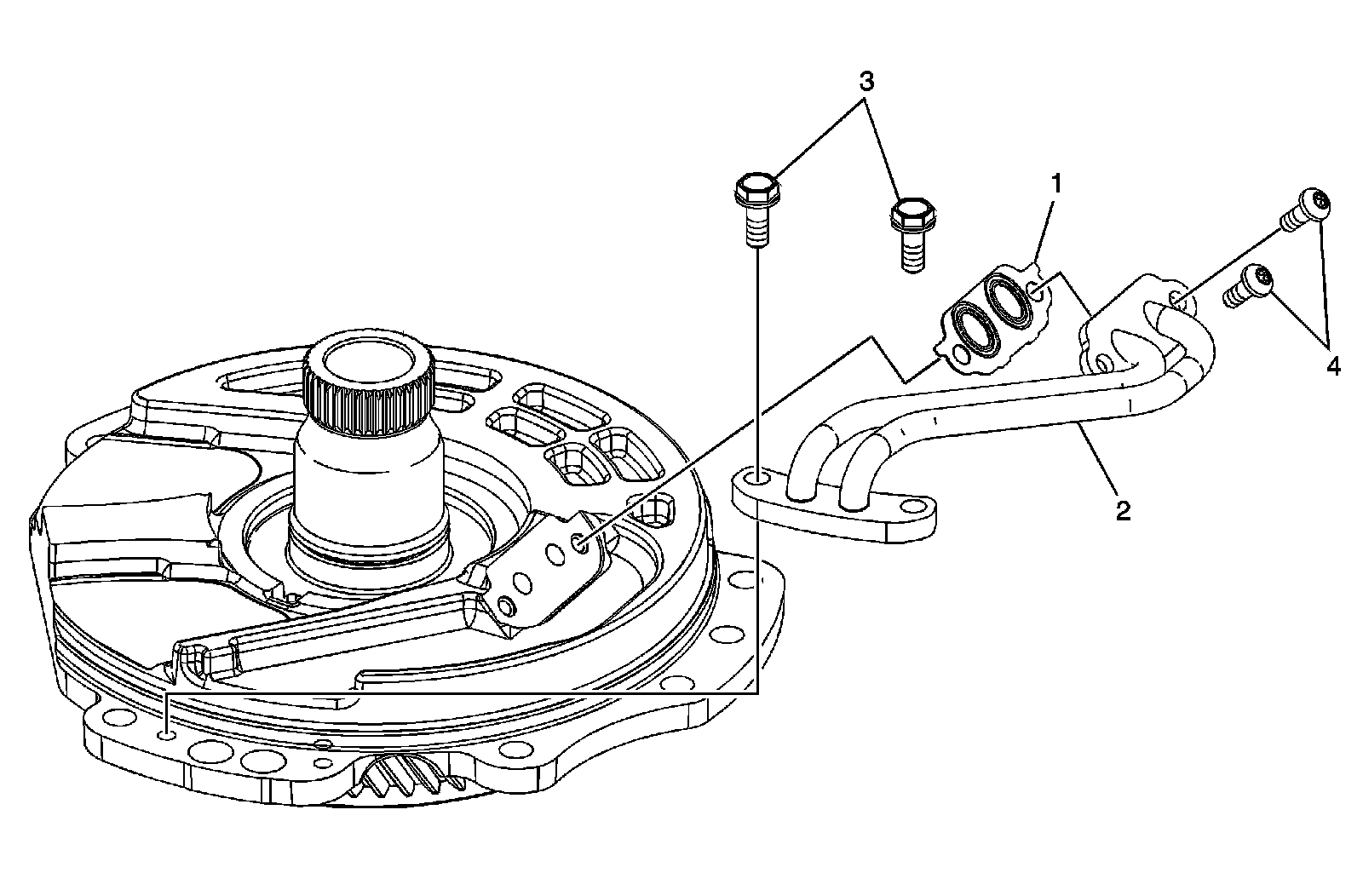

Fluid Passage Tube Installation

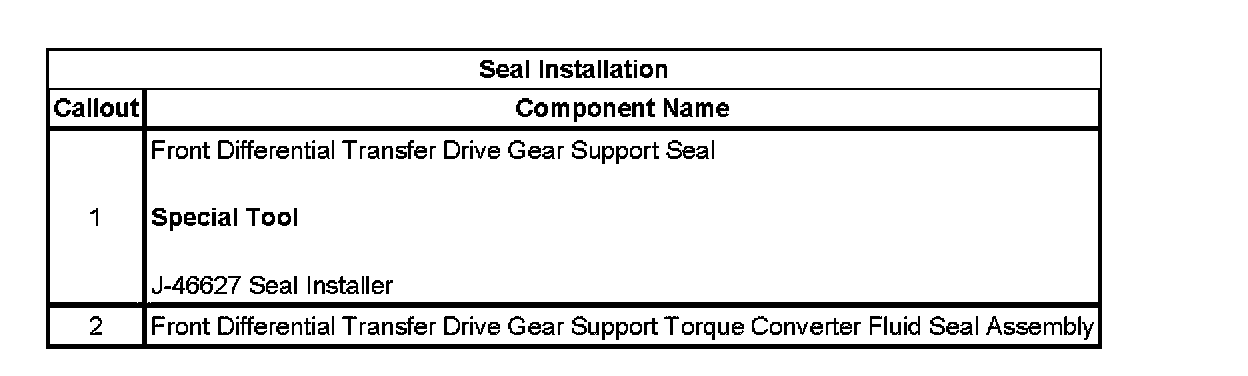

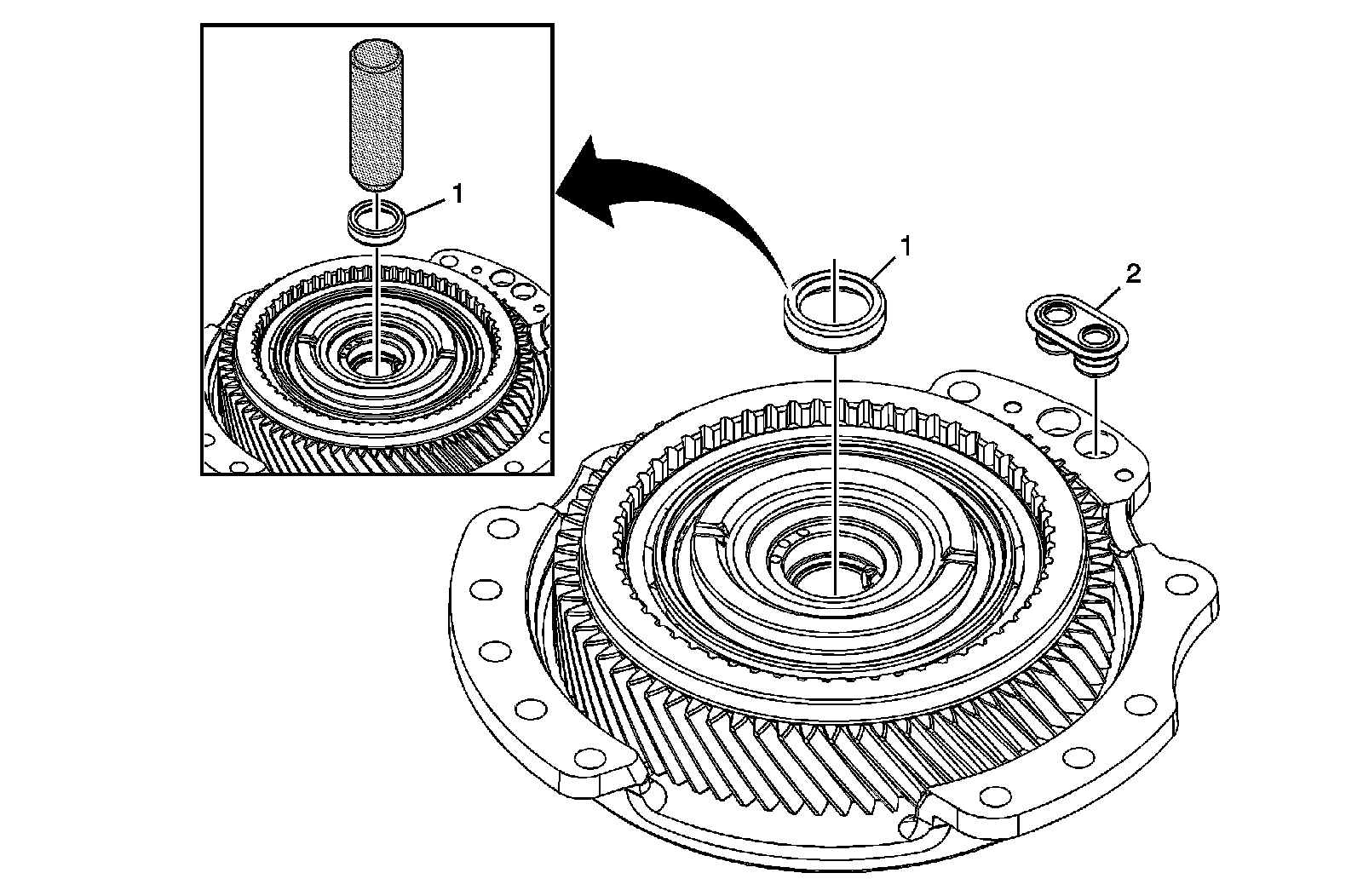

Seal Installation
