Instrument Panel Accessory Trim Plate Replacement

Instrument Panel Accessory Trim Plate Replacement

Removal Procedure

1. Remove the front floor console cup holder assembly.




2. Pull out on the accessory trim plate in order to release the retaining fasteners.

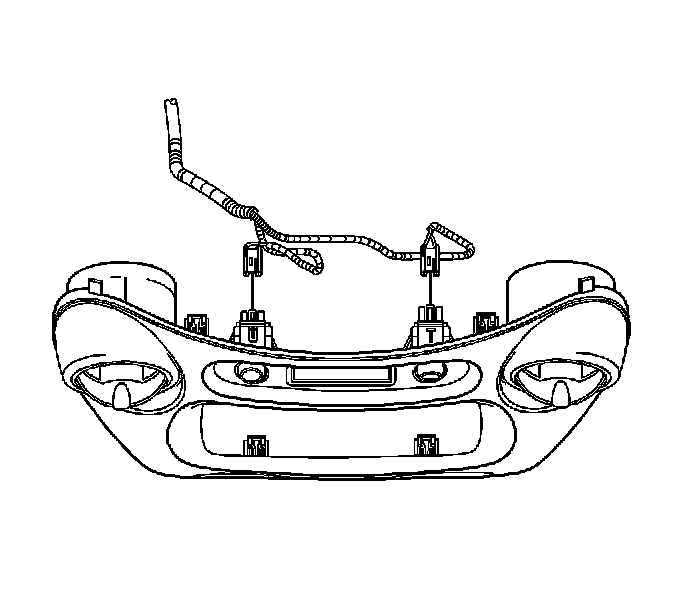

3. Disconnect the accessory trim plate electrical connector(s).

Installation Procedure




1. Connect the accessory trim plate electrical connector(s).




2. Align the retaining fasteners with the I/P.
3. Push on the outer edge of the accessory trim plate in order to secure the retaining fasteners.
4. Install the front floor console cup holder assembly.
