Front Seat Replacement - Bucket

Front Seat Replacement - Bucket

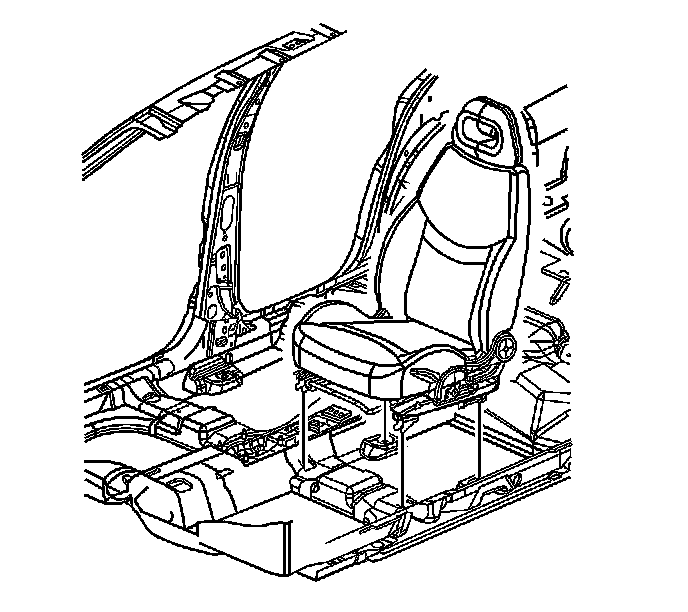

Removal Procedure




1. Position the bucket seat forward in order to gain access to the seat adjuster bolts.
2. Remove the bolts.
3. Disconnect the seat belt wire harness on the driver side.




4. Tilt the seat forward and lift the seat to disengage the front adjuster hooks.
5. On the coupe, remove the seat belt webbing from the guides.
6. Remove the bucket seat.

Installation Procedure




1. Pull up on the adjuster handle of the bucket seat and slide the adjuster tracks fully forward.
2. Position the seat in the vehicle.
3. Tilt the seat forward and slide the front adjuster hooks into the slots in the floor pan.
4. Connect the seat belt wire harness on the driver side.




5. Position the seat fully forward to gain access to the seat adjuster.

Notice: Refer to Fastener Notice.

6. Install the rear adjuster bolts.

Tighten the nuts to 50 N.m (37 lb ft).

7. On the coupe, install the seat belt webbing into the guides.
8. Inspect the seat adjusters for proper operation.

Caution: To avoid personal injuries, re-zero the passenger presence system whenever you remove or replace the seat cushion or trim. Failure to do so may cause the system to malfunction.

9. Re-zero the inflatable restraint passenger presence system whenever the seat cushion or any component of the passenger presence system is removed. Refer to Passenger Presence System Programming and Setup.
