Weatherstrip Replacement - Side Door Opening

Weatherstrip Replacement - Side Door Opening

Removal Procedure




1. Remove the carpet retainer.
2. Remove the door opening weatherstrip by grasping the weatherstrip and pulling it off of the body flange.
3. Remove any adhesive from the body flange using 3M(TM) adhesive remover P/N 8984, or equivalent.

Installation Procedure

1. Apply weatherstrip adhesive GM P/N 12345096 or equivalent to the weatherstrip.

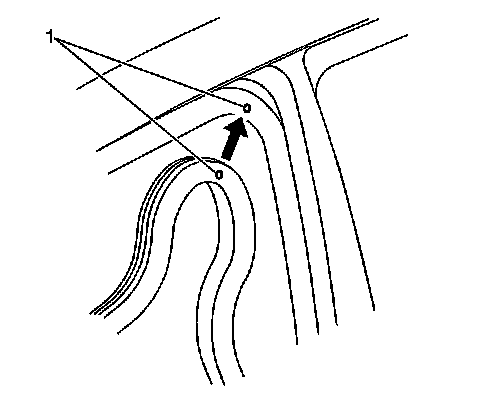

2. Install the door opening weatherstrip by aligning the joint of the weatherstrip along the rearward portion of the door opening. Once aligned, begin installing the weatherstrip at the top rear corner of the opening (1), and pressing the weatherstrip until fully seated.




3. Finish installing the door opening weatherstrip by pressing the weatherstrip into place in a counterclockwise direction around the door opening.
4. Install the carpet retainer.
