Outside Rearview Mirror - Passenger X2

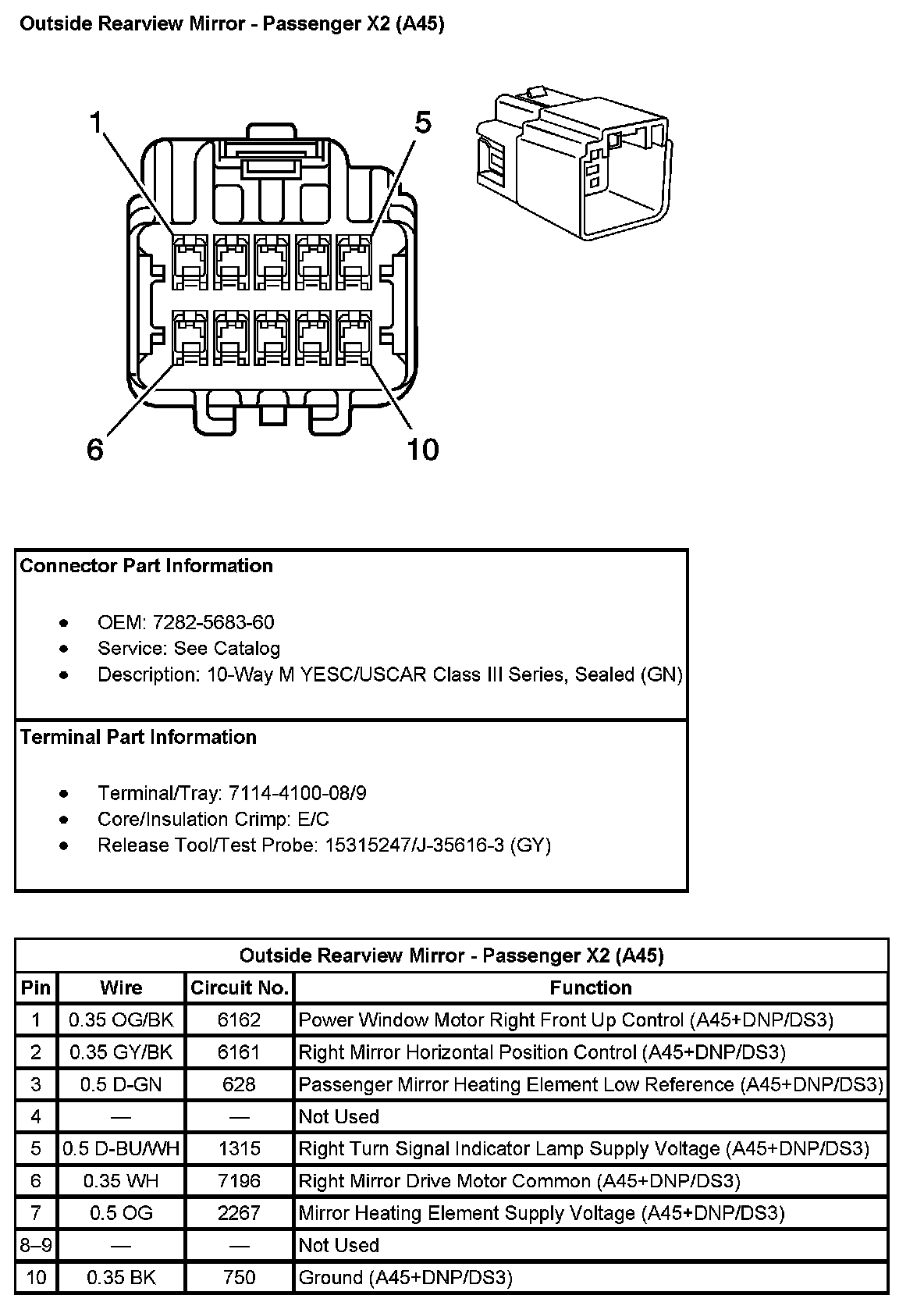

Outside Rearview Mirror - Passenger X2 (With RPO Code A45):

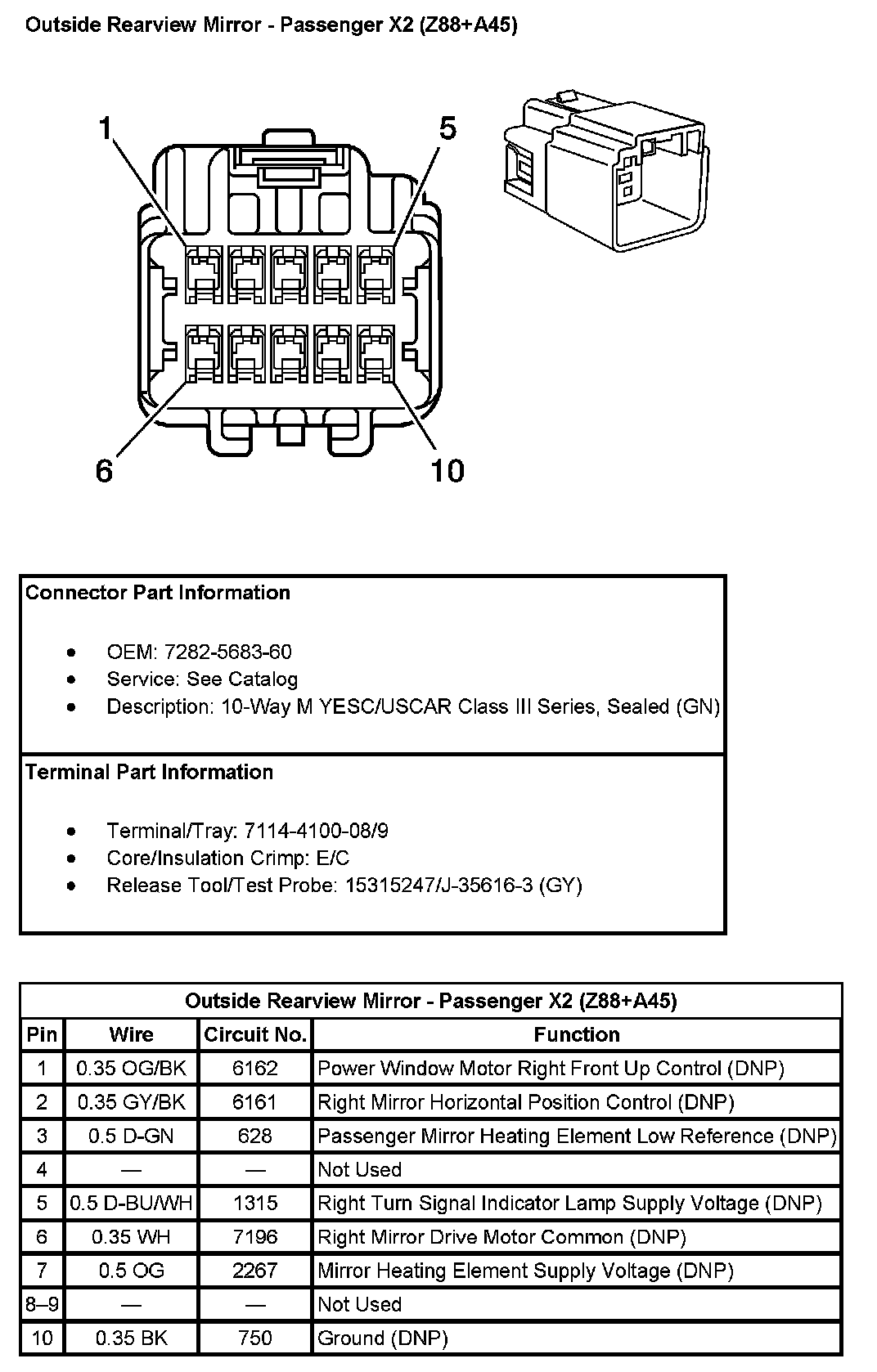

Outside Rearview Mirror - Passenger X2 (With RPO Codes Z88 + A45):
