Heated/Cooled Seat Diagrams (With RPO Code A45)

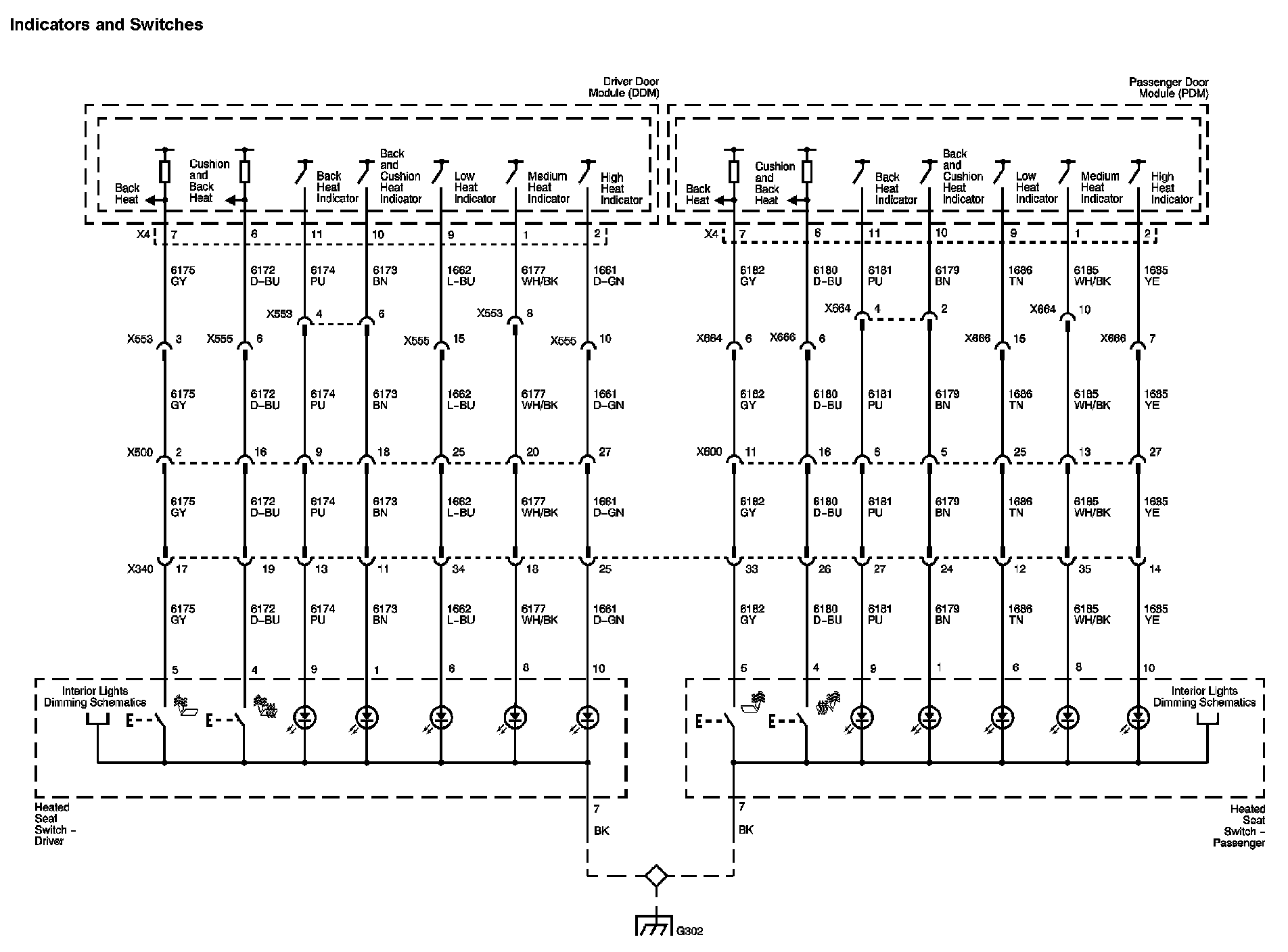

Heated/Cooled Seat Diagram 1:

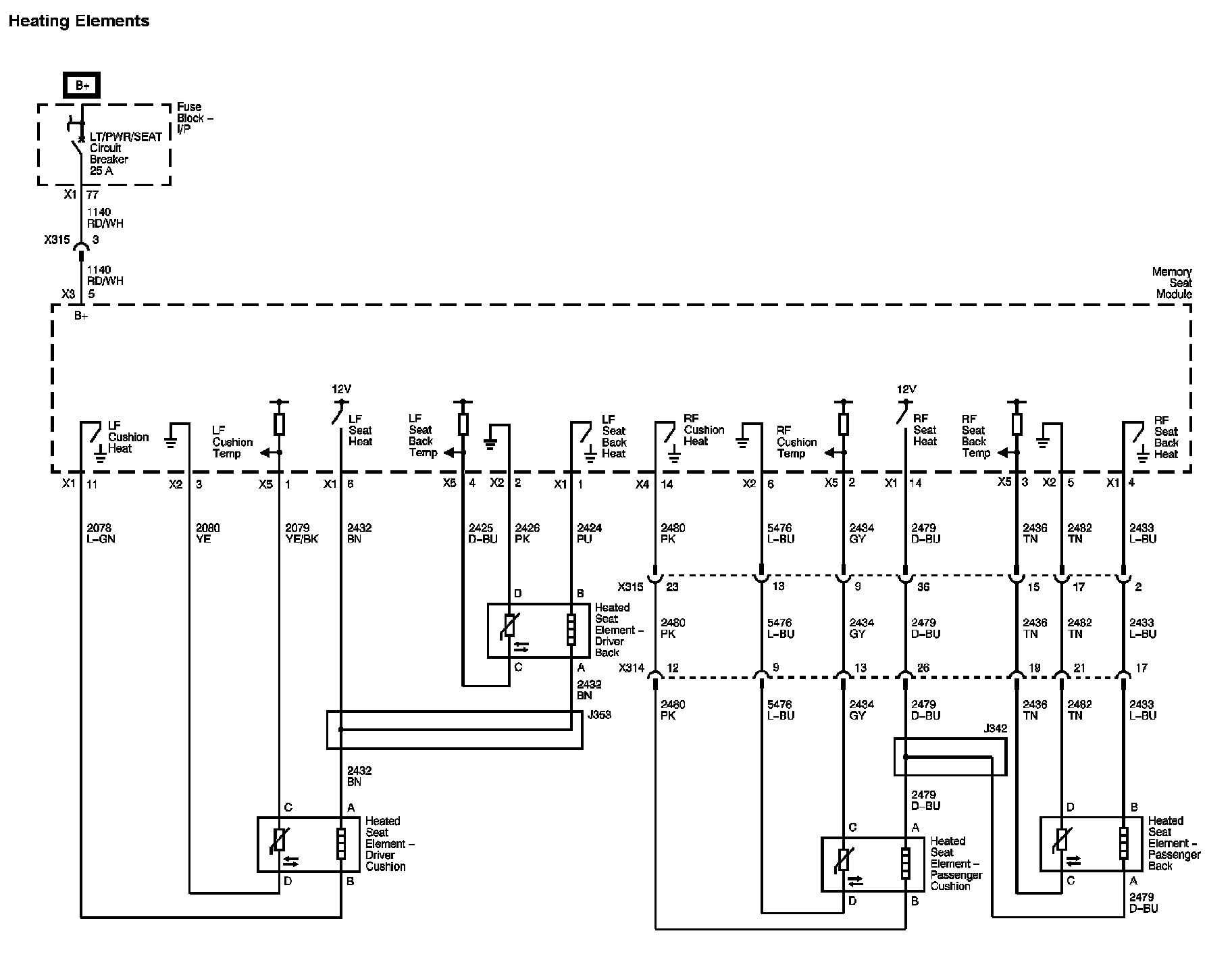

Heated/Cooled Seat Diagram 2:






Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
