Parking Assist Distance Sensor

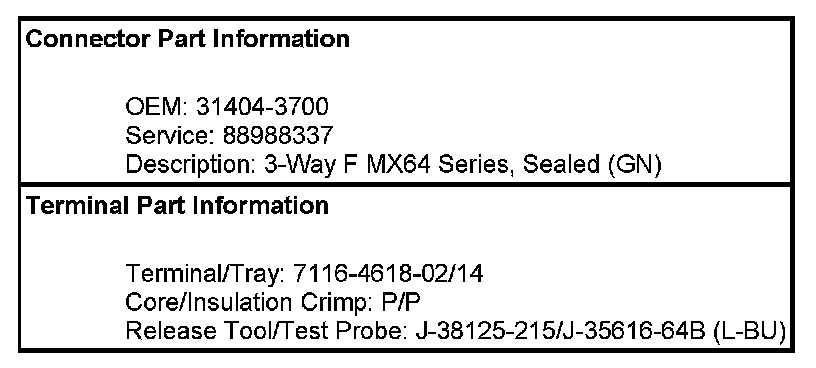

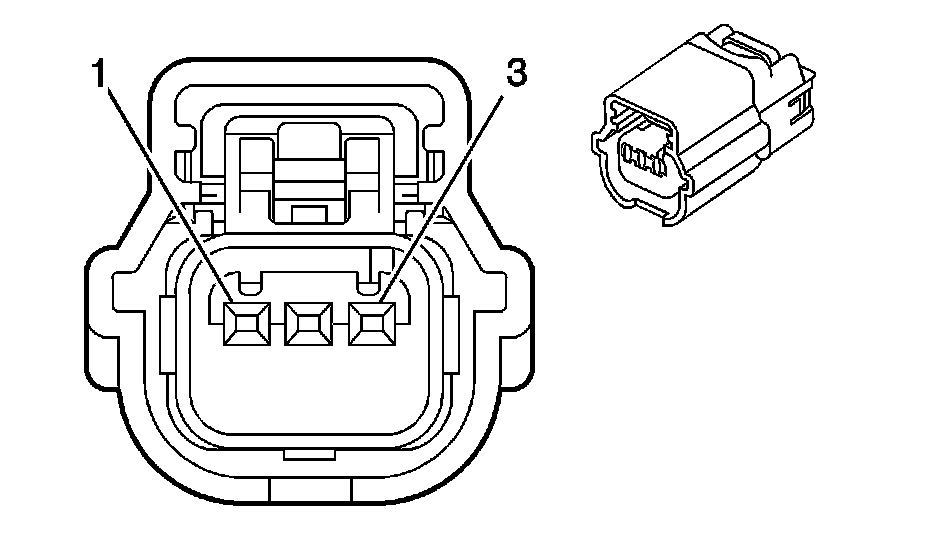

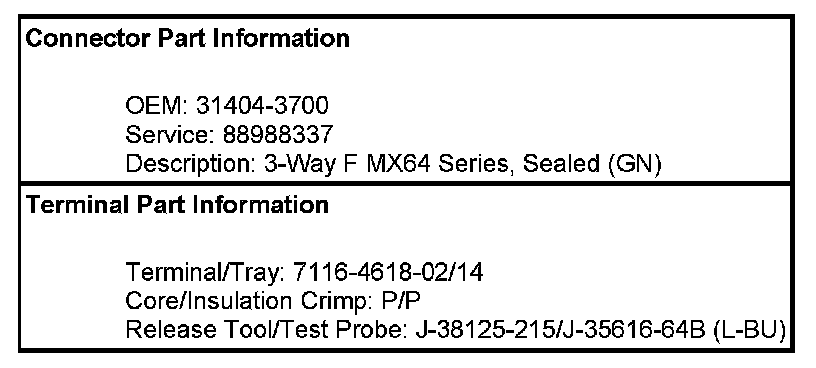

Object Detection Connector End Views

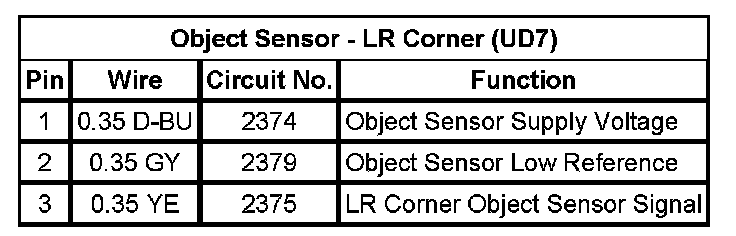

Object Sensor - LR Corner (UD7)

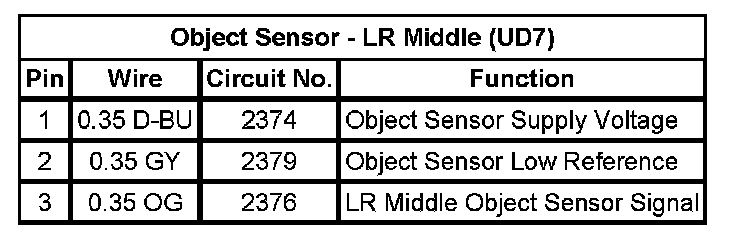

Object Sensor - LR Middle (UD7)

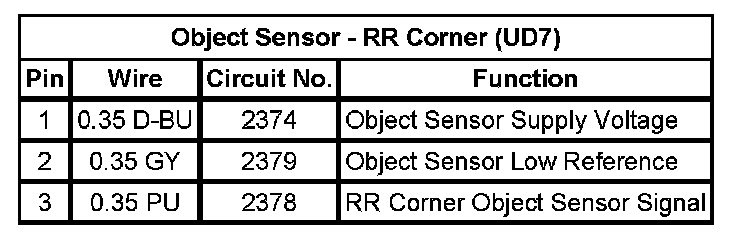

Object Sensor - RR Corner (UD7)

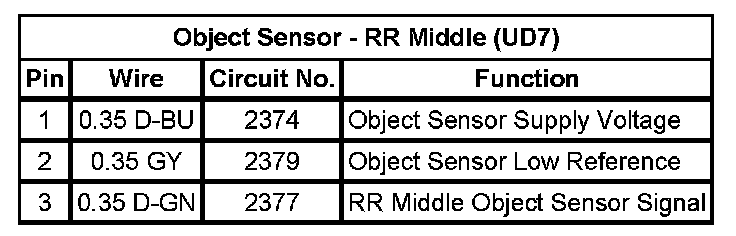

Object Sensor - RR Middle (UD7)
