Air Bag



SIR Connector End Views

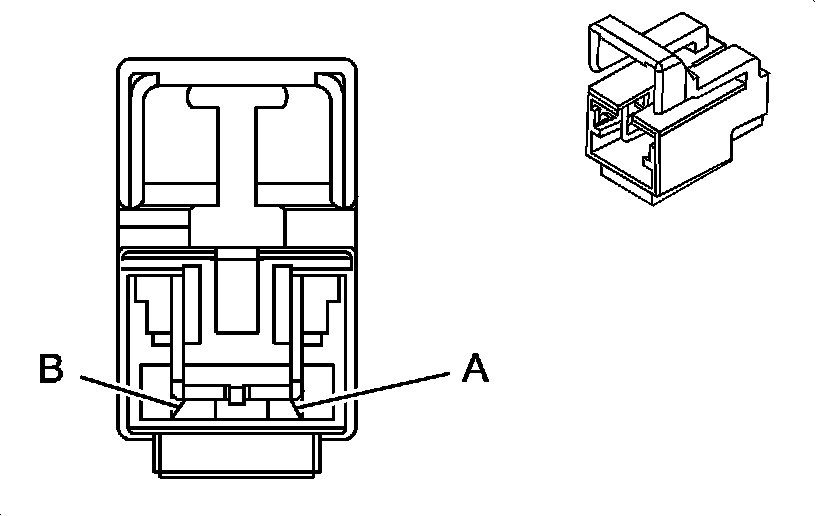

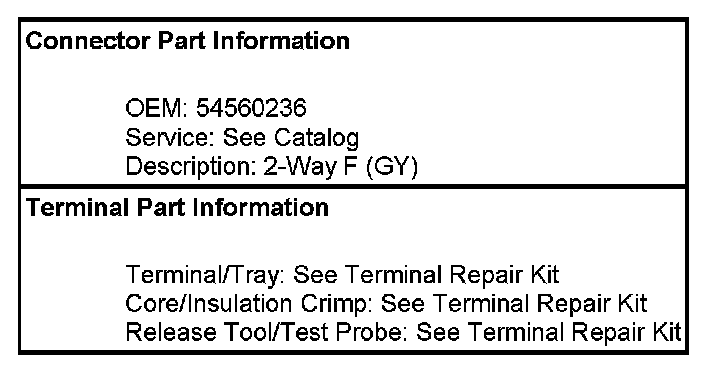

Inflatable Restraint I/P Module

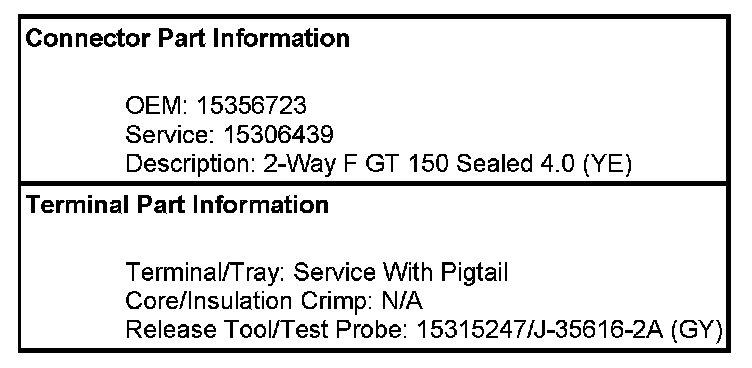

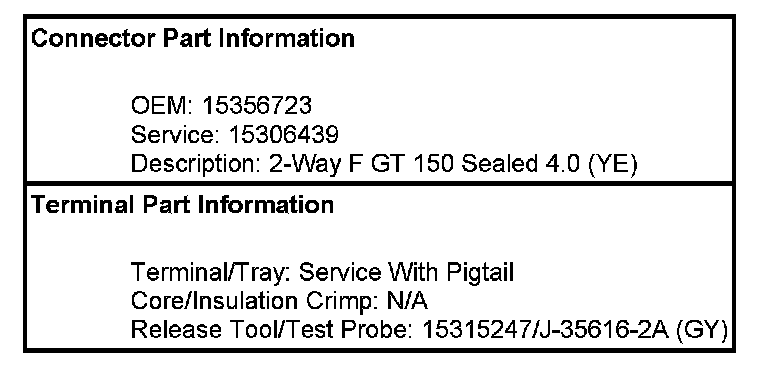

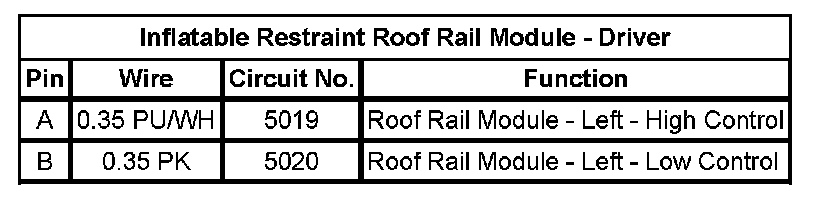

Inflatable Restraint Roof Rail Module - Driver














Inflatable Restraint Roof Rail Module - Passenger

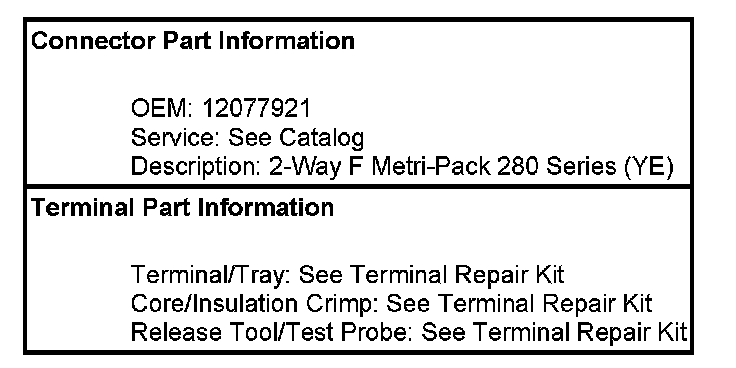

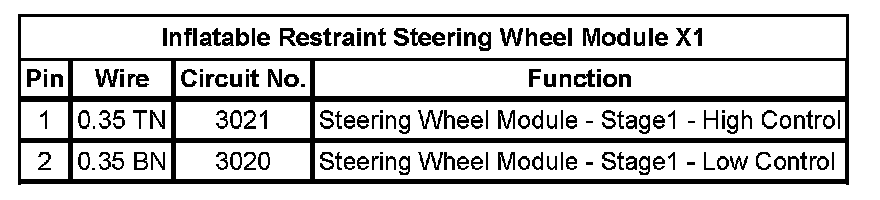

Inflatable Restraint Steering Wheel Module X1

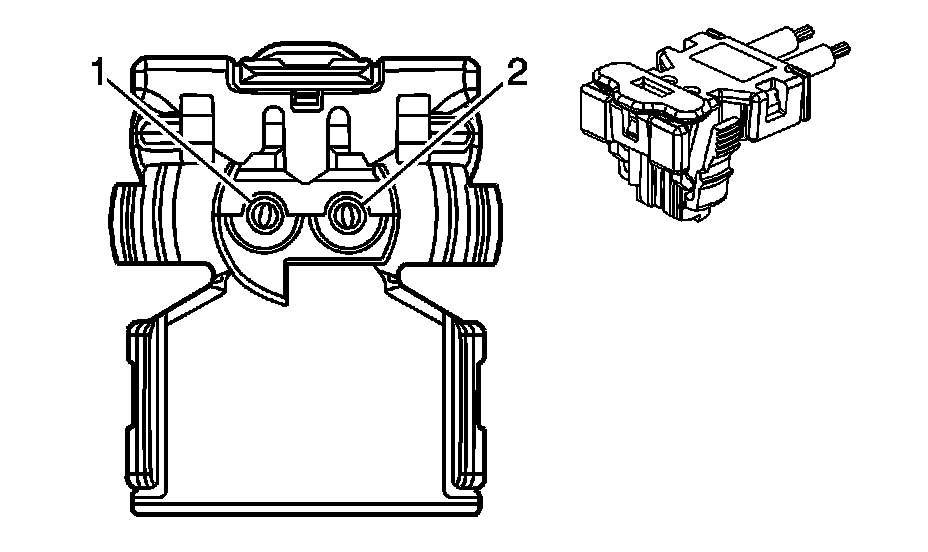

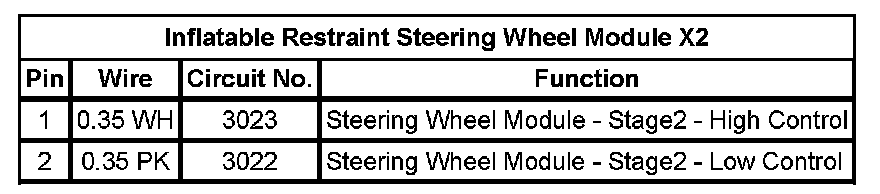

Inflatable Restraint Steering Wheel Module X2

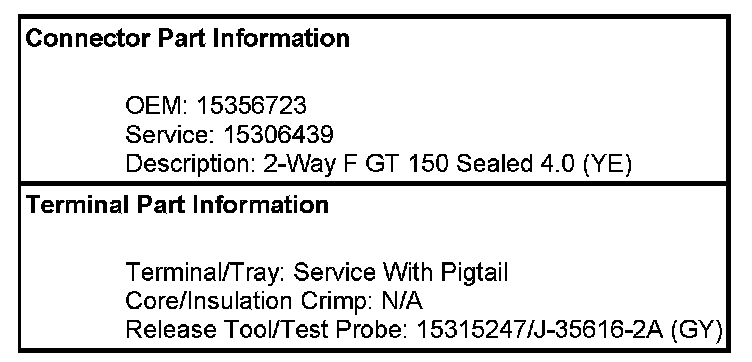

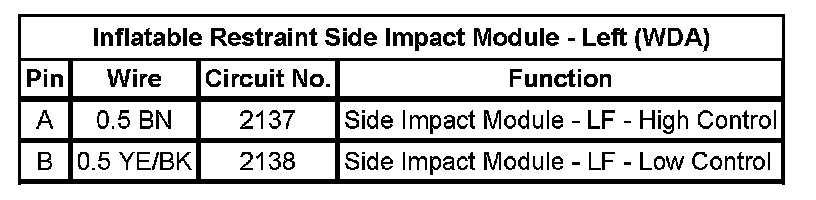

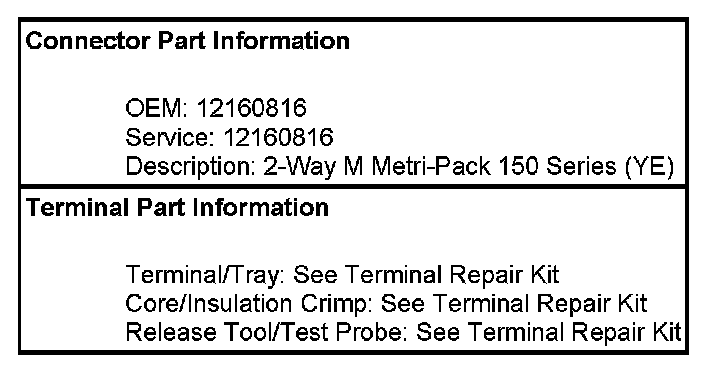

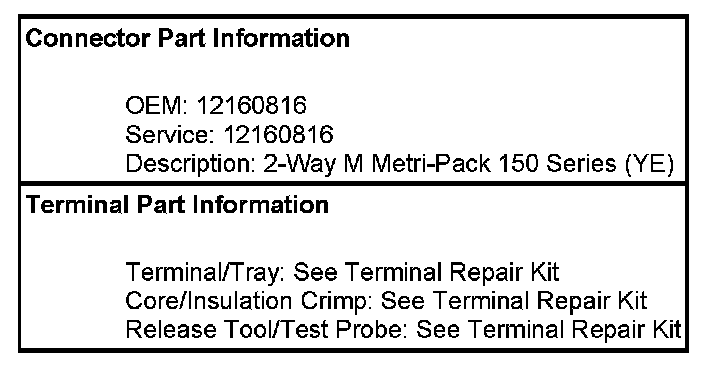

Inflatable Restraint Side Impact Module - Left (WDA)














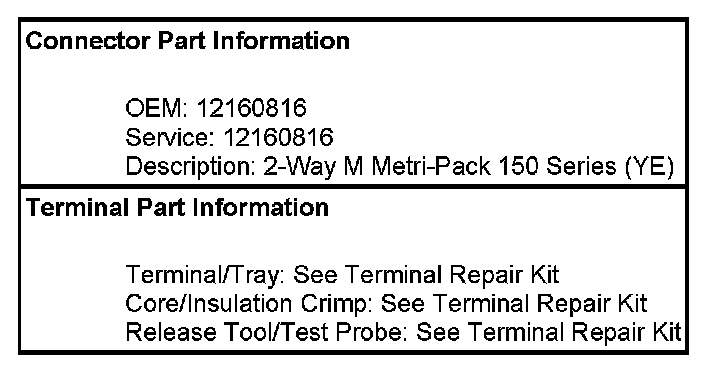

Inflatable Restraint Side Impact Module - Left (Z88)

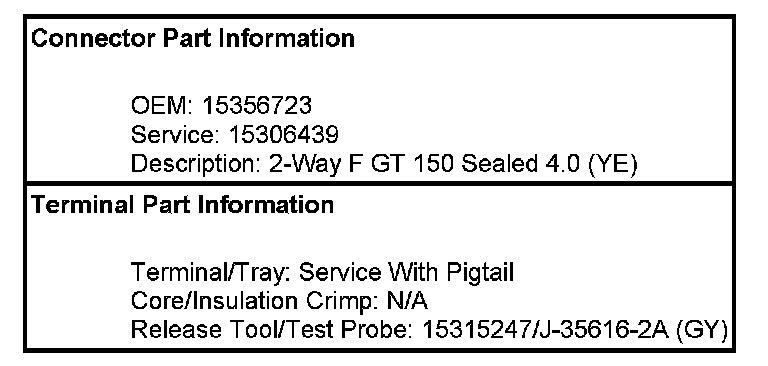

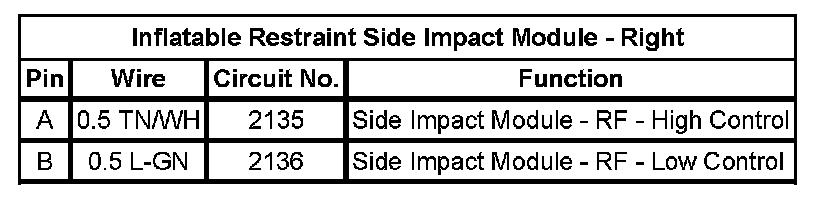

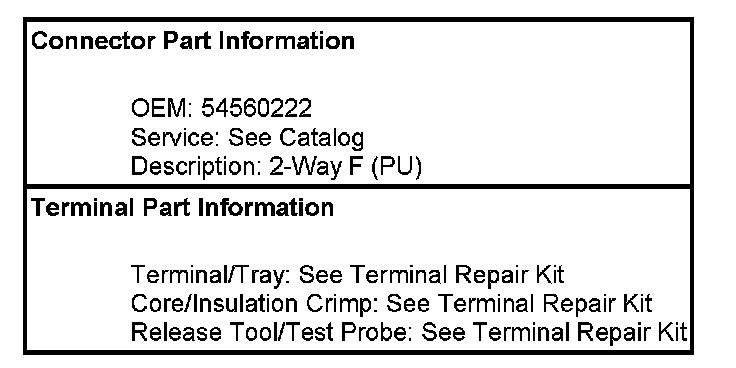

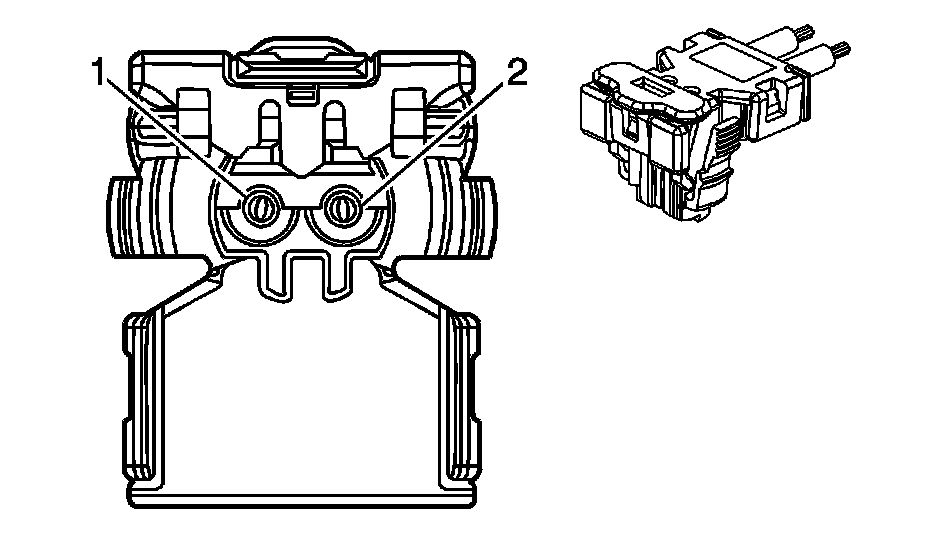

Inflatable Restraint Side Impact Module - Right














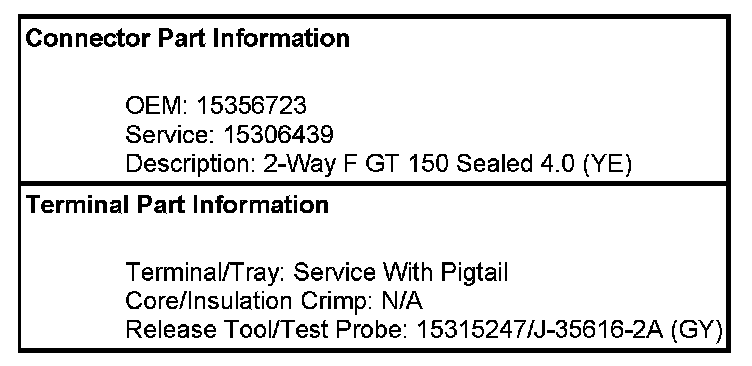

Inflatable Restraint Side Impact Sensing Module (SISM) - LF (WDA)














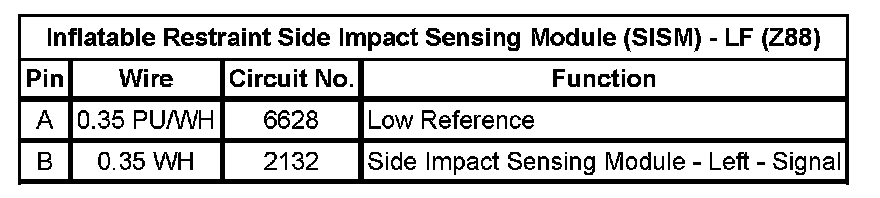

Inflatable Restraint Side Impact Sensing Module (SISM) - LF (Z88)

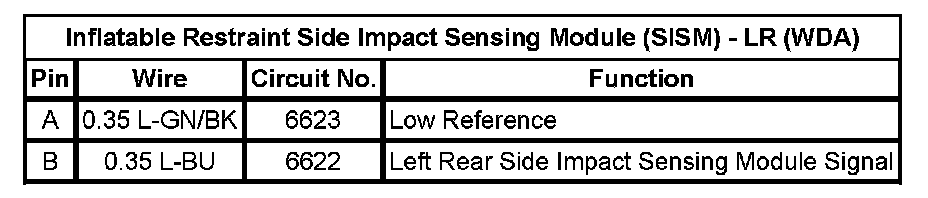

Inflatable Restraint Side Impact Sensing Module (SISM) - LR (WDA)














Inflatable Restraint Side Impact Sensing Module (SISM) - LR (Z88)














Inflatable Restraint Side Impact Sensing Module (SISM) - RF














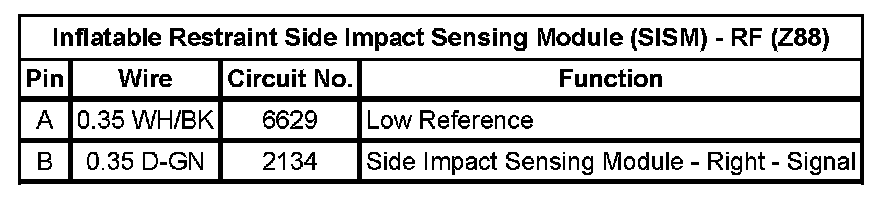

Inflatable Restraint Side Impact Sensing Module (SISM) - RF (Z88)

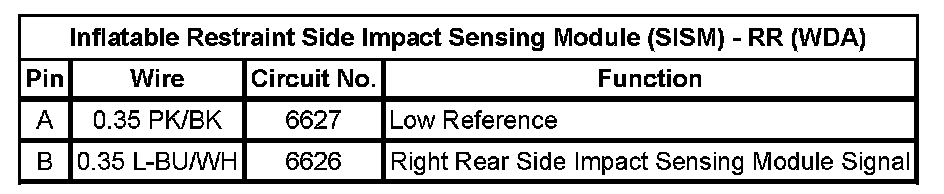

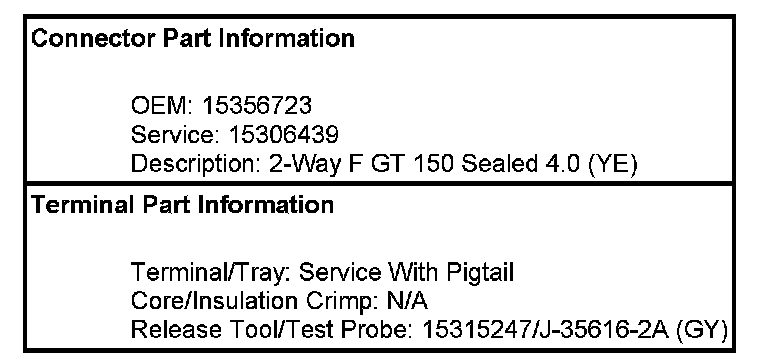

Inflatable Restraint Side Impact Sensing Module (SISM) - RR (WDA)

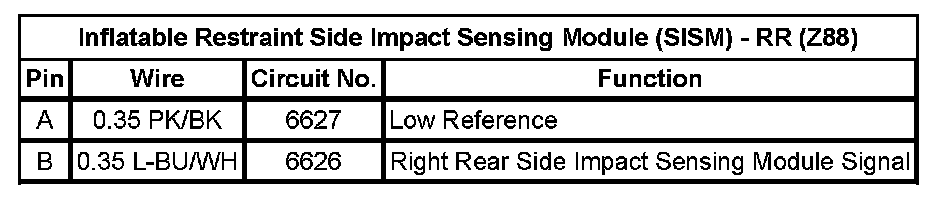

Inflatable Restraint Side Impact Sensing Module (SISM) - RR (Z88)
