Glove Box Lamp

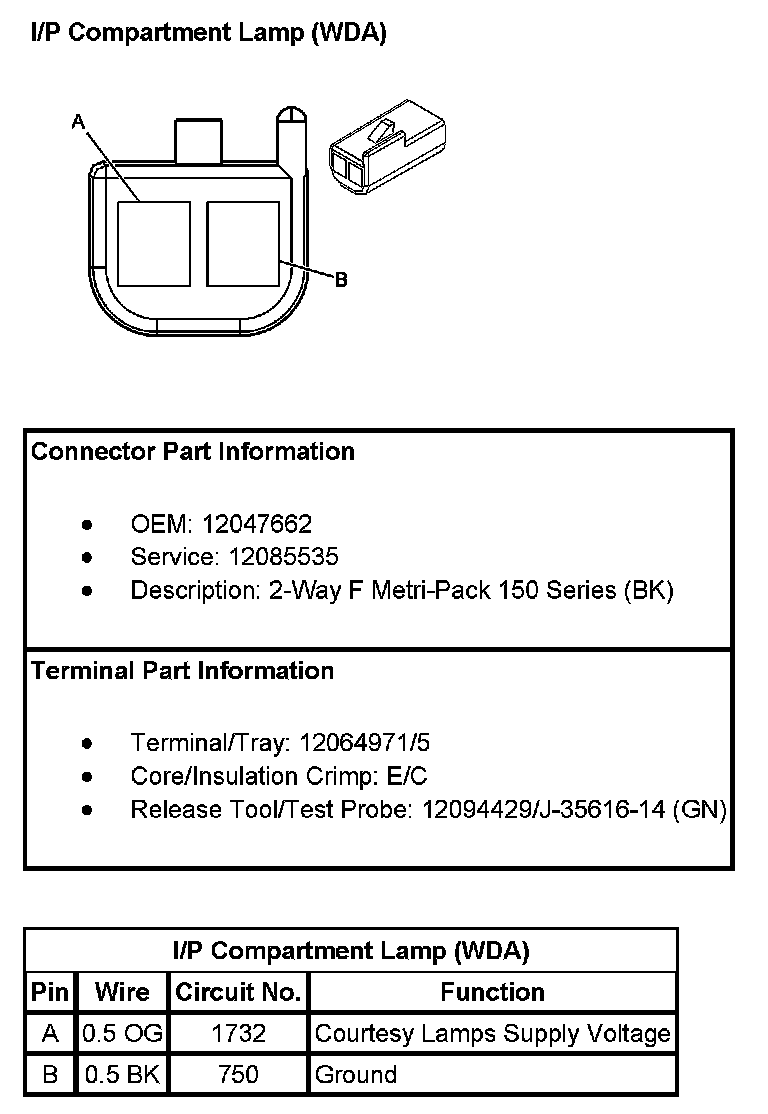

I/P Compartment Lamp (With RPO Code WDA):



I/P Compartment Lamp (With RPO Code Z88):
