Daytime Running Lamp

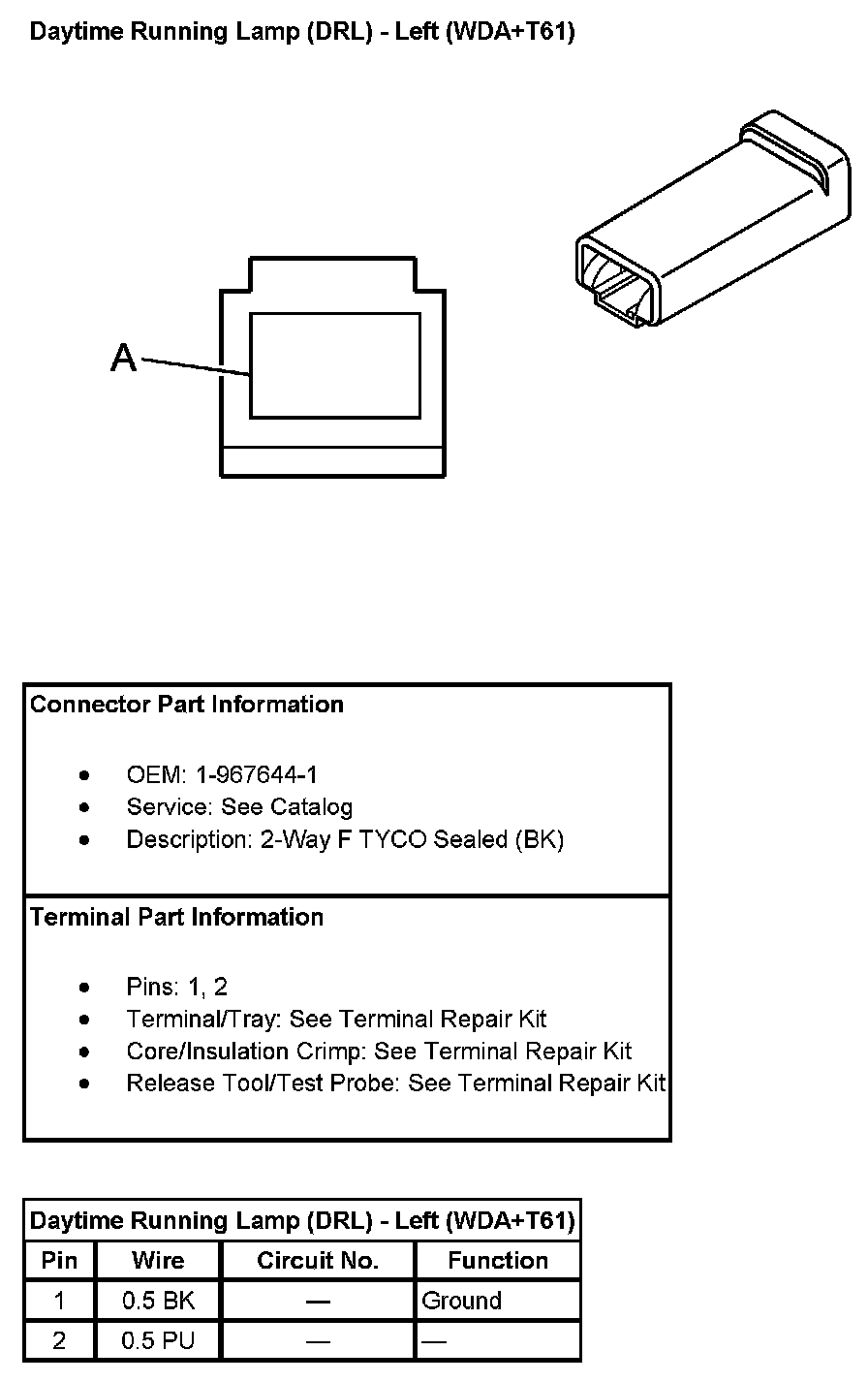

Daytime Running Lamp (DRL) - Left (With RPO Code WDA + T61):

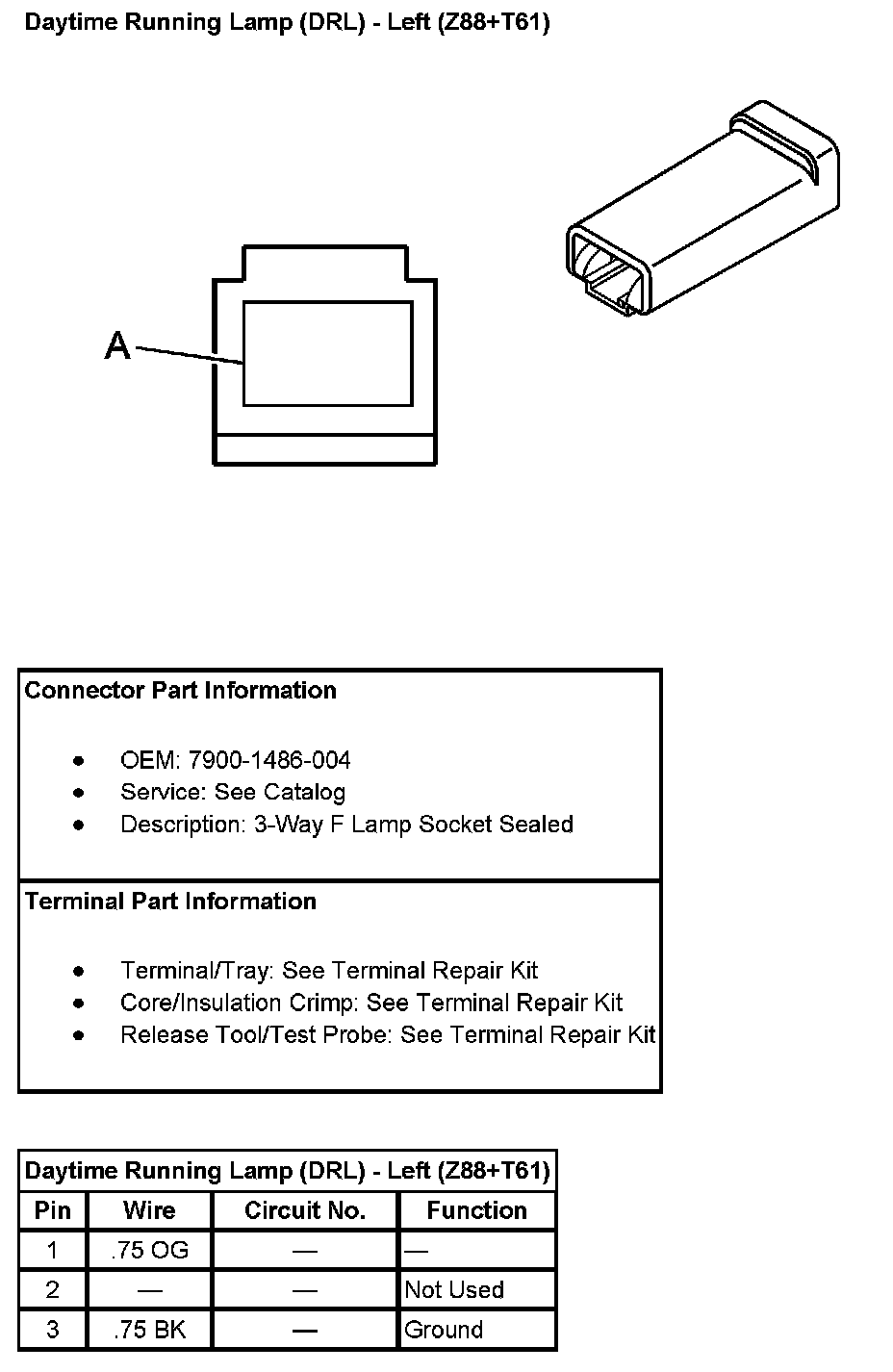

Daytime Running Lamp (DRL) - Left (With RPO Code Z88 + T61):

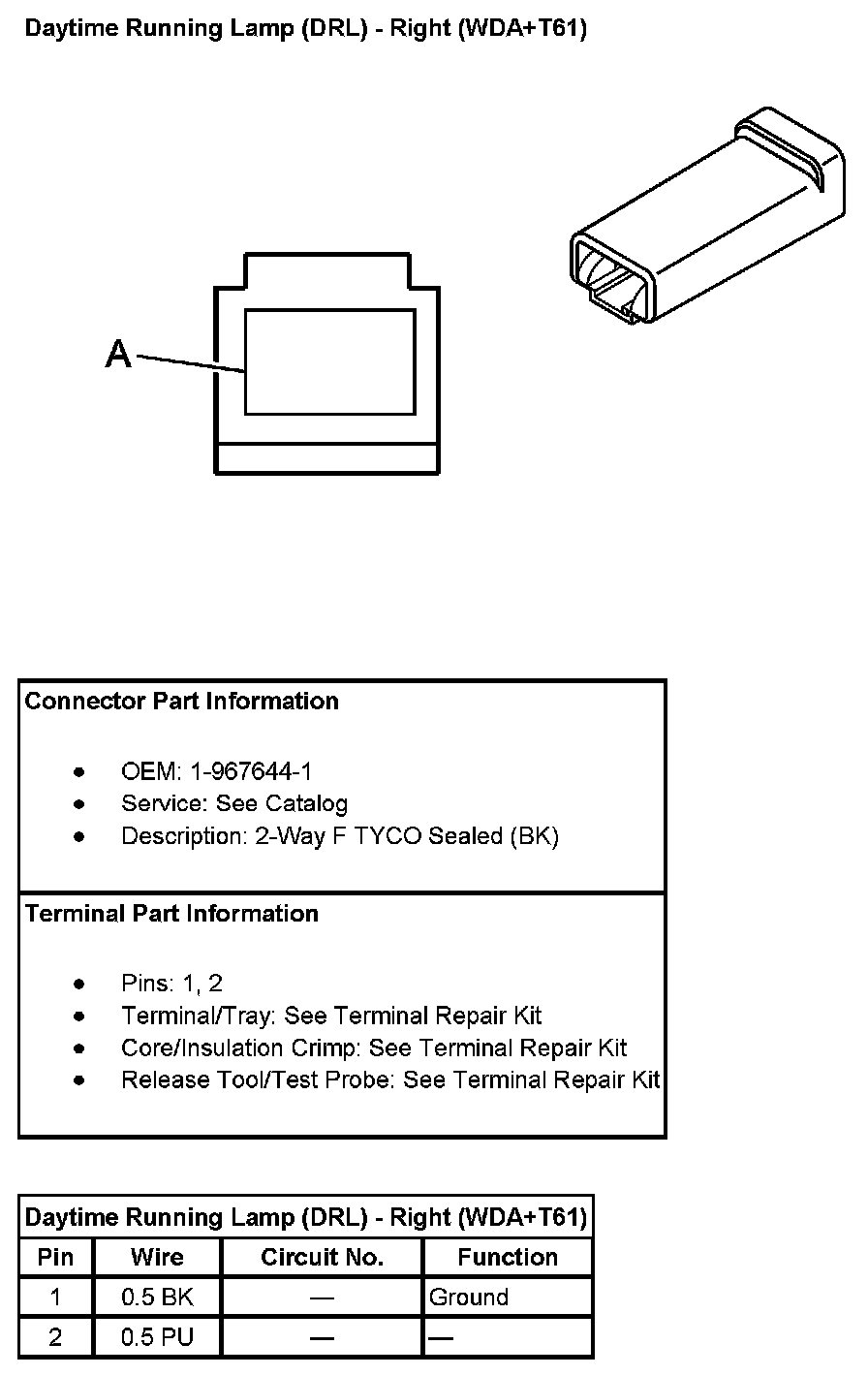

Daytime Running Lamp (DRL) - Right (With RPO Code WDA + T61):

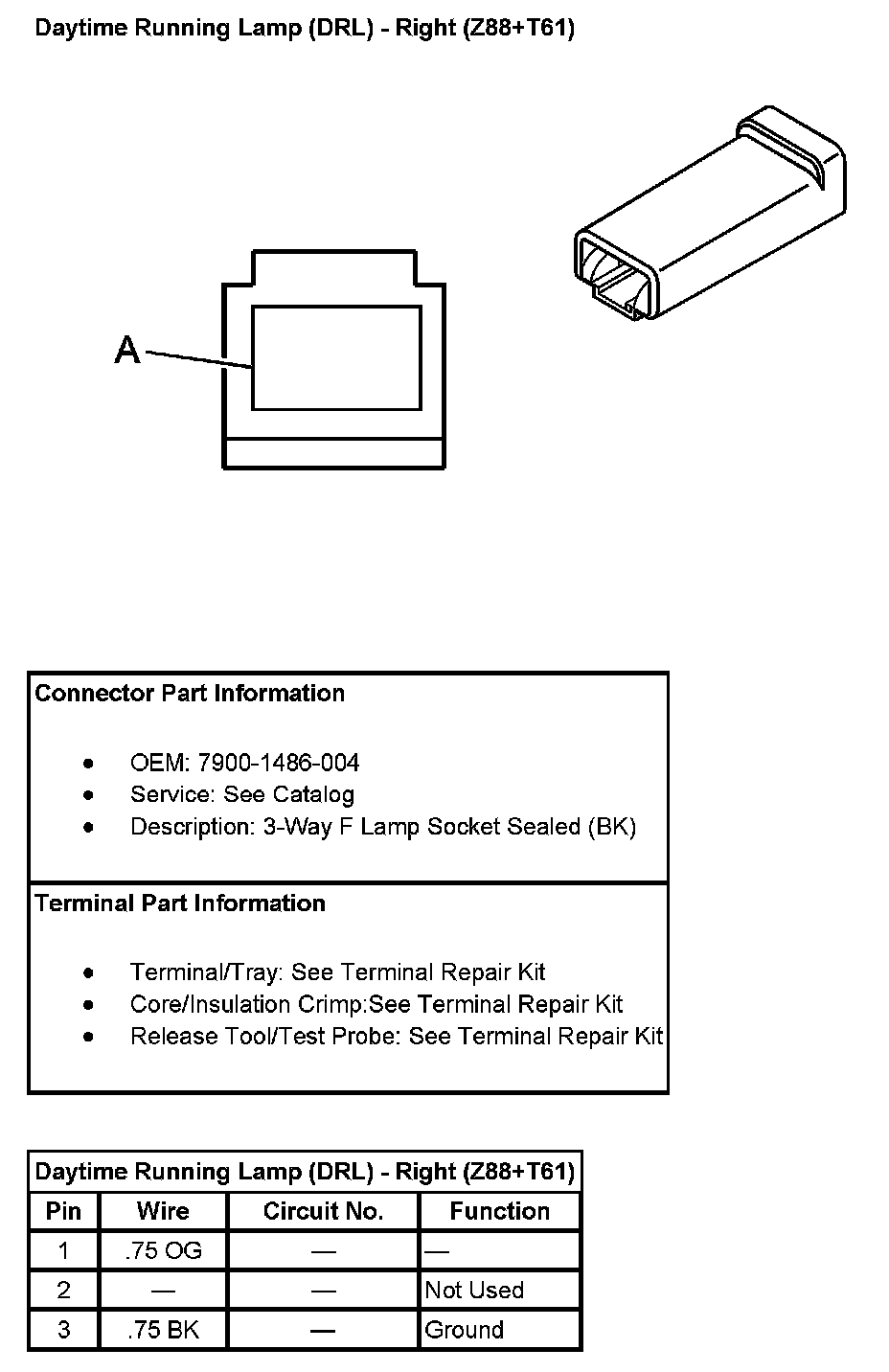

Daytime Running Lamp (DRL) - Right (With RPO Code Z88 & T61):
