Outside Rearview Mirror - Driver
Outside Rearview Mirror - Driver

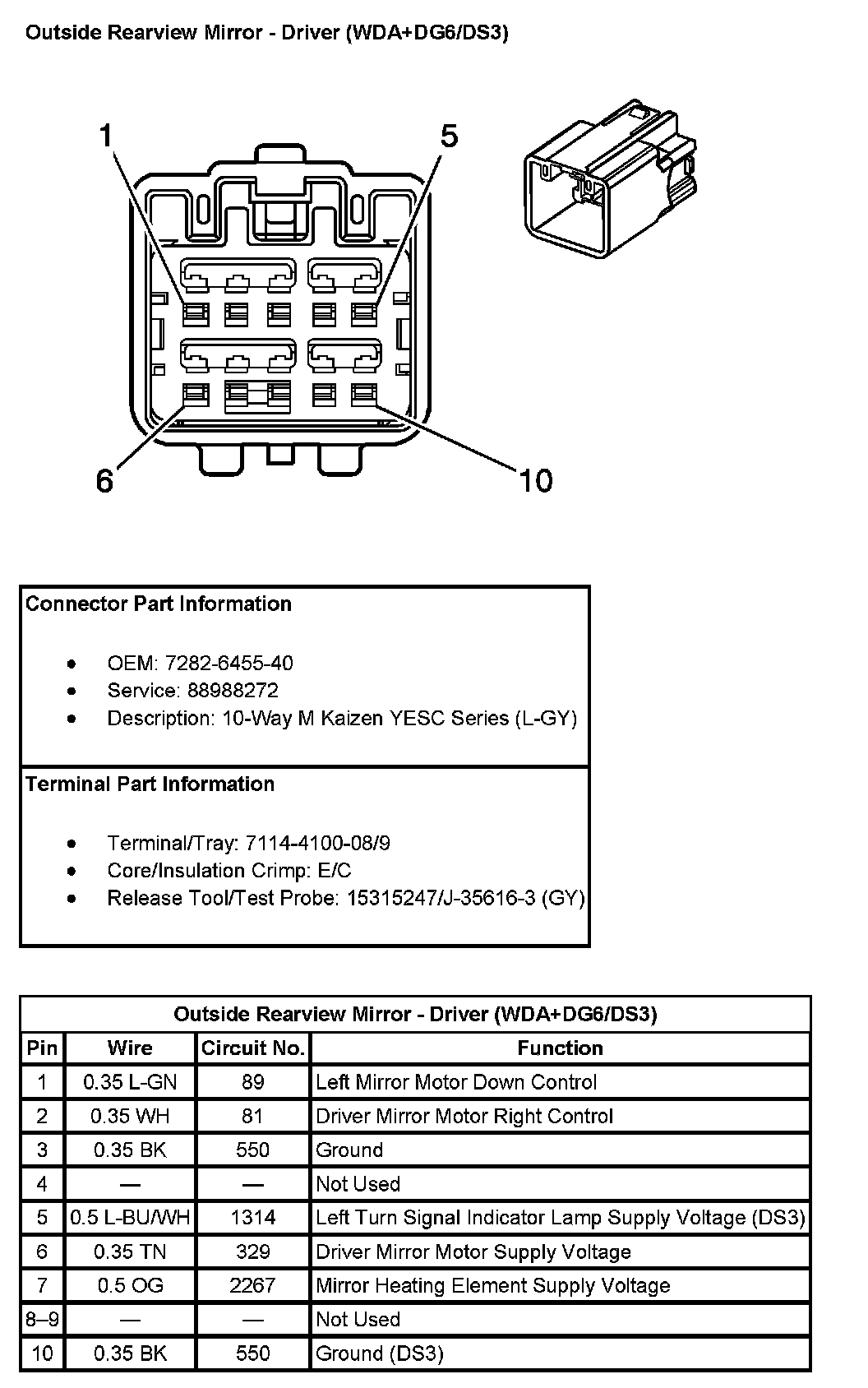

Outside Rearview Mirror - Driver (With RPO Code WDA + DG6 / DS3):

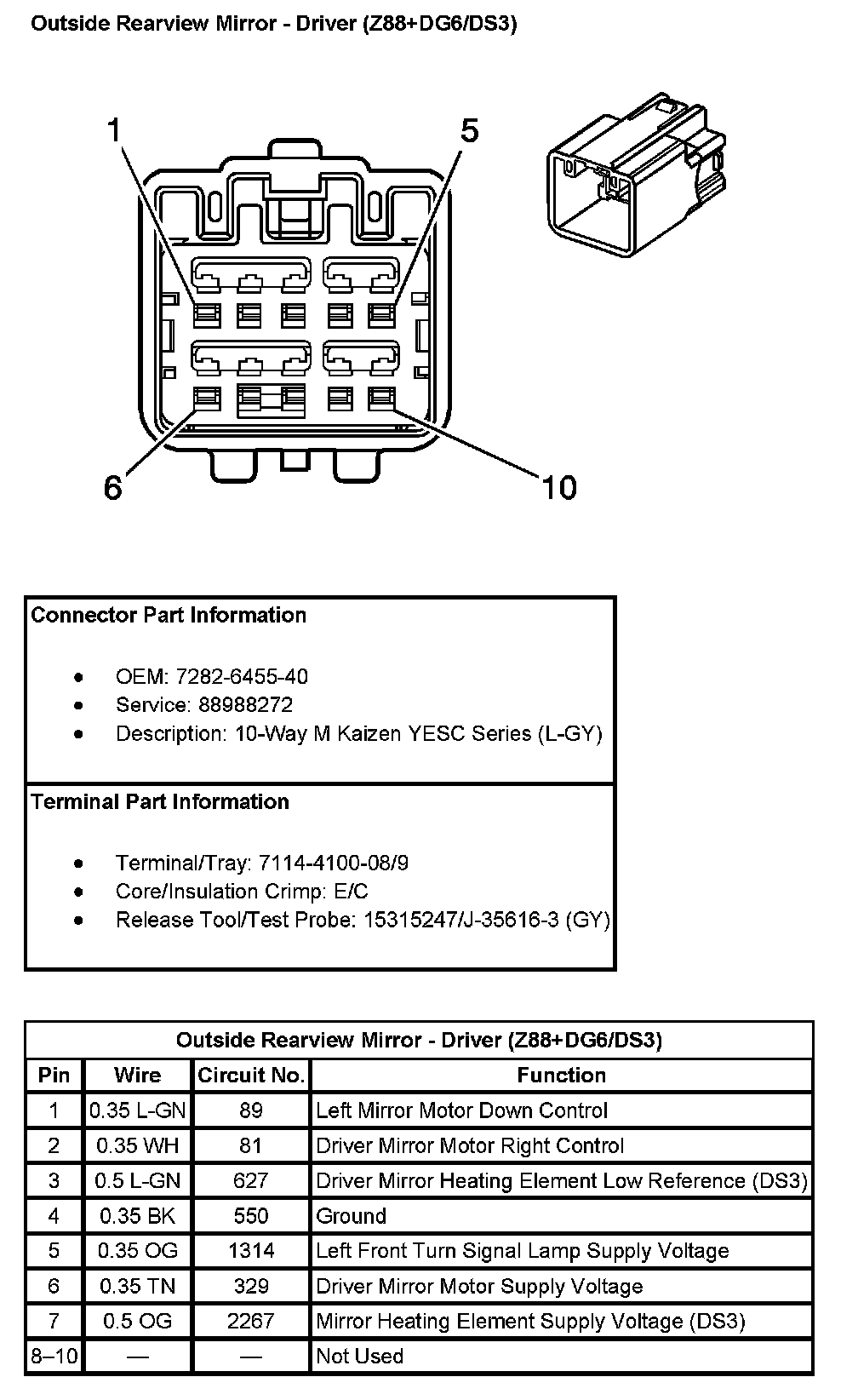

Outside Rearview Mirror - Driver (With RPO Code Z88 + DG6 / DS3):
