Operation CHARM
: Car repair manuals for everyone.
Home
>>
Saturn
>>
2007
>>
Outlook V6-3.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Seat Motor
>>
Seat Horizontal Motor
Seat Horizontal Motor

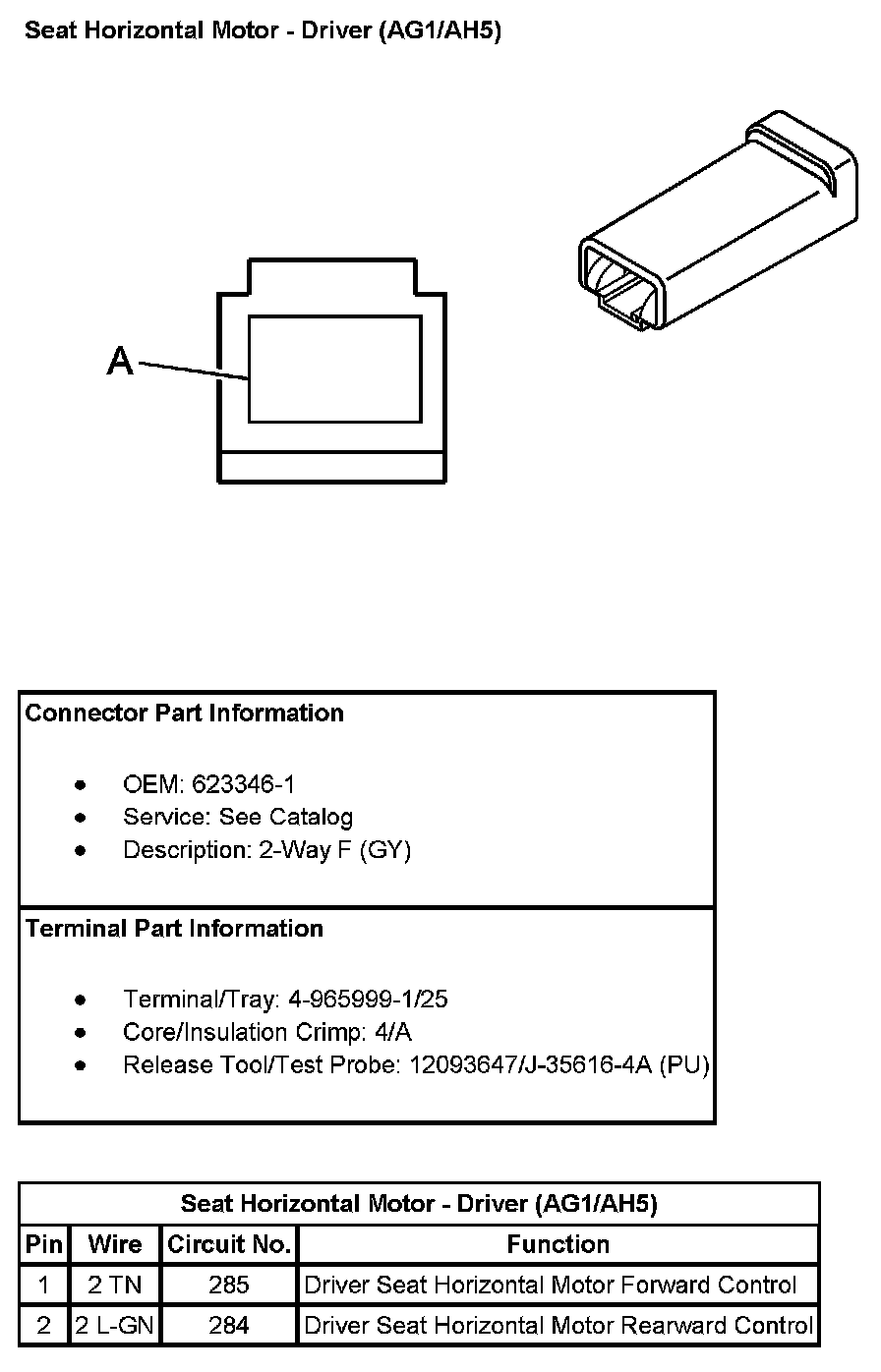

Seat Horizontal Motor - Driver (With RPO Codes AG1 & AH5):

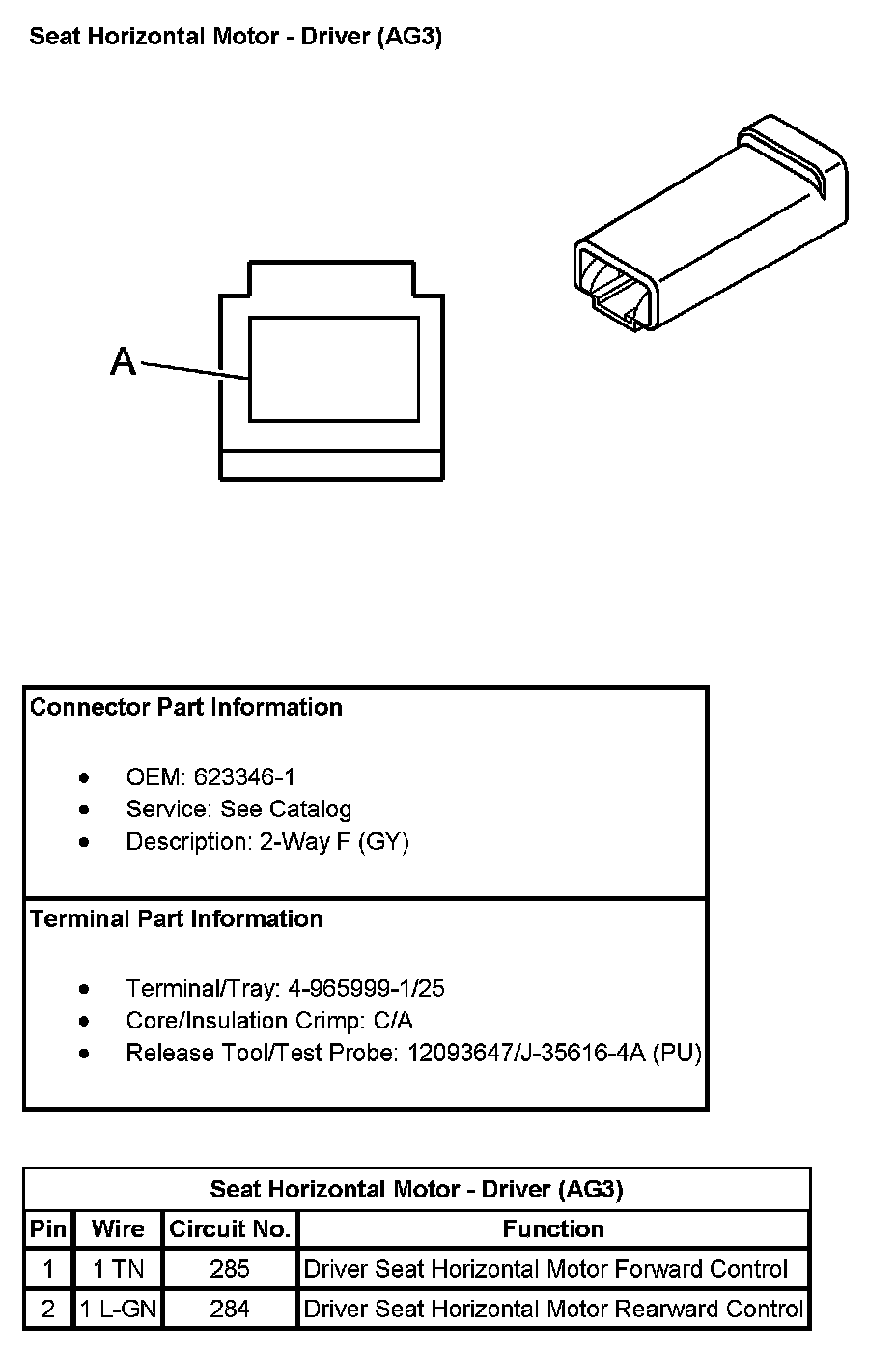

Seat Horizontal Motor - Driver (With RPO Code AG3):

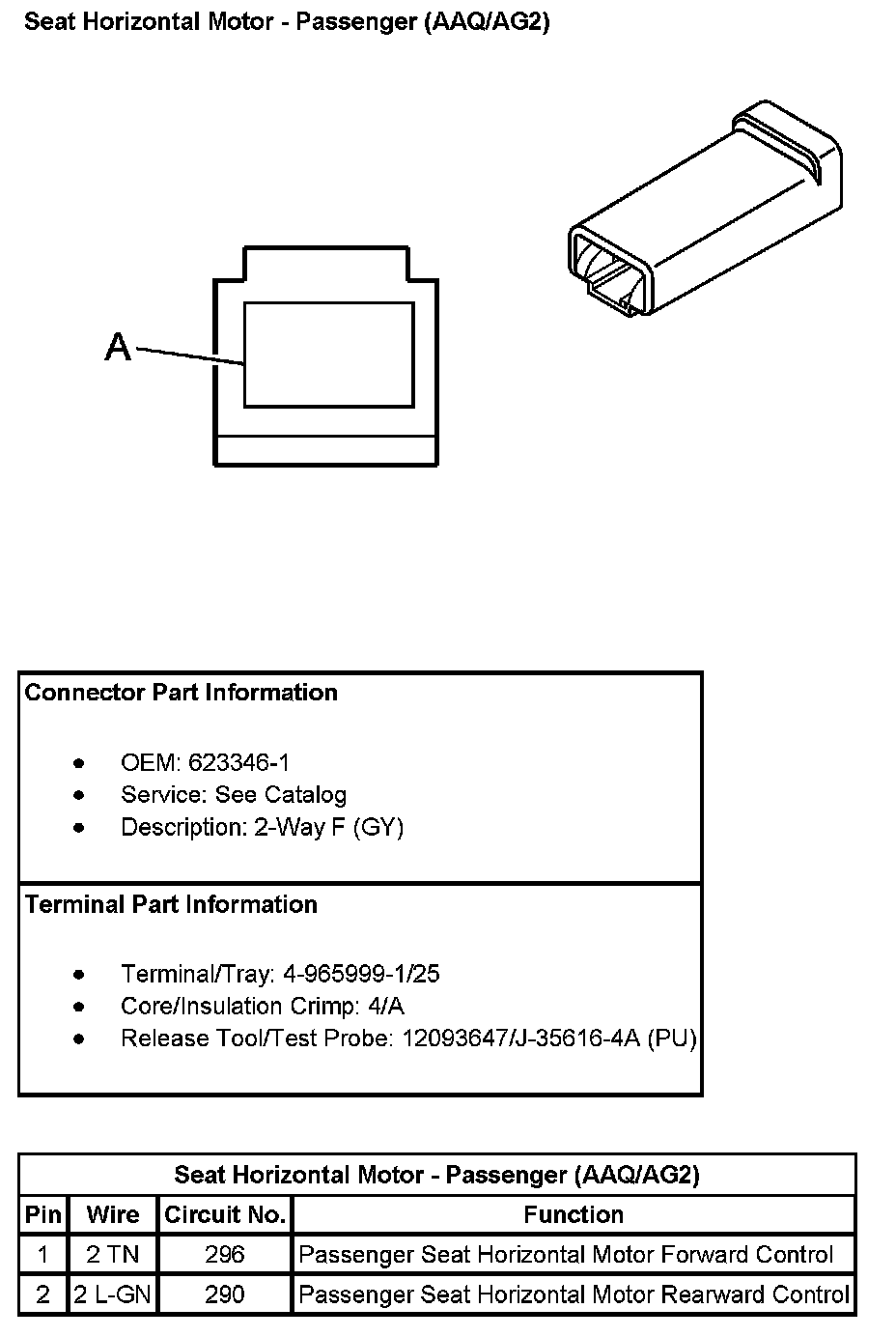

Seat Horizontal Motor - Passenger (With RPO Codes AAQ & AG2):
