Tail Lamp Assembly

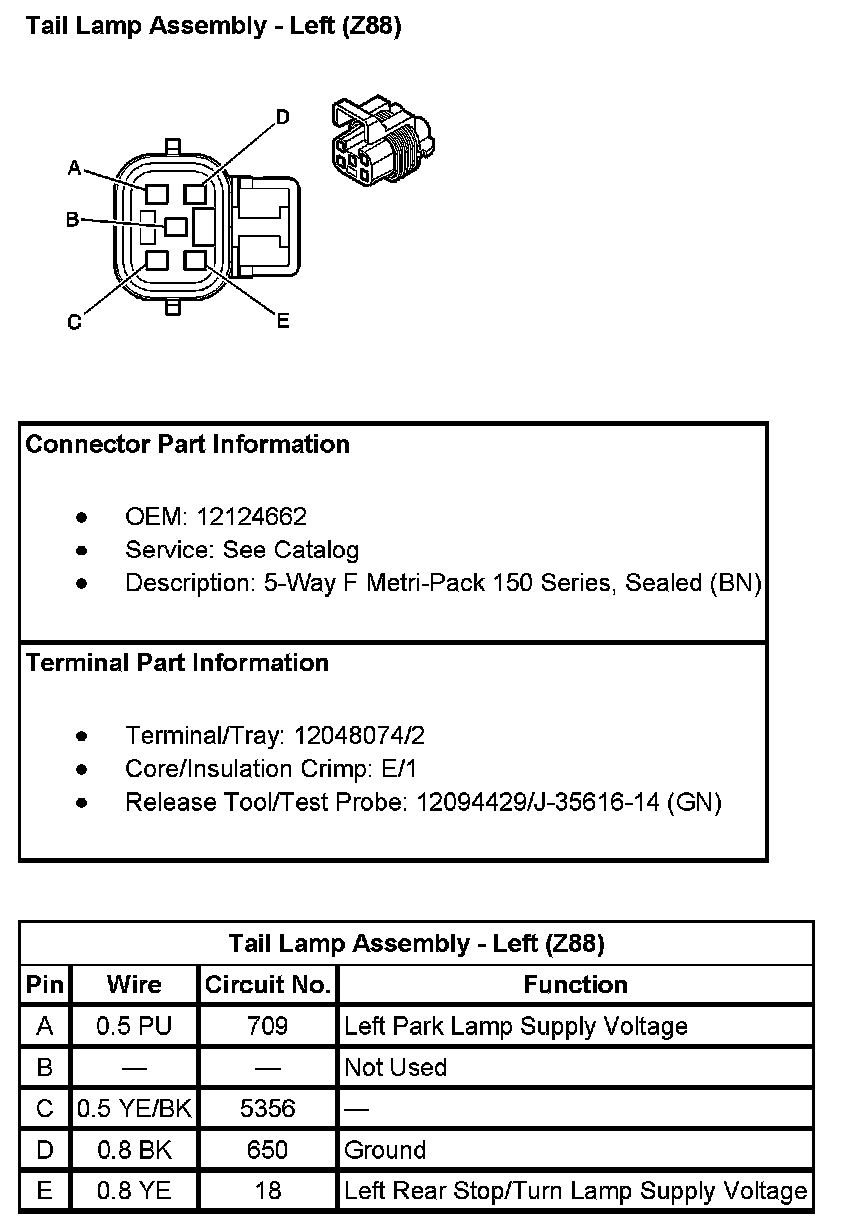

Tail Lamp Assembly - Left (With RPO Code Z88):

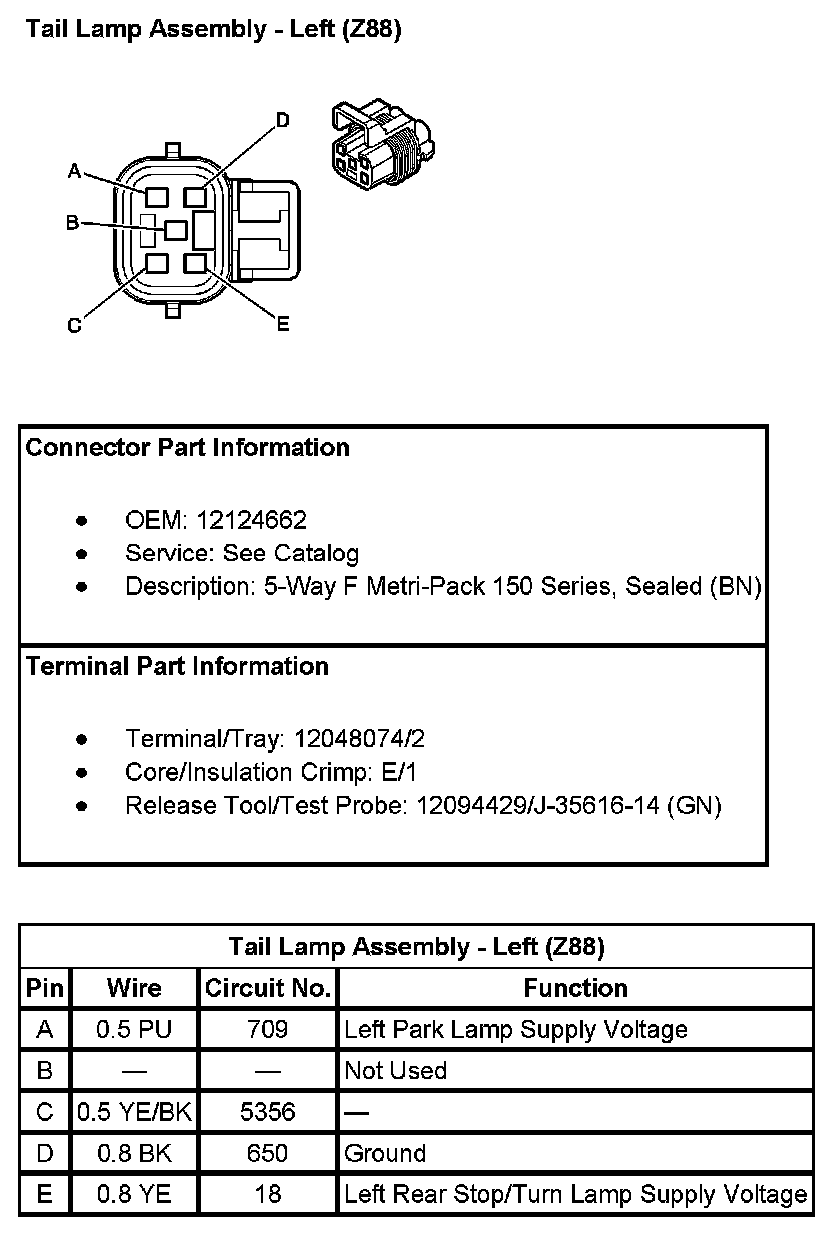

Tail Lamp Assembly - Left (With RPO Code Z88) (Part 2):

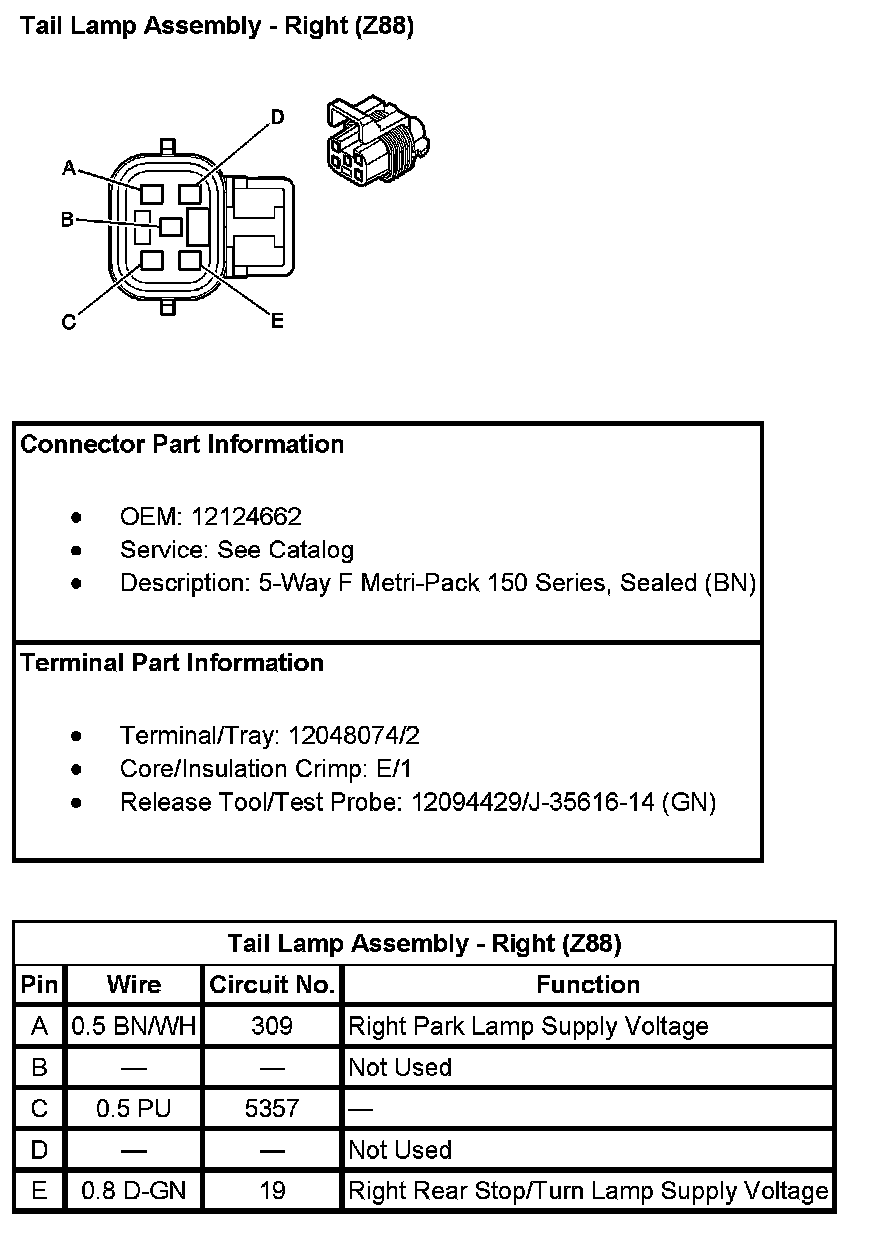

Tail Lamp Assembly - Right (With RPO Code Z88):

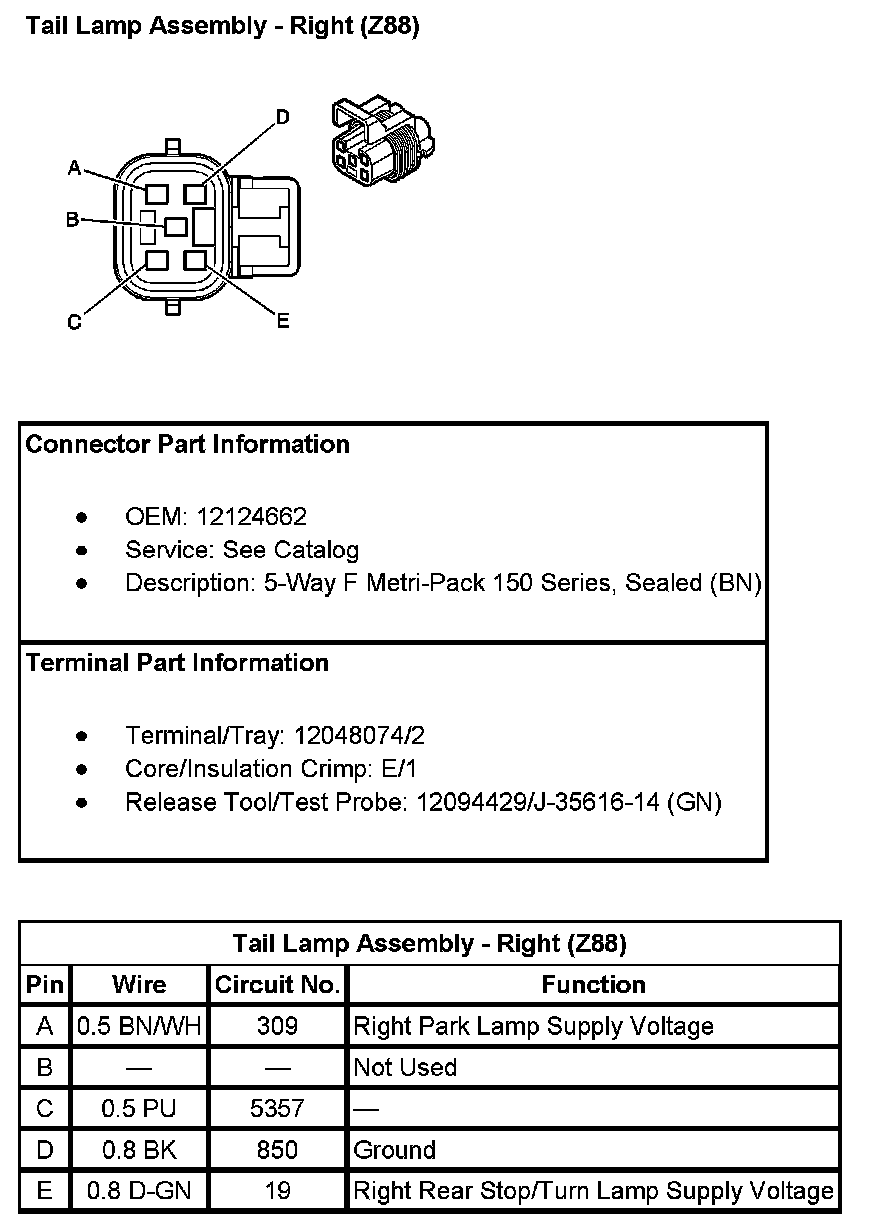

Tail Lamp Assembly - Right (With RPO Code Z88):
