Suction Screen Replacement

Suction Screen Replacement

Tools Required

J44551 Suction Screen Kit

Removal Procedure

1. Remove the A/C suction hose assembly from the A/C compressor.

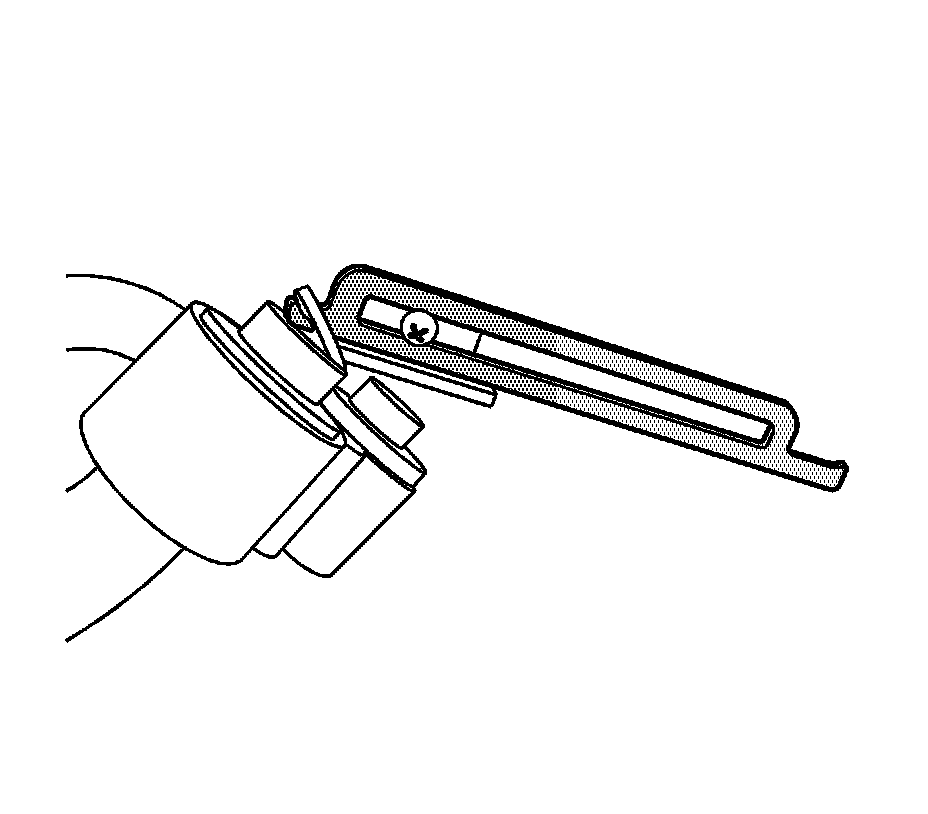

2. Using the J-44551-9 place the tip of the tool under the inside edge of the compression band of the suction screen and the cushioning fulcrum pad against the open end of the hose or manifold fitting.

Important: Do not damage the end of the hose or manifold.

3. Pry upward on the band and move the tool around the diameter of the screen as necessary to remove the screen.
