Electrical Diagrams

ENGINE CONTROLS SCHEMATICS

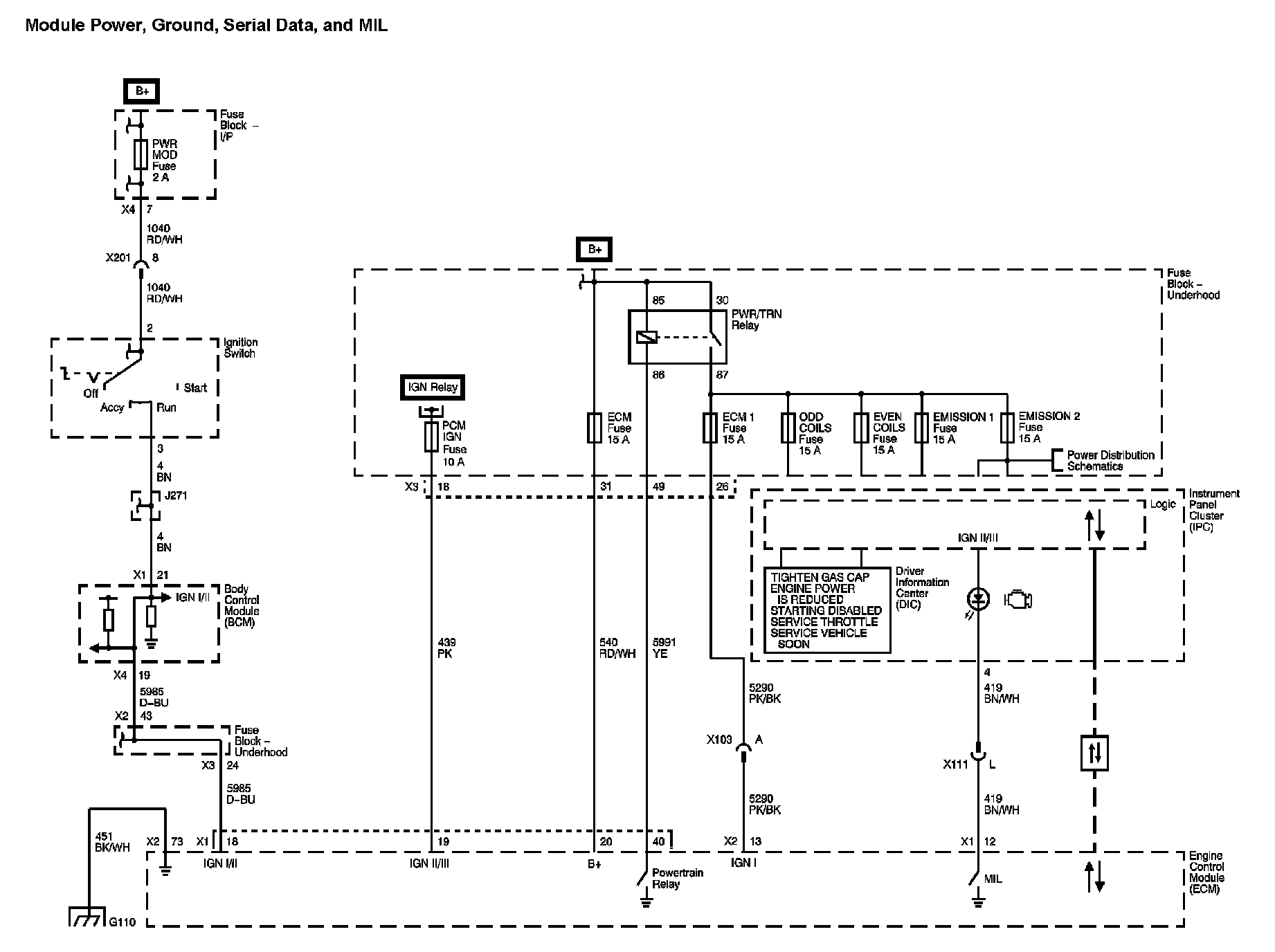

Module Power, Ground, Serial Data, and MIL

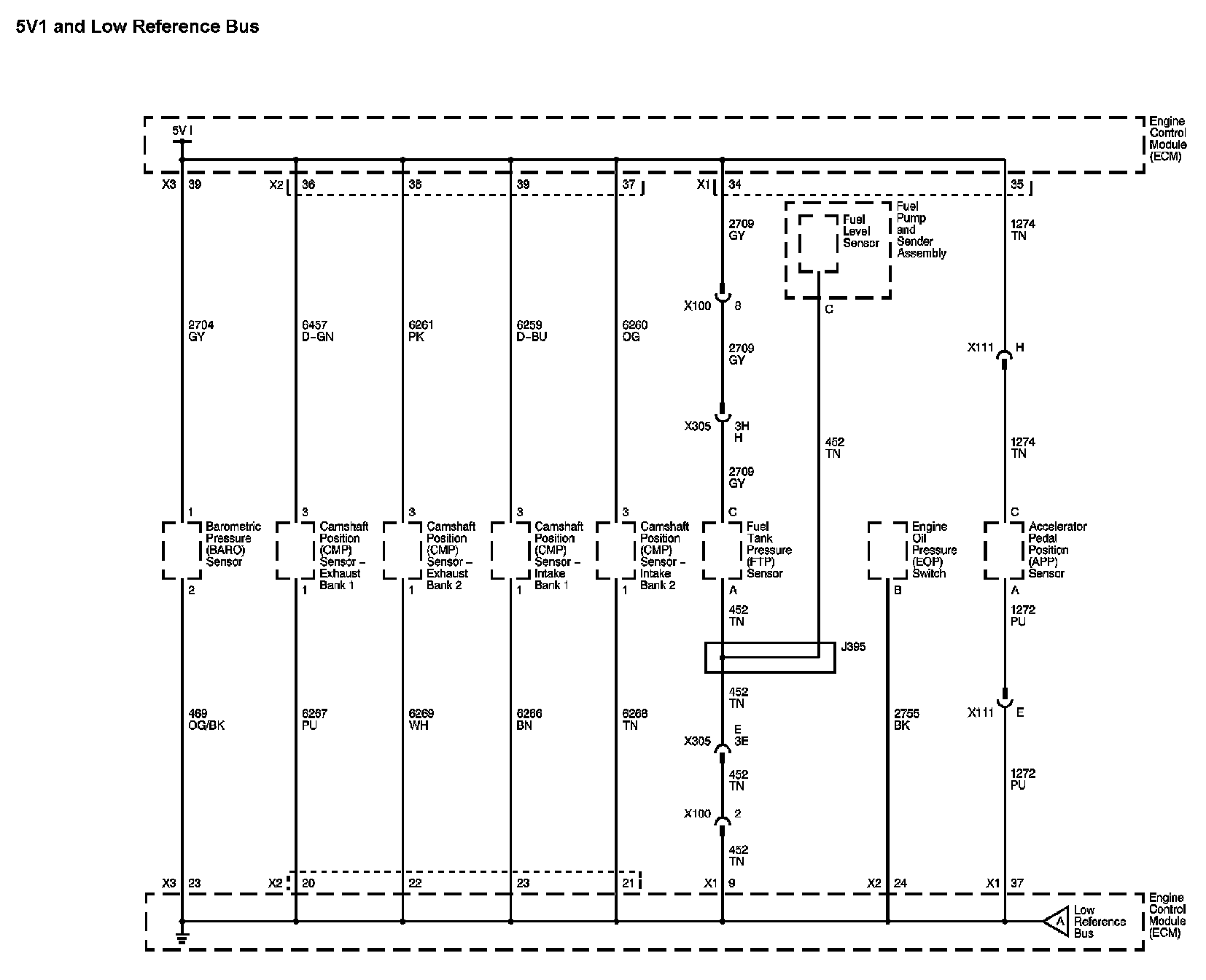

5V1 and Low Reference Bus

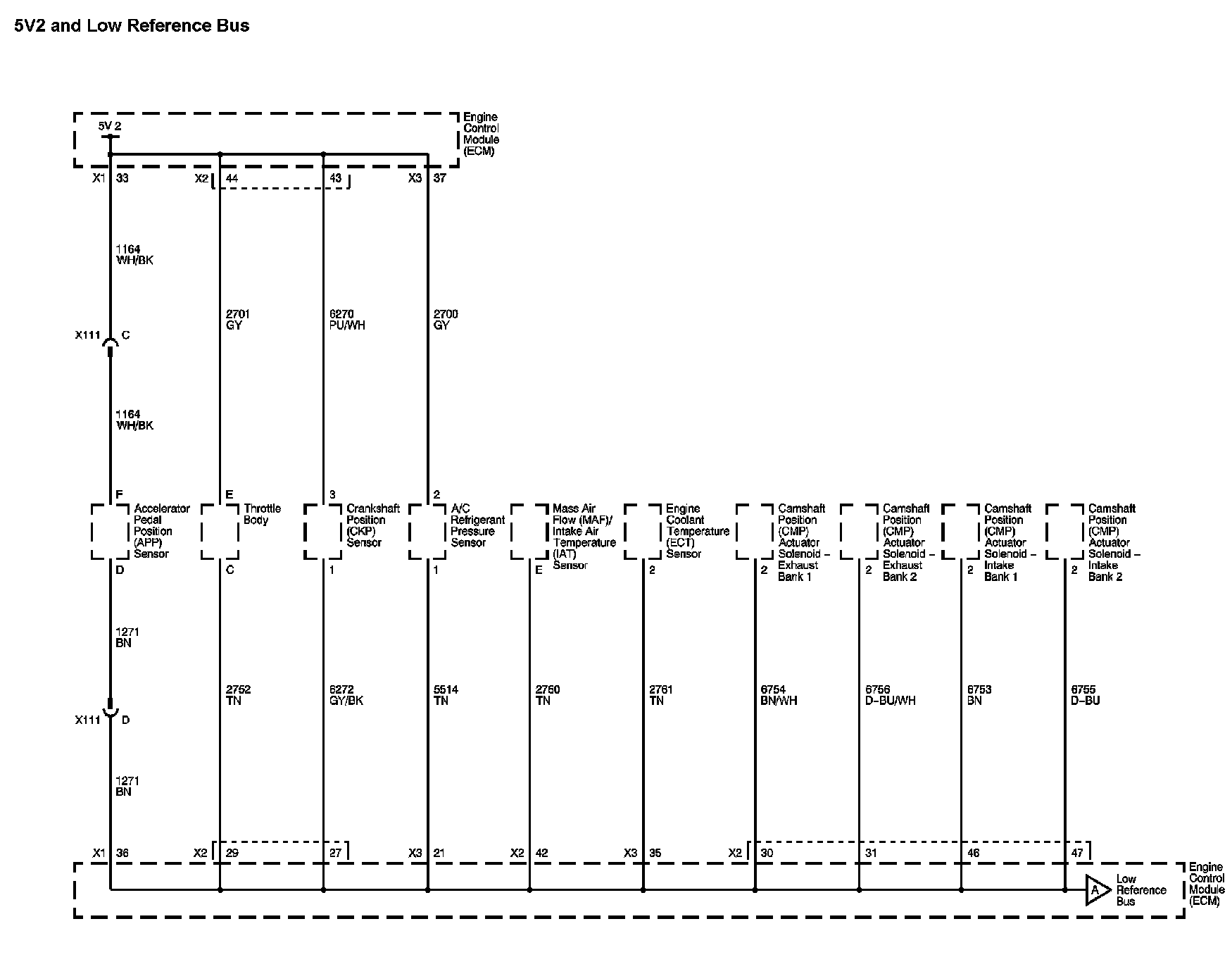

5V2 and Low Reference Bus

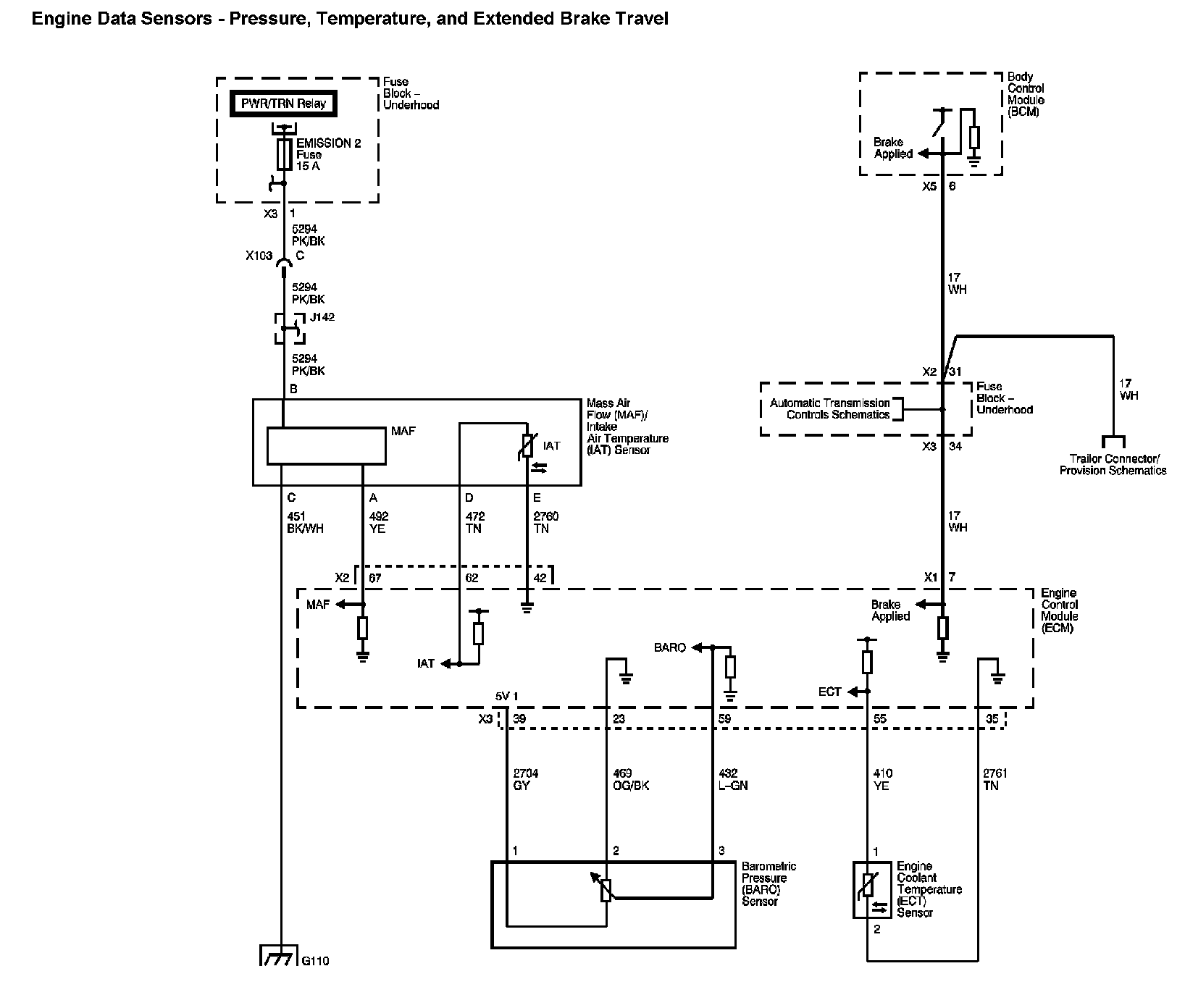

Engine Data Sensors - Pressure, Temperature, and Extended Brake Travel

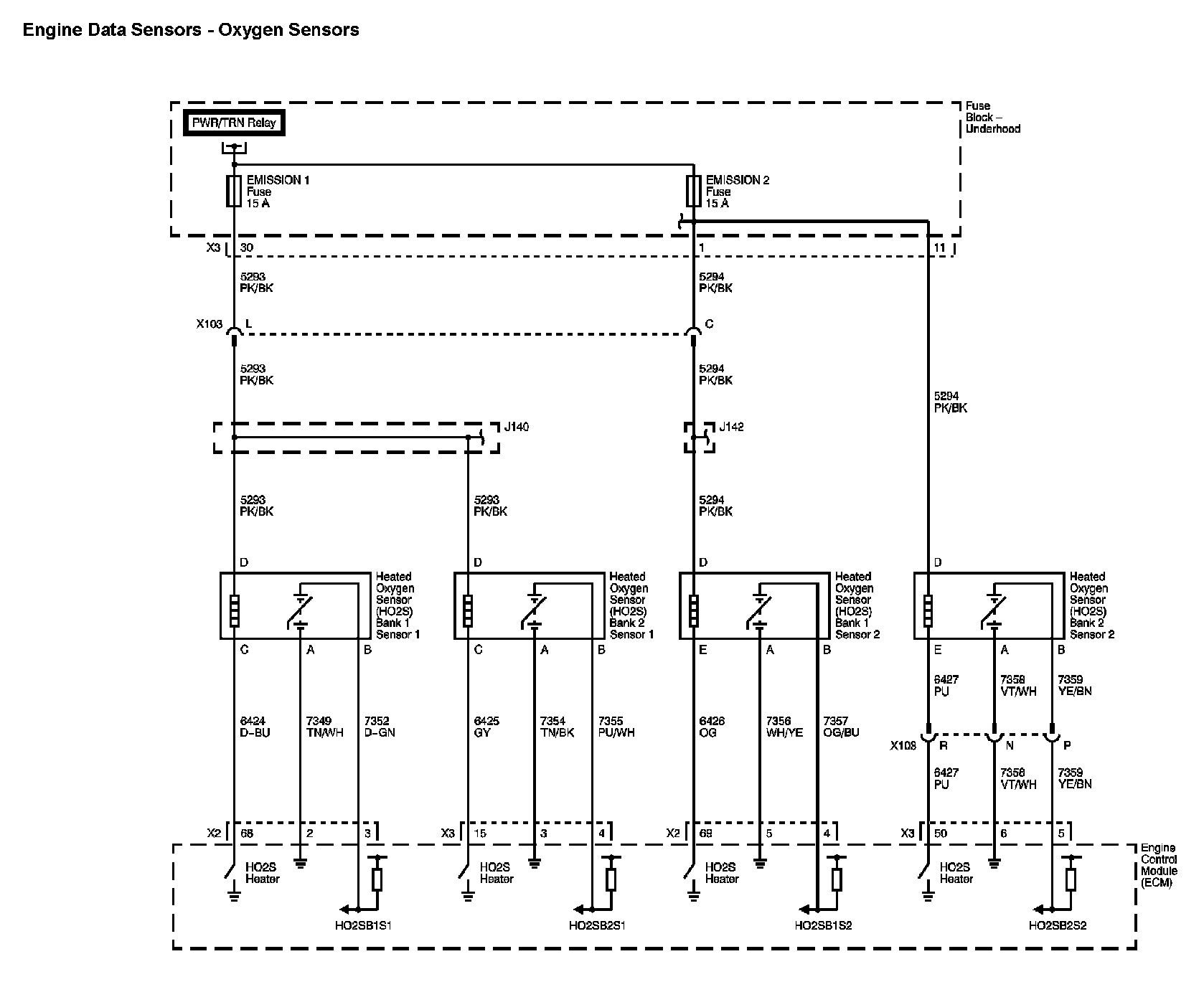

Engine Data Sensors - Oxygen Sensors

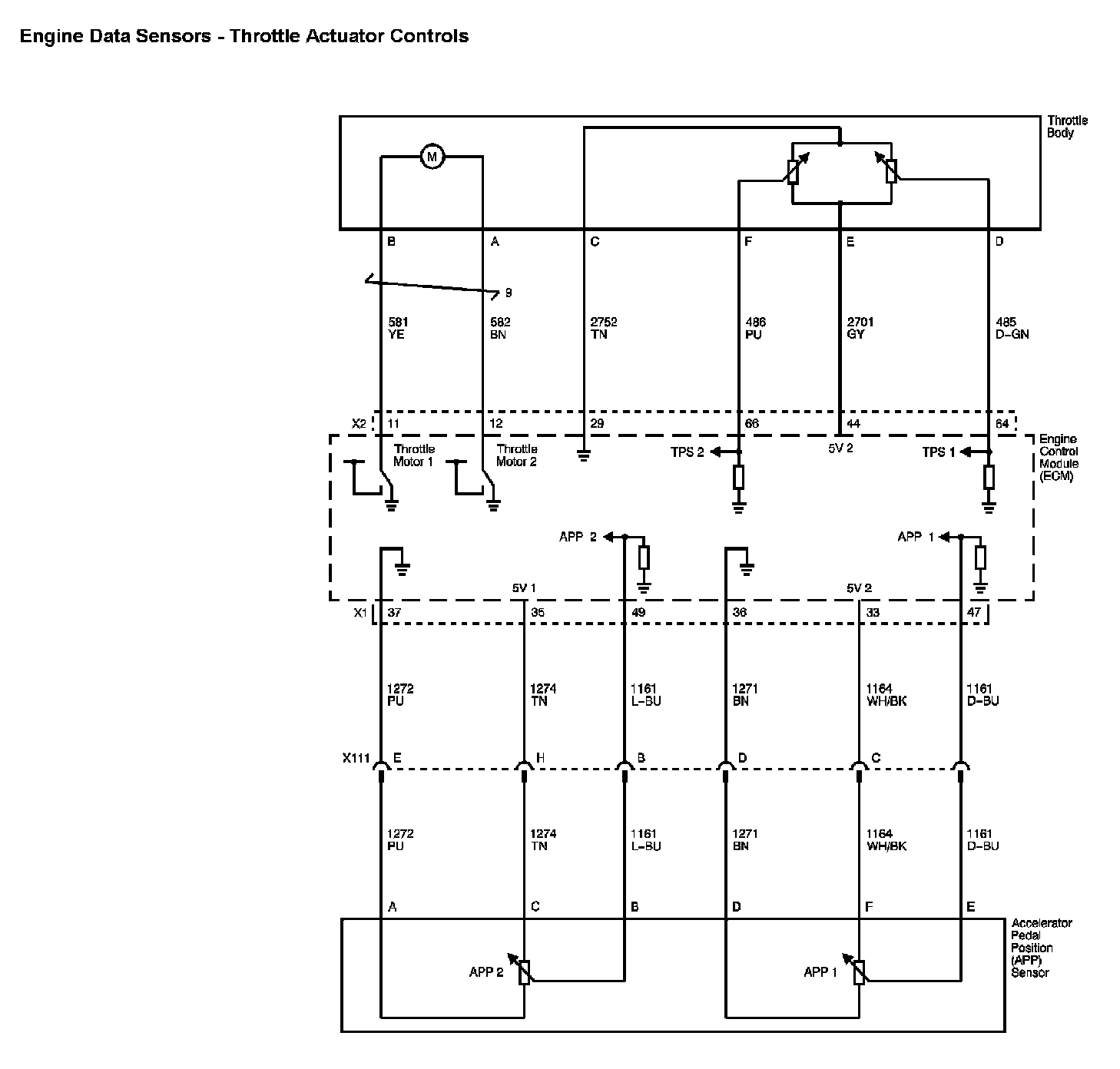

Engine Data Sensors - Throttle Actuator Controls







Ignition Controls - Bank 1 Ignition System

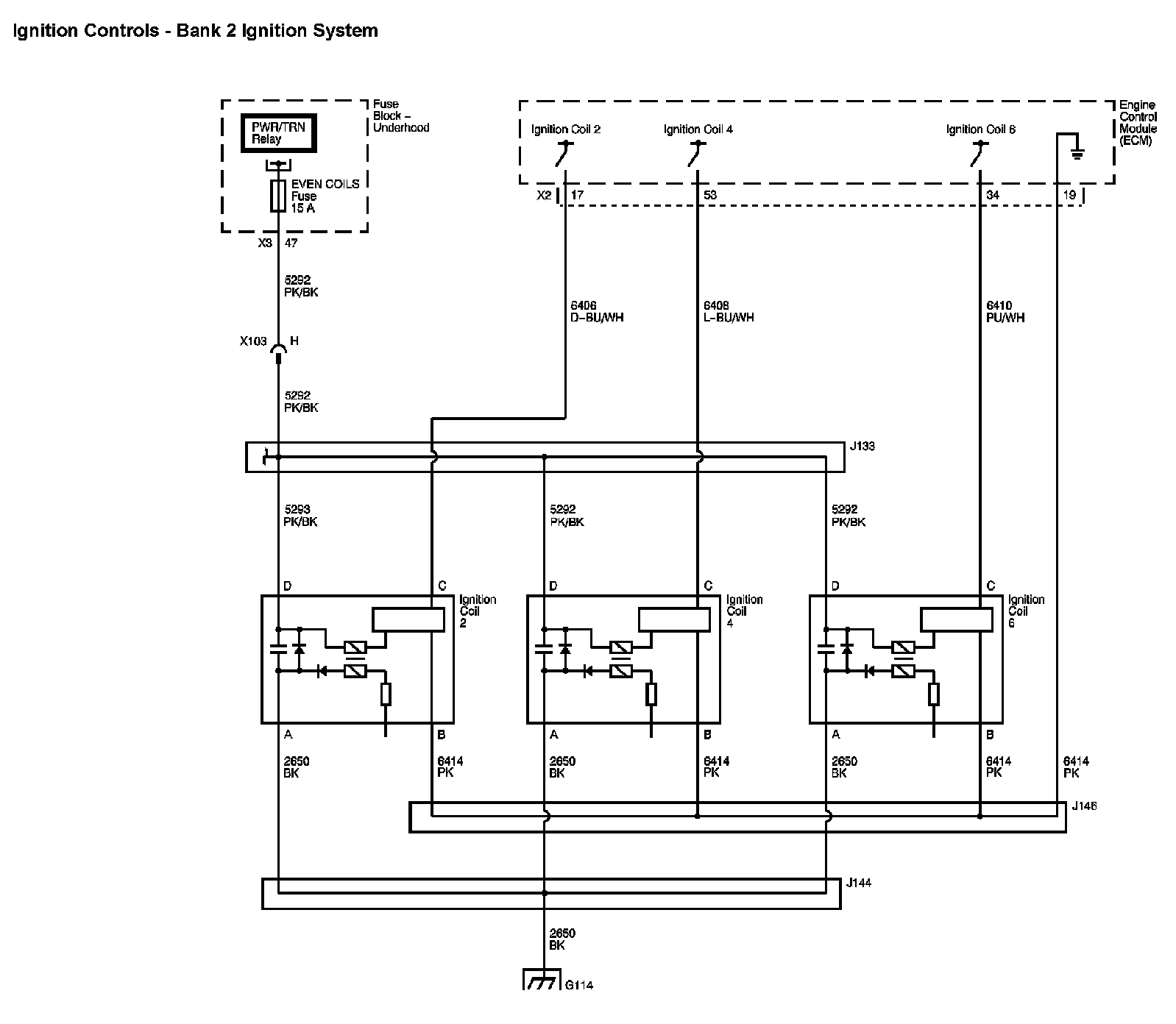

Ignition Controls - Bank 2 Ignition System

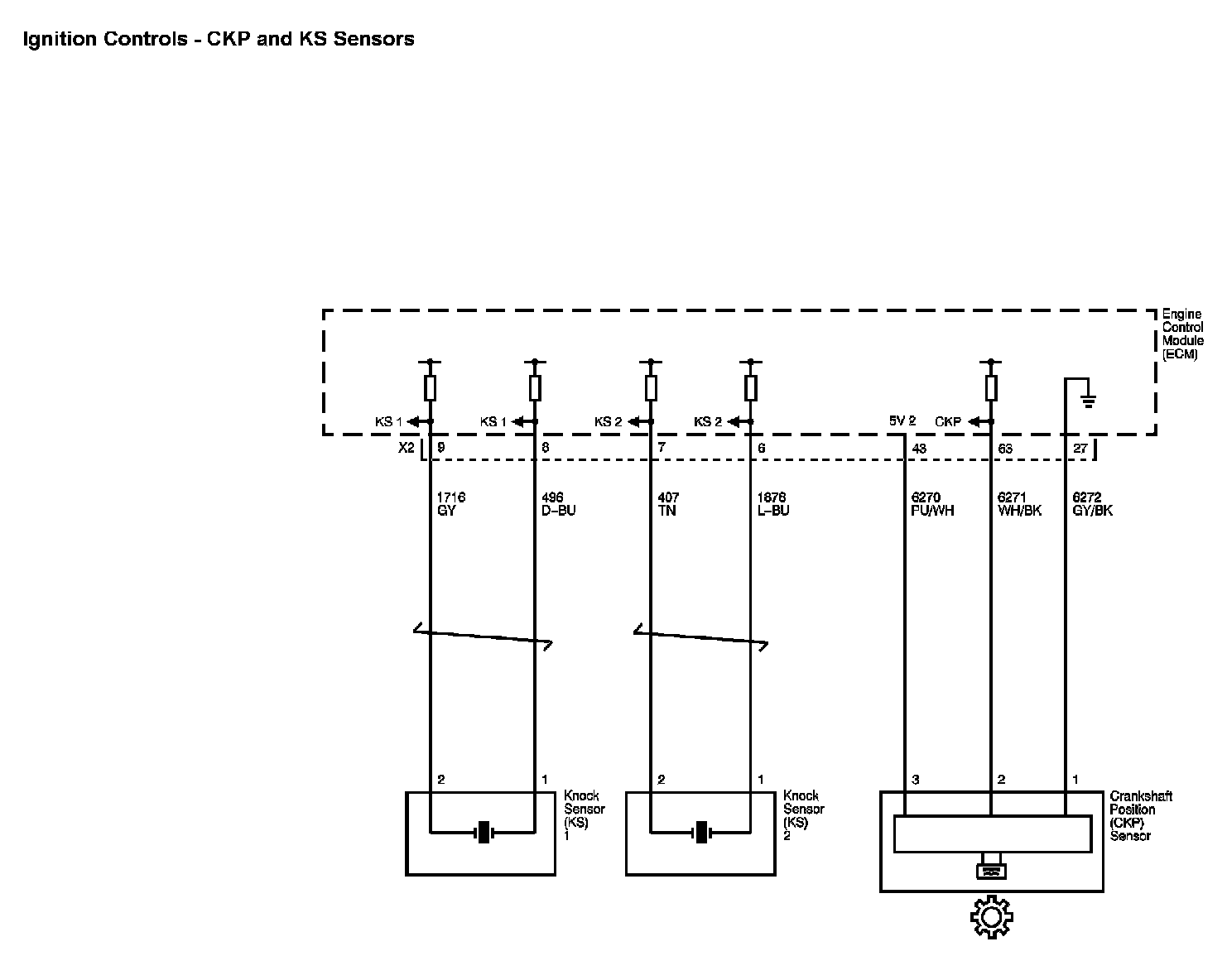

Ignition Controls - CKP and KS Sensors

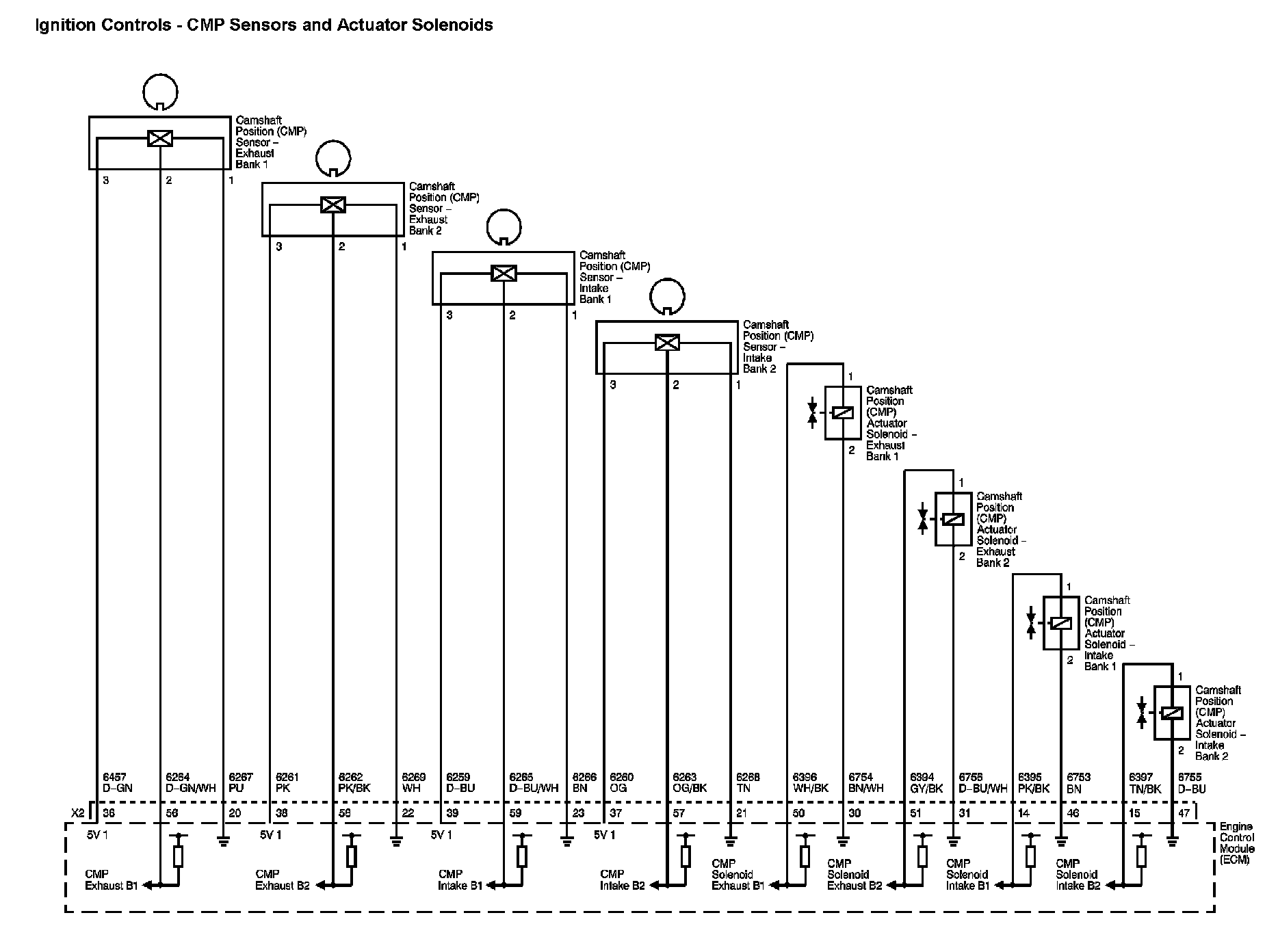

Ignition Controls - CMP Sensors and Actuator Solenoids

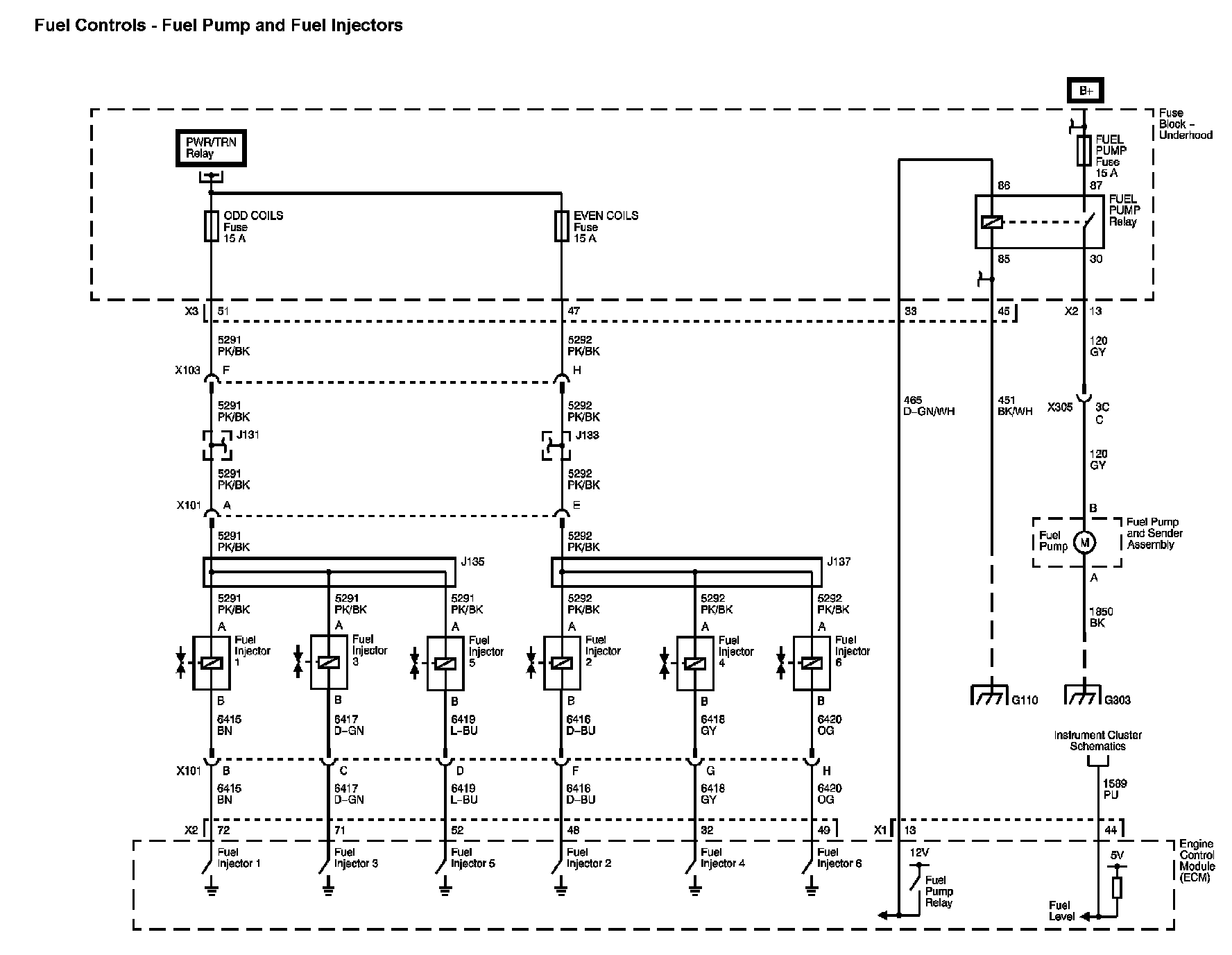

Fuel Controls - Fuel Pump and Fuel Injectors







Fuel Controls - EVAP Controls and Manifold Tuning

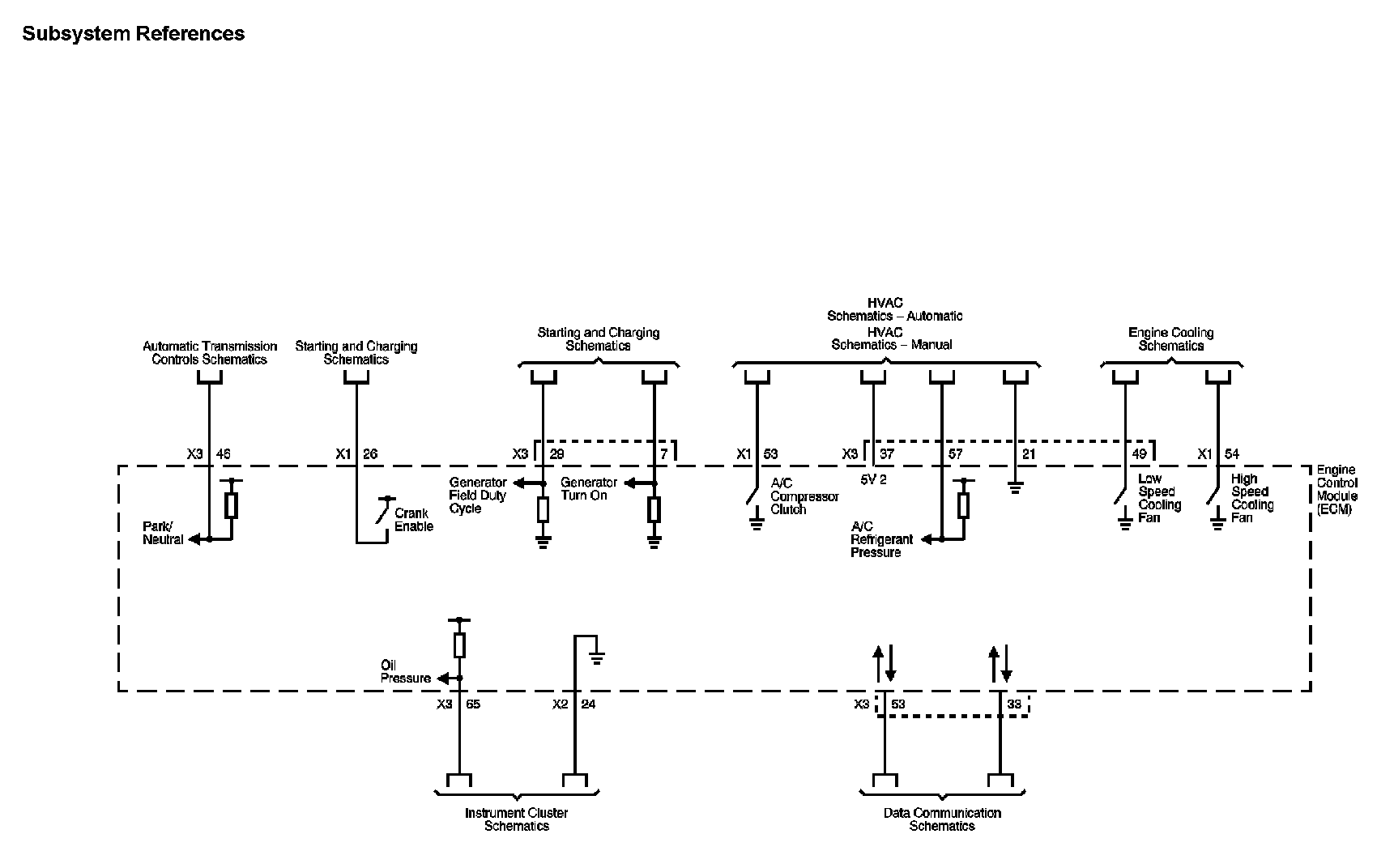

Subsystem References







Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
