Metal Collar Quick Connect Fitting Service

METAL COLLAR QUICK CONNECT FITTING SERVICE

TOOLS REQUIRED
J 37088-A Fuel Line Disconnect Tool Set

REMOVAL PROCEDURE

CAUTION: Refer to Gasoline/Gasoline Vapors Caution.




1. Relieve the fuel system pressure. Refer to the Fuel Pressure Relief (With CH 48027-100) Fuel Pressure Relief (Without CH 48027-100). Fuel Pressure Relief (With CH 48027-100) Fuel Pressure Relief (Without CH 48027-100)

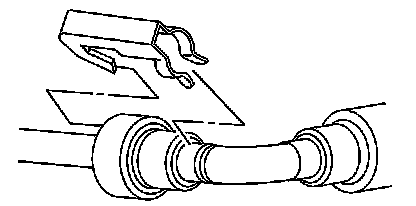

2. Remove the fuel feed line quick connect fitting retainer.




3. CAUTION:
- Refer to Fuel and Evaporative Emission Hose/Pipe Connection Cleaning Notice.
- Refer to Safety Glasses Caution.

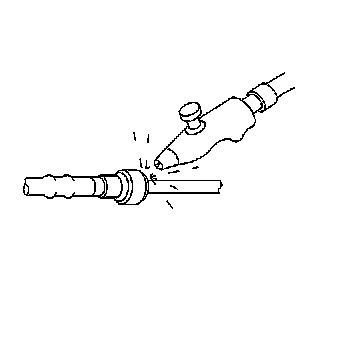

Blow dirt out of the fitting using compressed air.

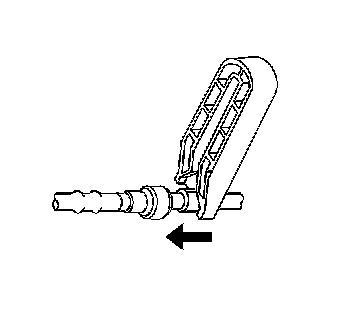

4. Choose the correct tool from the J 37088-A for the size of the fitting. Insert the tool into the female connector, then push inward in order to release the locking tabs.




5. CAUTION: Refer to Relieving Fuel Pressure Caution.

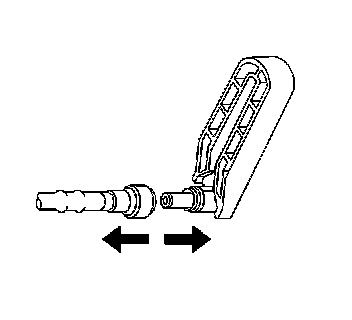

Pull the connection apart.
6. Use a clean shop towel in order to wipe off the male pipe end.
7. Inspect both ends of the fitting for dirt and burrs. Clean or replace the components as required.

INSTALLATION PROCEDURE




1. CAUTION: Refer to Fuel Pipe Fitting Caution.

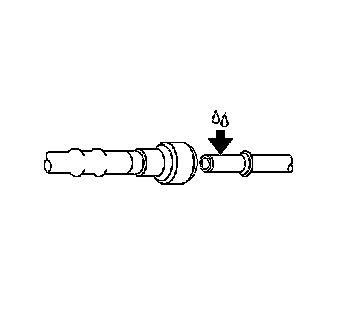

Apply a few drops of clean engine oil to the male pipe end.

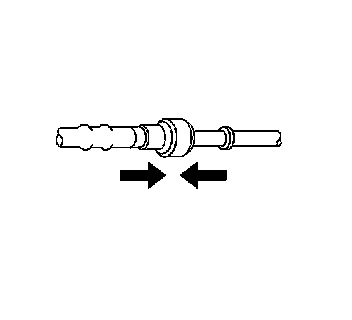

2. Push both sides of the fitting together in order to snap the retaining tabs into place.

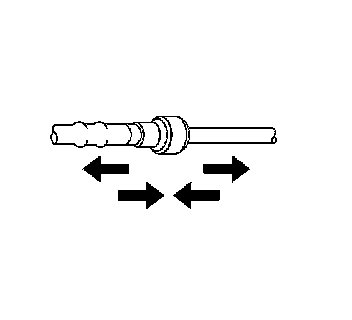

3. Once installed, pull on both sides of the fitting in order to make sure the connection is secure.




4. Install the retainer to the quick-connect fitting.
