Driver Door Module (DDM) X5

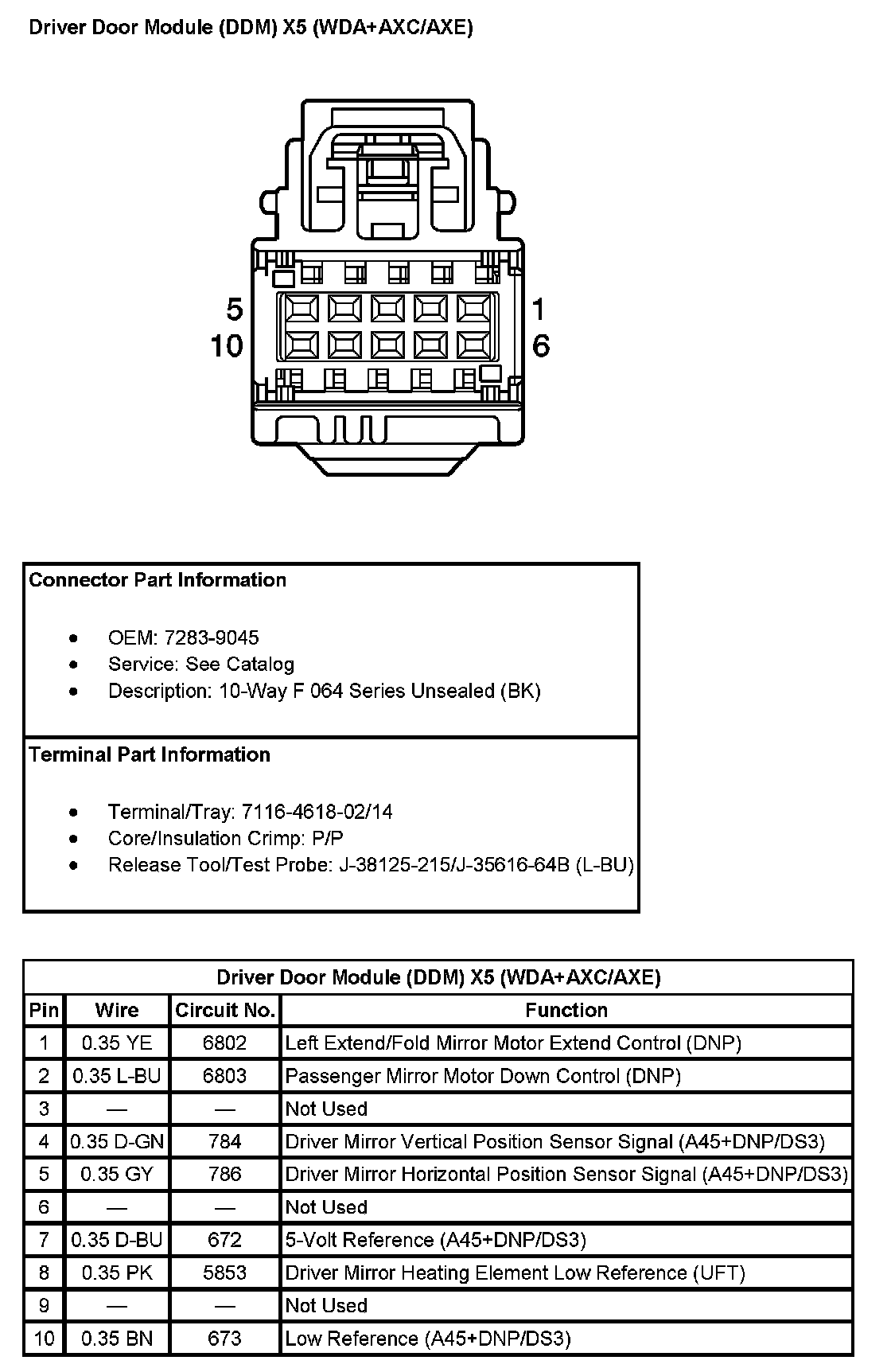

Driver Door Module (DDM) X5 (With RPO Code WDA+AXC / AXE):

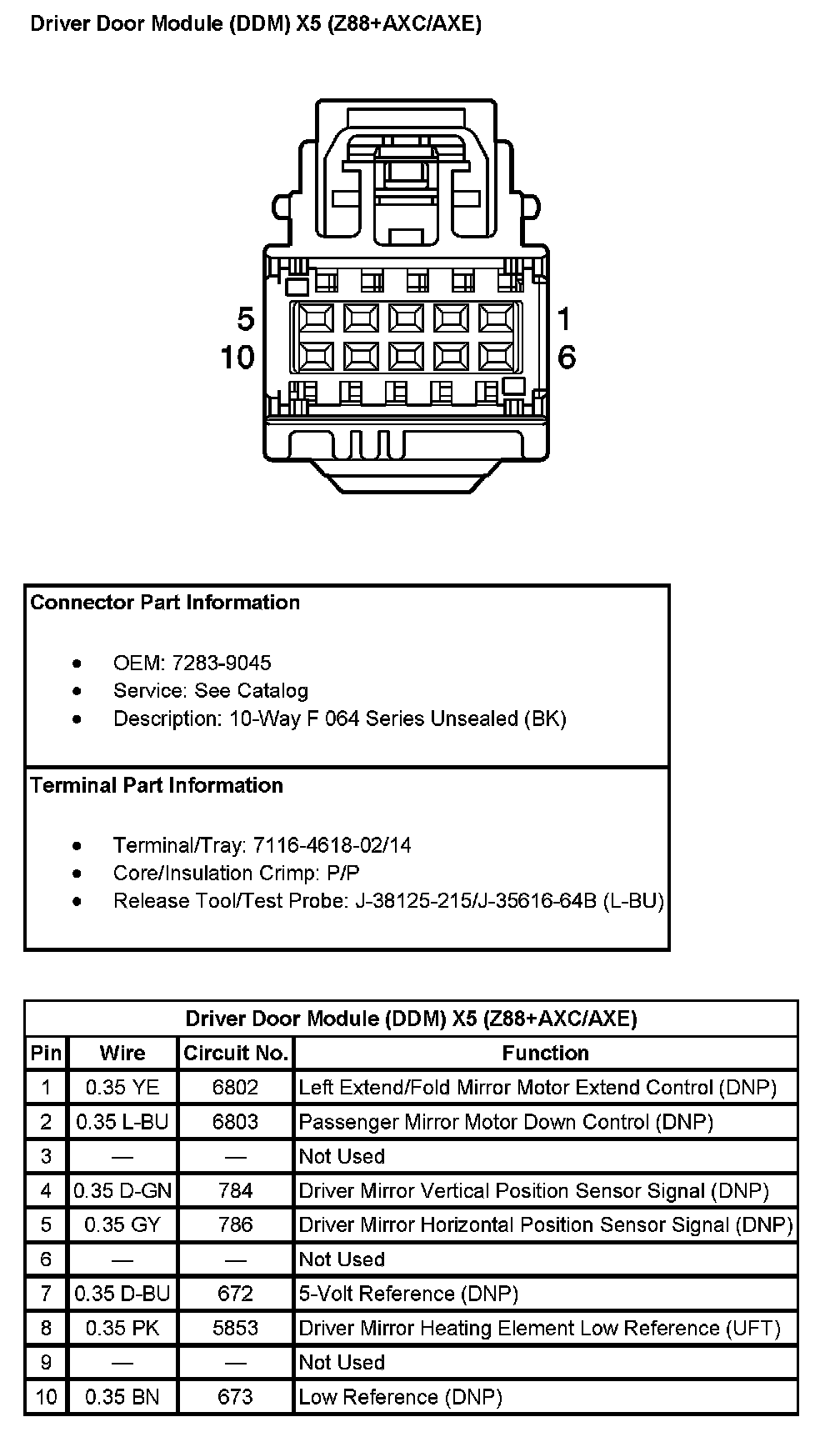

Driver Door Module (DDM) X5 (With RPO Code Z88+AXC / AXE):
