Home >> Saturn >> 2007 >> Outlook V6-3.6L >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Body and Frame >> Door Module >> Diagrams >> Connector Views >> Passenger Door Module (PDM) X2

Passenger Door Module (PDM) X2

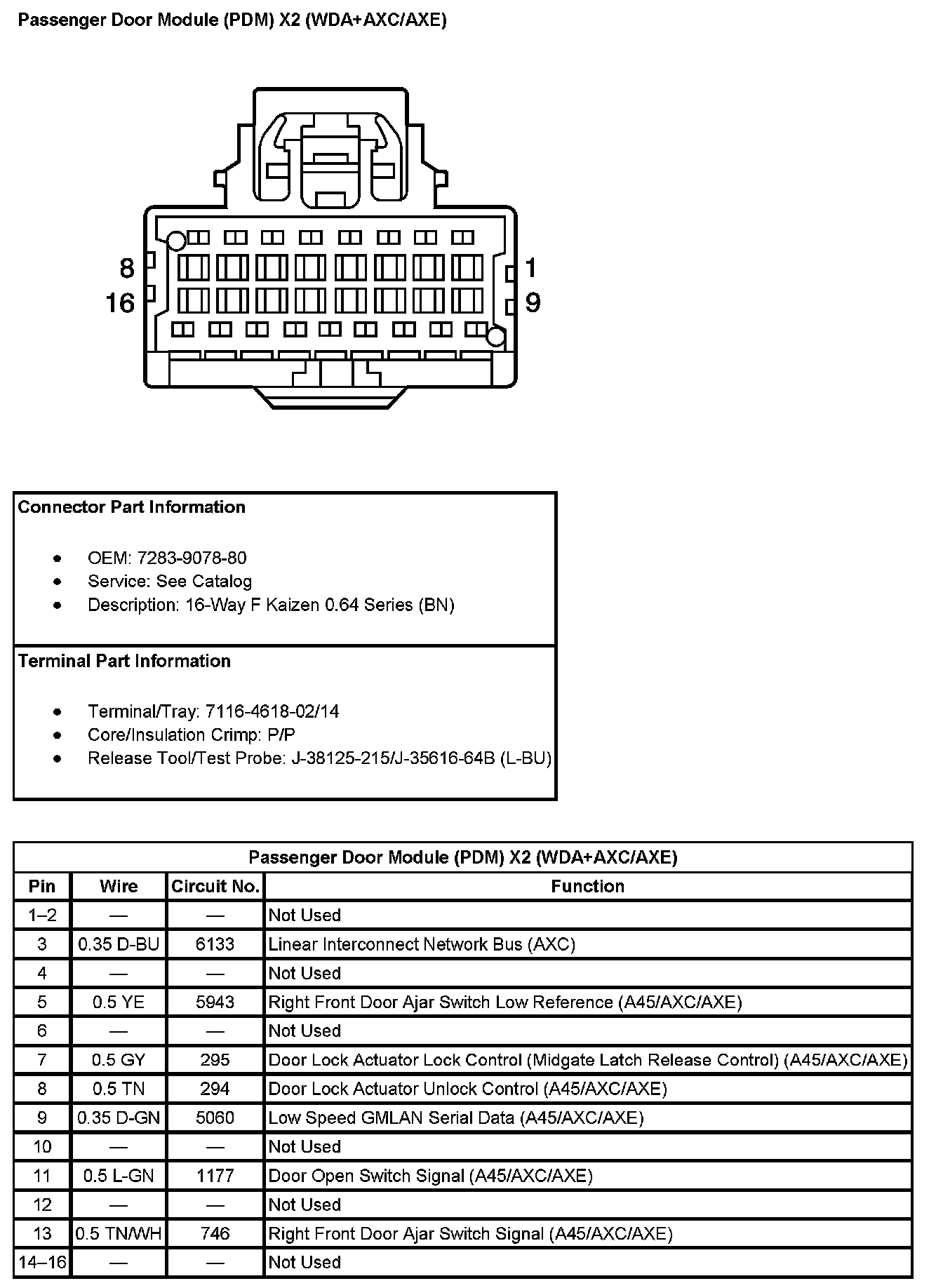

Passenger Door Module (PDM) X2 (With RPO Code WDA+AXC / AXE):

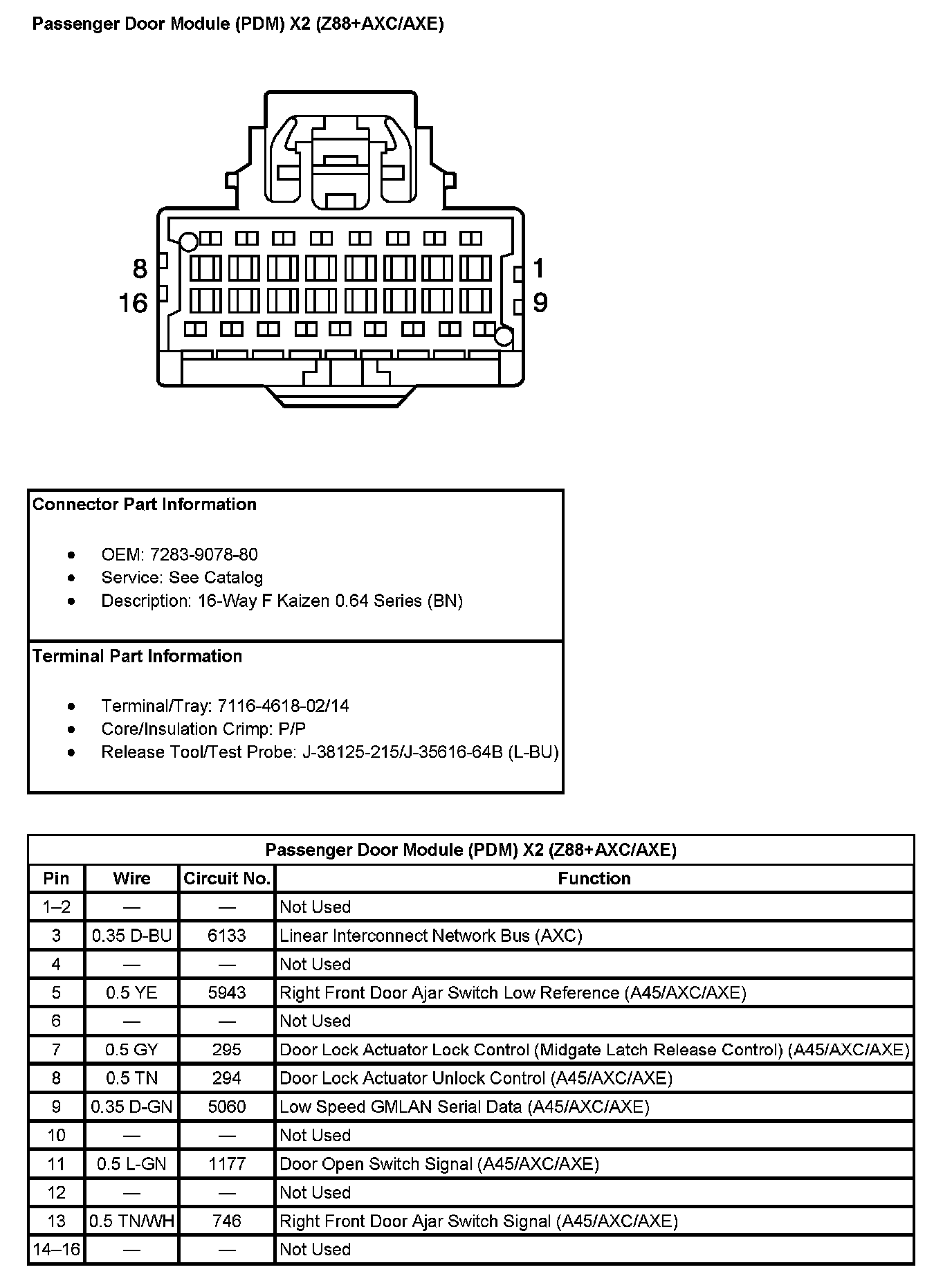

Passenger Door Module (PDM) X2 (With RPO Code Z88+AXC / AXE):
