Moveable Window Diagrams (With RPO Code AXA)

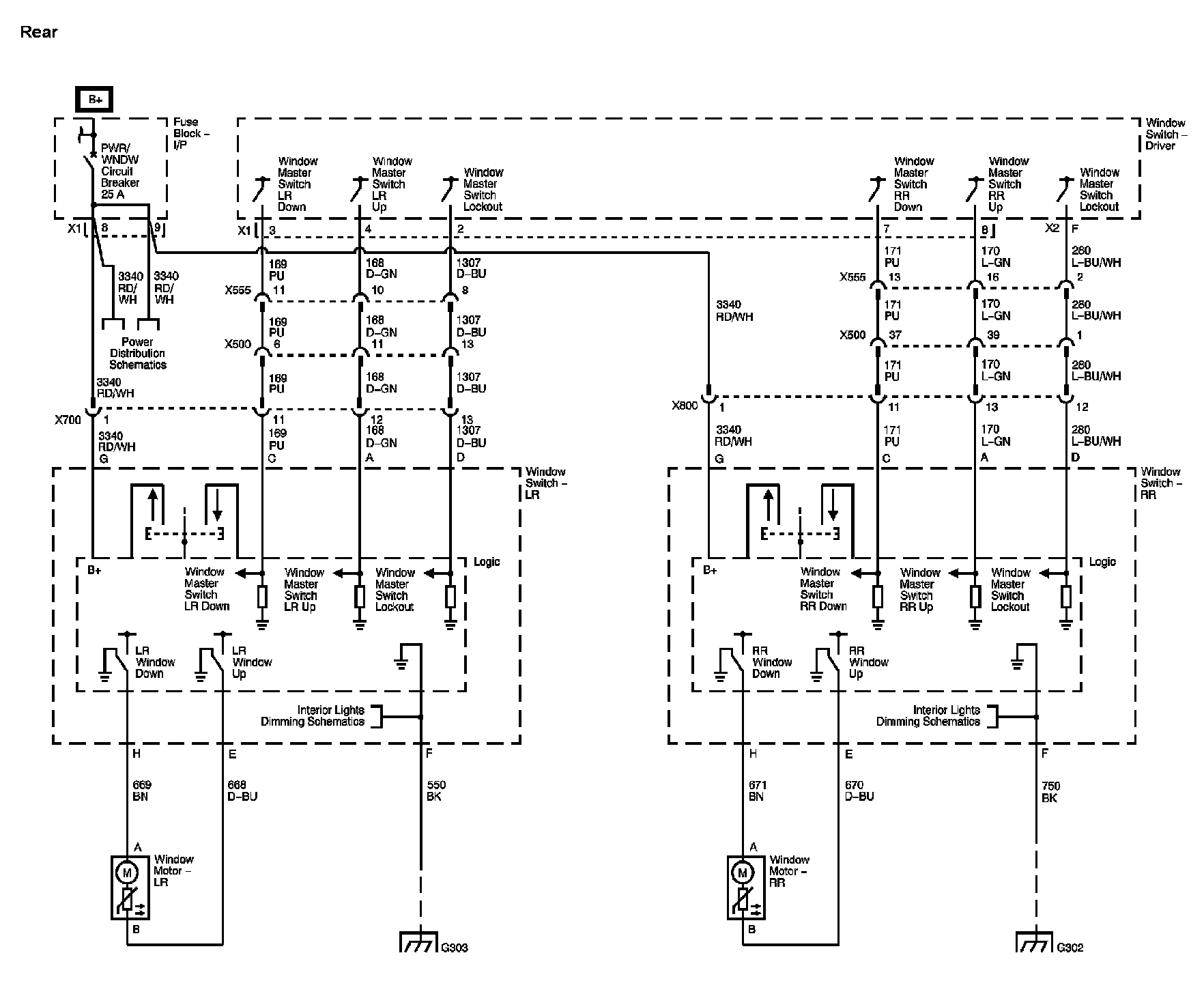

Moveable Window (With RPO Code AXA) Diagram 1:

Moveable Window (With RPO Code AXA) Diagram 2:

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
