Seat Temperature Element: Locations

Heated/Cooled Seat Component Views

Under the Passenger Seat




1 - Seat Belt Switch
2 - Inflatable Restraint Passenger Presence System (PPS) Module
3 - Heated Seat Module (KA1)
4 - Inflatable Restraint Passenger Presence System (PPS) Sensor
5 - Passenger Seat

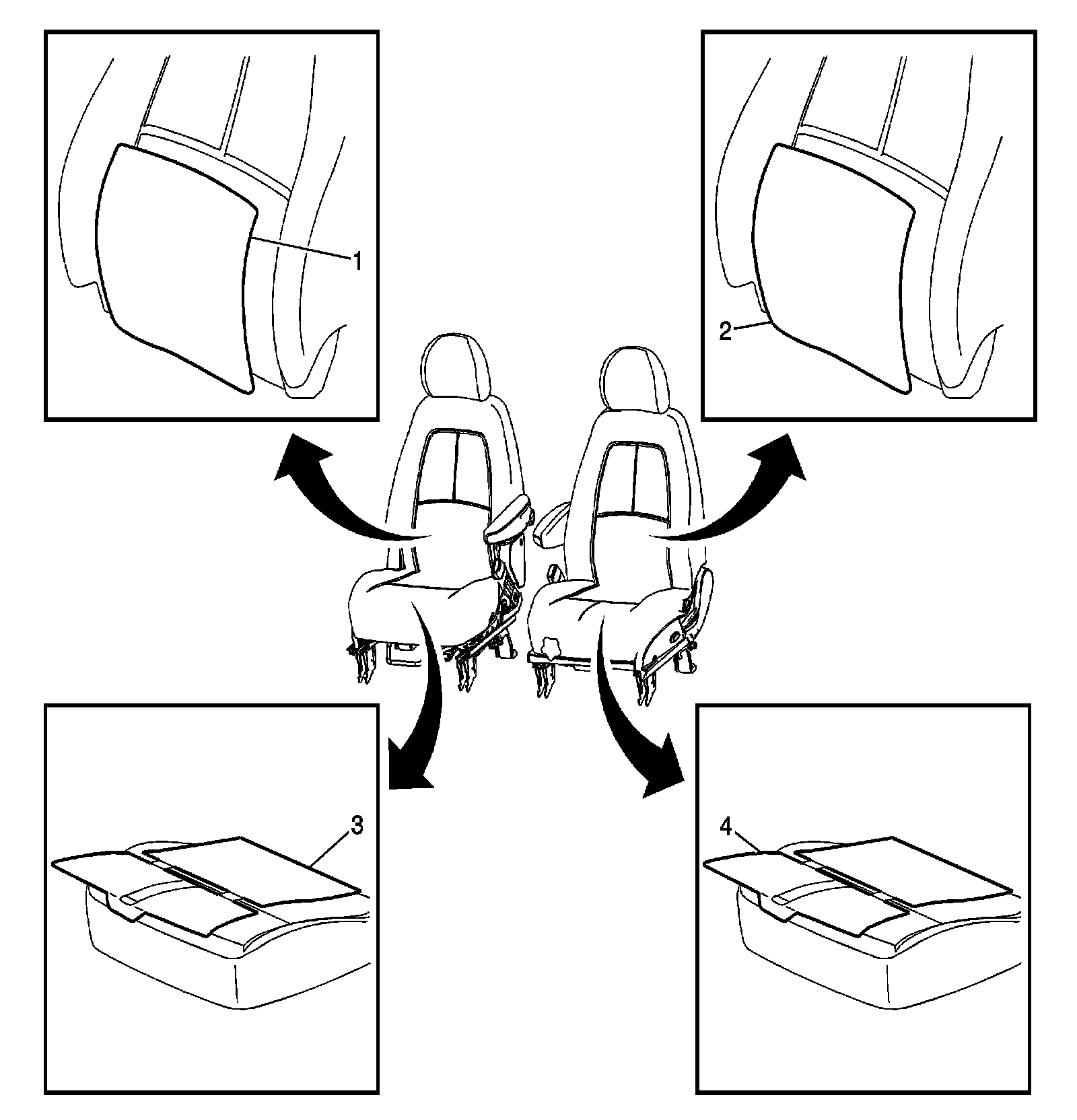

Heated Seat Elements




1 - Heated Seat Back - Front Passenger (KA1)
2 - Heated Seat Back - Driver (KA1)
3 - Heated Seat Cushion - Driver (KA1)
4 - Heated Seat Cushion - Front Passenger (KA1)
