Defroster Grille Replacement

Defroster Grille Replacement

Removal Procedure




1. Remove the instrument panel (I/P) upper trim panel.

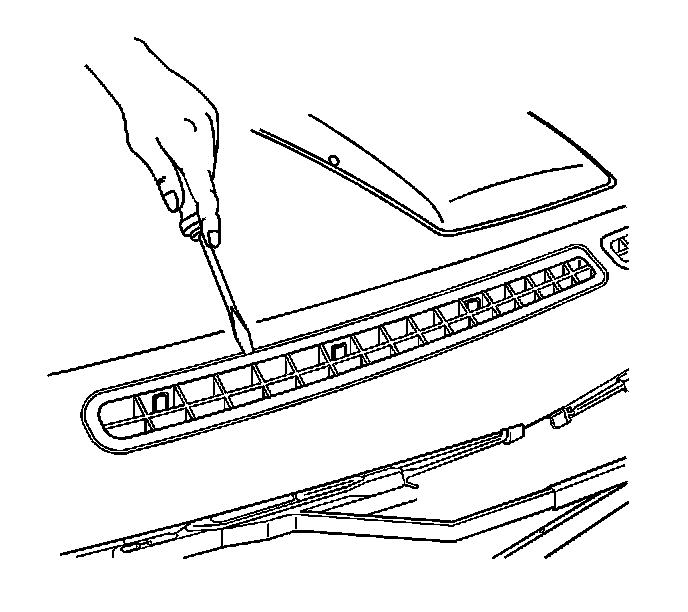

2. Depress the tabs on the rear side of the defroster grille and remove the grille from the I/P trim pad.

Installation Procedure




1. Position the defroster grille in the I/P trim pad and push to install the grille within the tabs.
2. Install the I/P upper trim panel.
