Shift Control Replacement

Shift Control Replacement

Removal Procedure




1. Disconnect the control assembly boot trim from the trim bezel.
2. Gently pry up the window switch trim bezel.




3. Disconnect the electrical connectors from the window switch trim bezel and remove the bezel.




4. Disconnect the shift cables from the shift cable adjusters.
5. Disconnect the shift cables from the control lever assembly housing by pressing the retainers together and lifting upward.

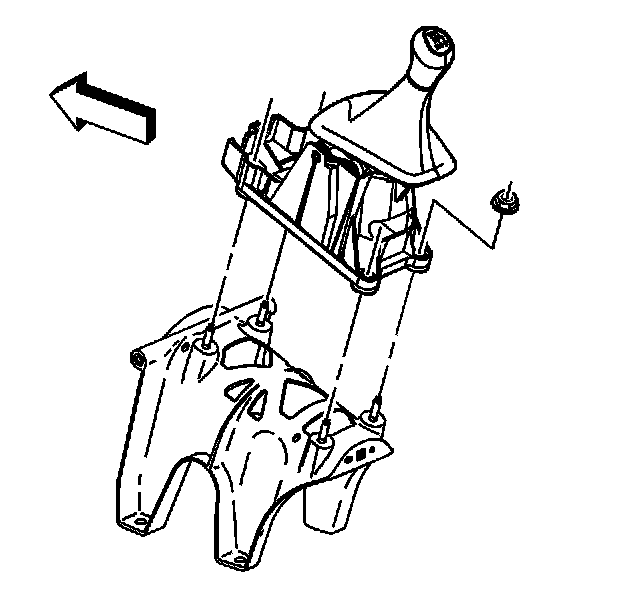

6. Remove the nuts retaining the control lever assembly to the control lever assembly bracket.

Installation Procedure




1. Install the control lever assembly to the control lever assembly bracket.

Notice: Refer to Fastener Notice.

2. Install the control lever nuts.

Tighten the nuts to 25 N.m (18 lb ft).




3. Connect the shift cables to the control lever assembly.
4. With the shift cable ends in the adjusters, adjust the cables by pushing the shifter neutral lock clip. Move the shifter slightly to center the lock clip.

Important: Ensure the transaxle is in NEUTRAL.

5. Press and lock the shift cable retainers.
6. Pull the shifter neutral lock clip to the original position.




7. Connect the electrical connectors.
8. Connect the shift cables to the control lever assembly.
9. Install the trim bezel.
10. Install the control assembly boot to the trim bezel.
