Underhood Fuse Block
Electrical Center Identification Views
Underhood Fuse Block Top View
Underhood Fuse Block Bottom View
Fuse Block - Underhood C1
Fuse Block - Underhood C1 (Pin A1 To E2):
Fuse Block - Underhood C1 (Pin E3 To F12):
Fuse Block - Underhood C2 (L61)

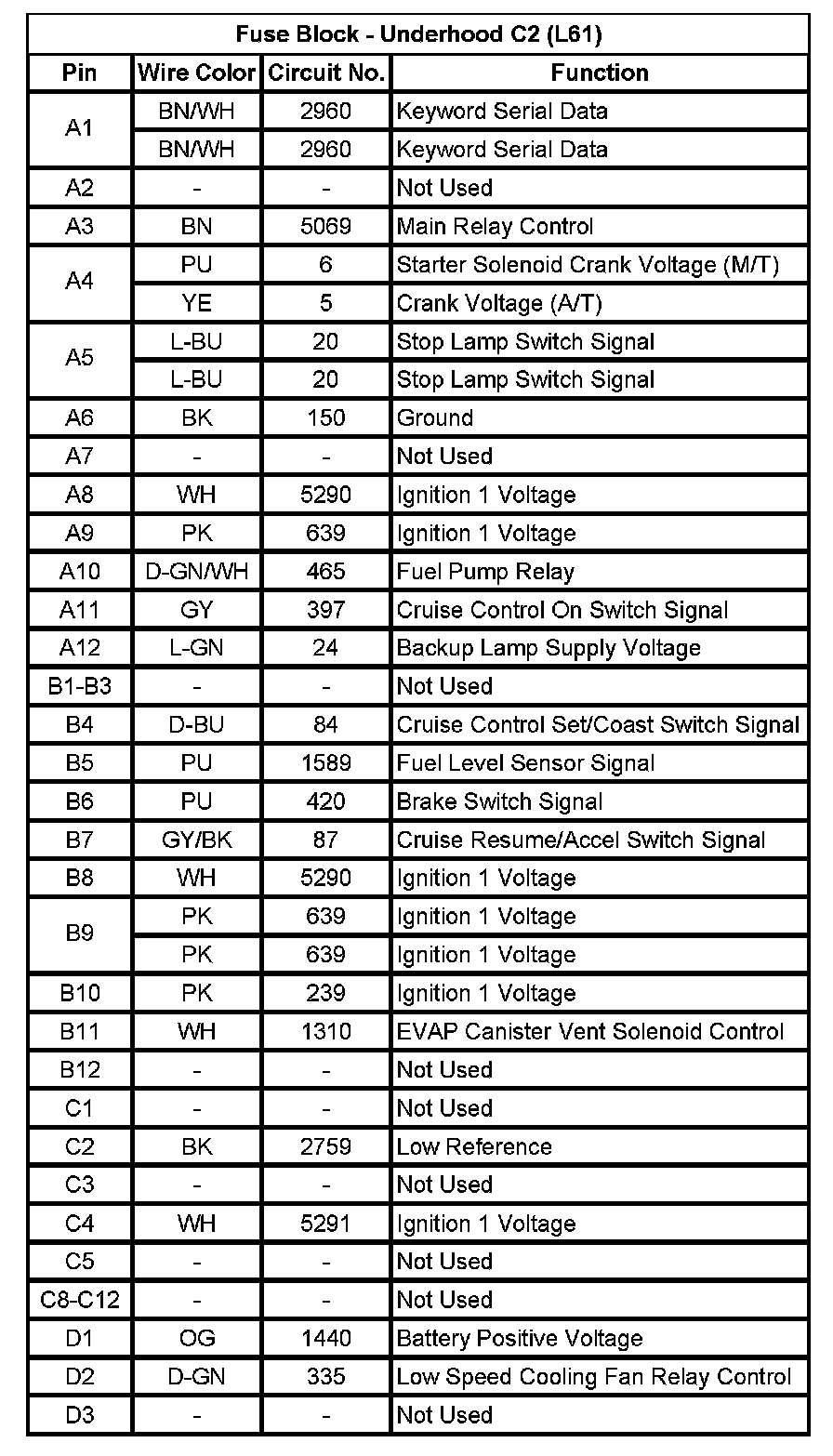

Fuse Block - Underhood C2 (L61) (Pin A1 To D3):

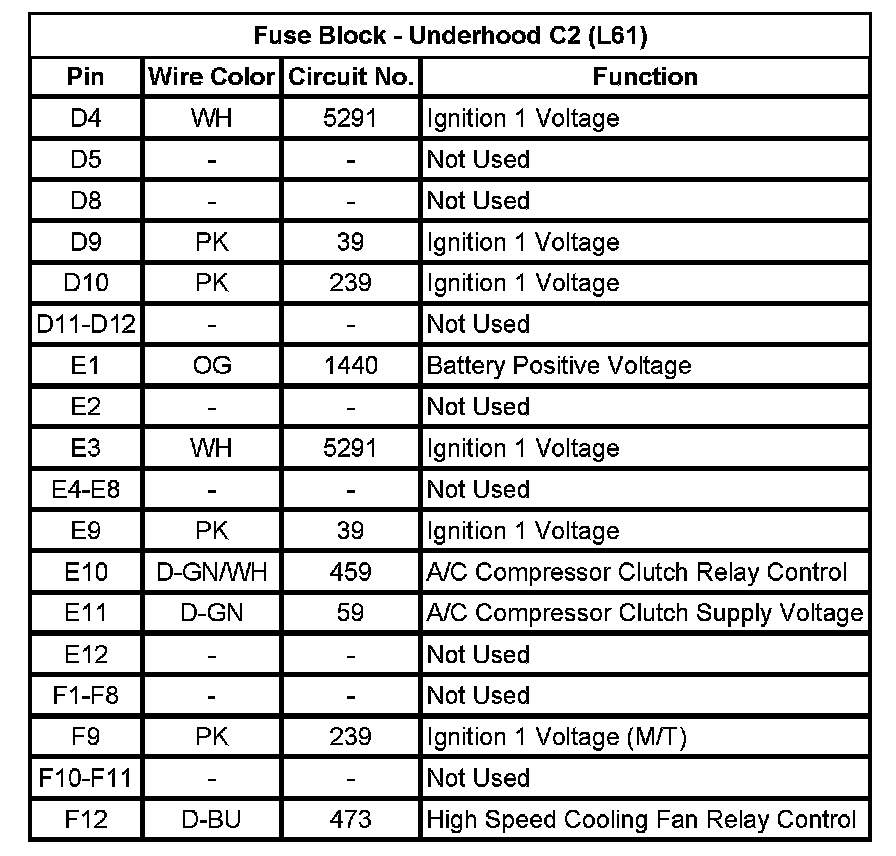

Fuse Block - Underhood C2 (L61) (Pin D4 To F12):
Fuse Block - Underhood C3 (L61)
Fuse Block - Underhood C3 (L61) (Pin A1 To D2):

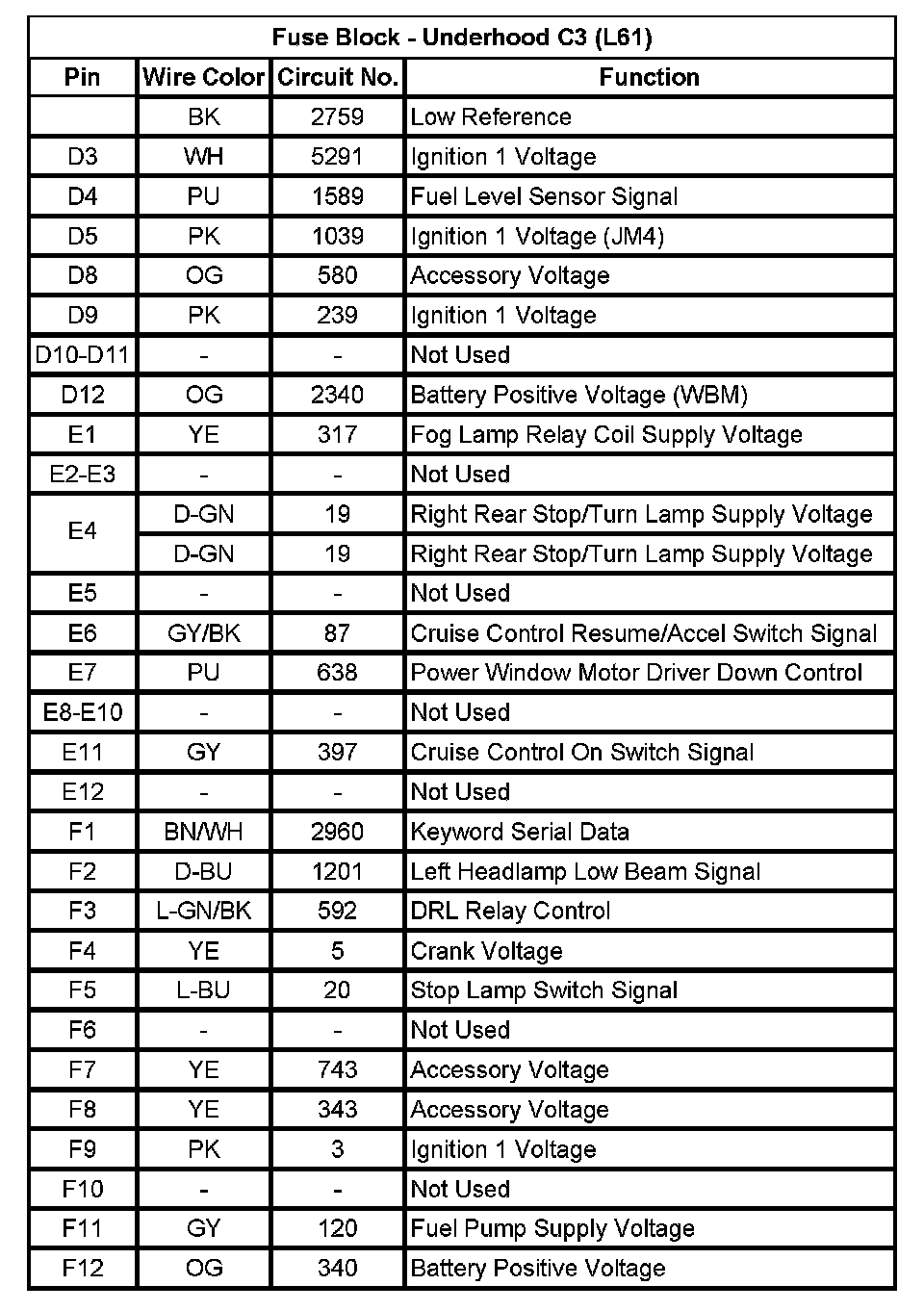

Fuse Block - Underhood C3 (L61) (Pin D3 To F12):

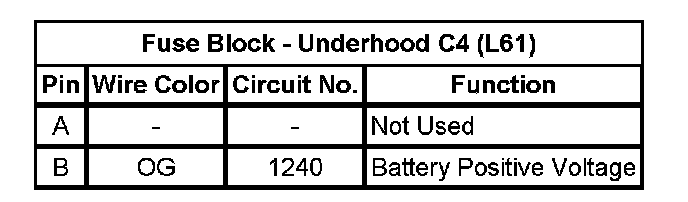

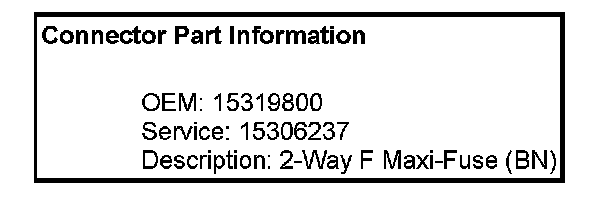

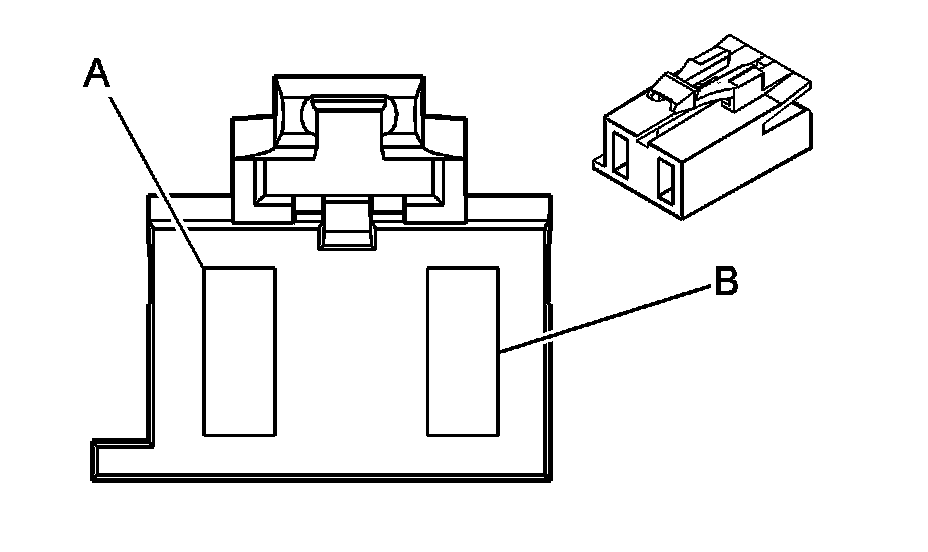

Fuse Block - Underhood C4 (L61)
Fuse Block - Underhood C5
Fuse Block - Underhood C6
Power Steering Control Module - C1:
